Bolt Lock for Door,magnetic Bolt Lock,electric Solenoid Bolt
Bolt lock for door,magnetic bolt lock,electric solenoid bolt
PRODUCT DESCRIPTION

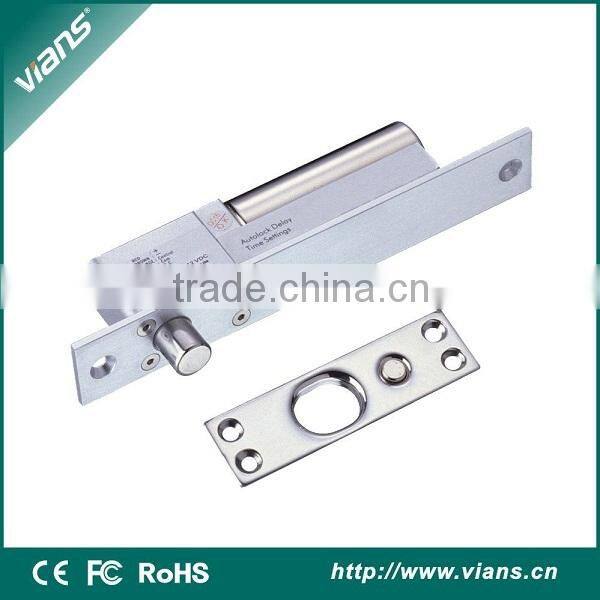

An Electric Drop Bolt is a motor or solenoid actuated symmetrical dead-bolt mechanism, used for specific applications where Electric Strikes and Electromagnetic Locks cannot be used, such as double action 180 degree swing through or sliding doors. In many cases Electric Drop Bolts are used as additional or secondary locking device. The locking status and door status of the drop bolt can be remotely monitored.

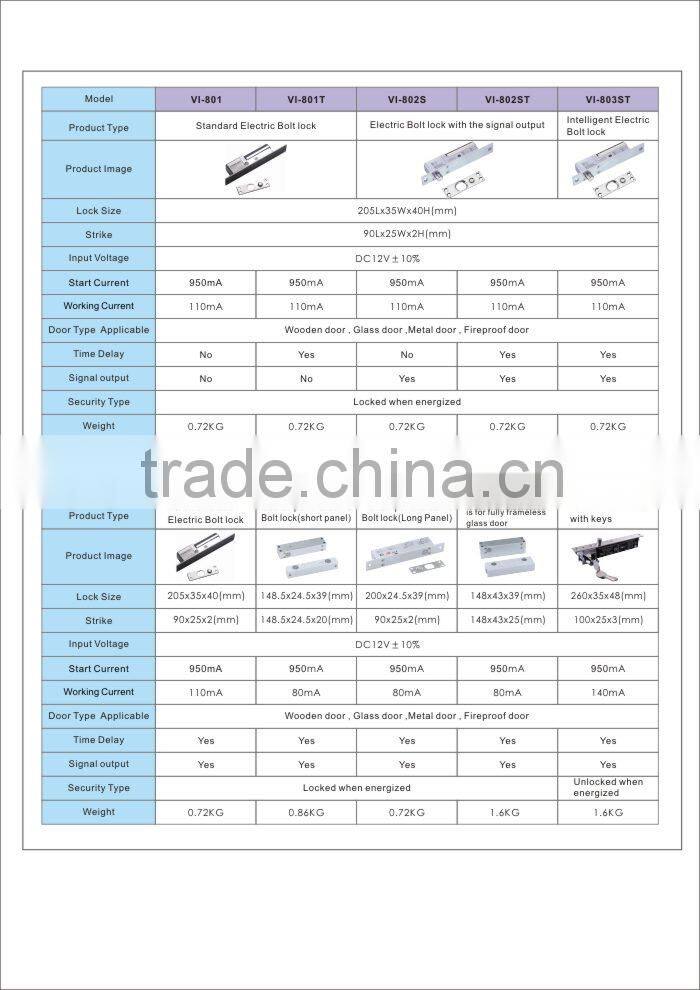

TECHNICAL DETAILS
Item Number |
VI-801T |
Working Mode |
Fail Safe |
Input Voltage |
12VDC |
Start up Current |
950mA |
Operating Current |
120mA |
Time Delay |
0,3,6,9 second |
Lock Dimension (L x W x H) |
205x35x40mm 8"x1.38"x1.58" |
Strike Size (L x W x H) |
90x25x2mm |
Certification |
CE and UL |

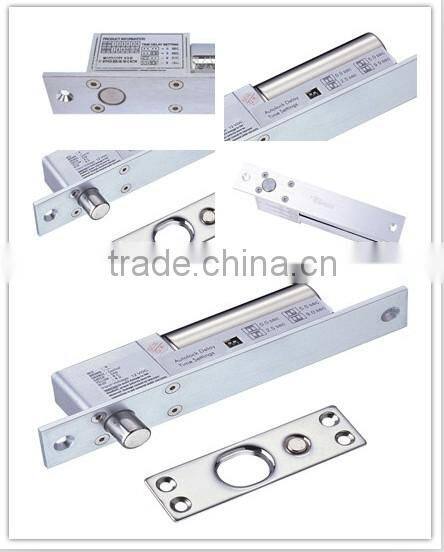

PRODUCT FEATURES
- Internal control circuits protect drop bolt pin from damage
- Power To Lock (Fail Safe)
- Auto lock function
- Built-in varistor (MOV) for surge protection
- Time delay setting at 0/3/6/9 secs
- 3 year warranty

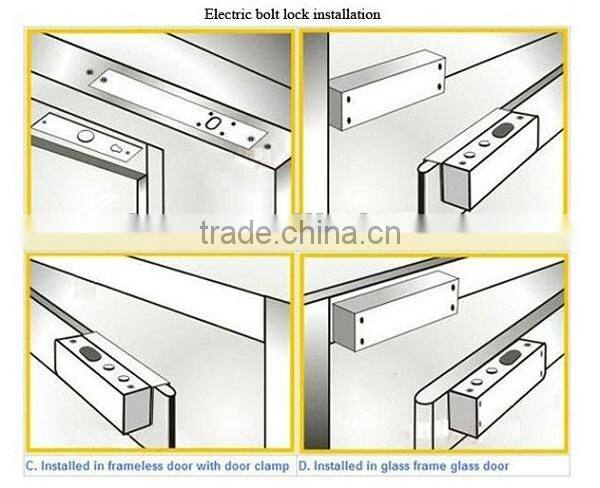

INSTALLATION DRAWING

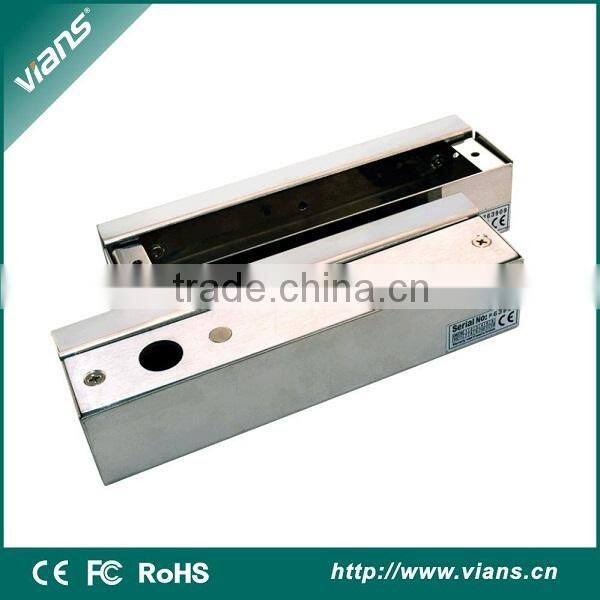

ELECTRONIC BOLT BRACKET
RELATED PRODUCTS
APPROVAL CERTIFICATION

VIANS Electronic Lock Co.,Ltd is one of the leading professional electric locks manufacturers in china, which was established in 2007. we are dedicated to Magnetic Lock, Electric Bolt, Electric Strike, Electric rim lock, Magnetic Lock Bracket, Automatic door opener, Switch and so on products.
