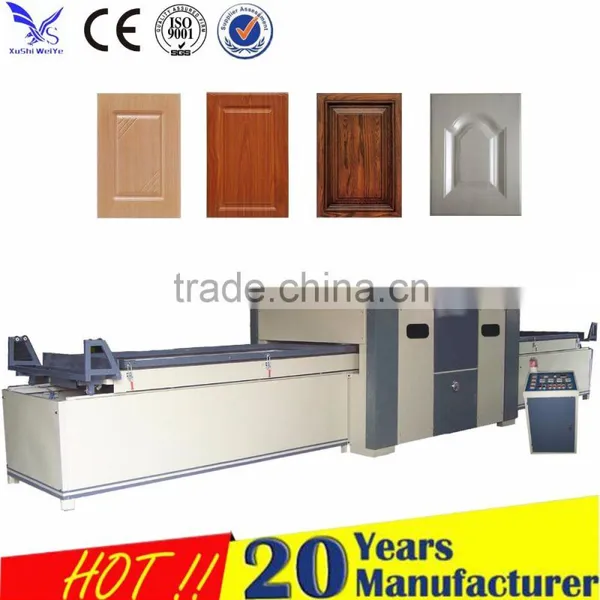

kitchen cabinet making machines
Brief introduction Of kitchen cabinet making machines
1.Two movable working table and a fixed heating box system are available.
working table could move and adsorb automatic,of course,it can be operated
manually.
2. The cold system is equipped,rapid cooling,rapid prototyping.
3. The working table is special handled,it can support very high temperature,
corrosion resisting.
4.Adopt to advanced vacuum technology,and the dual vacuum tank are
available,high vacuum.
5.Temperature controller is equipped so that it can set up and Adjust the temperature easily.
6.To the heating system,we select of far infrared heating device and aluminum
insulation system,and besides them,the other with auxiliary heating system is
available,secondary heating.
7.The machine can be used for furniture,kitchen cabinets, doors,audio,crafts
and other heterotypic material, it can process the pvc that the thickness
within 0.5mm.
The mainly parameter of kitchen cabinet making machines
| Working table size | 2600*1300*80*2 mm |
| external dimensions | 9900*1950*1700 mm |
| Max. processing height | 80mm |
| material thickness | 0.01-0.5mm |
| Max vacuum press | -0.1Mpa |
| total power | 20KW |
| Vacuum pump | 3.0kw XD-63m³/h of horizontal pump |
| temperature operation range | 150-180 degree |
| Highest temperature | 300 degree |
| Weight | 2000kgs |
Machine details and machine sample display
Vacuum pump

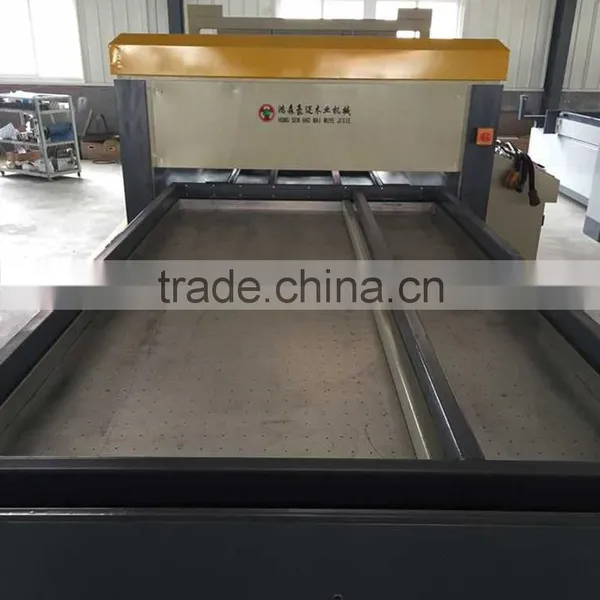

Heating area
Operation board
Vacuum Dial
Inner of electric cabinet

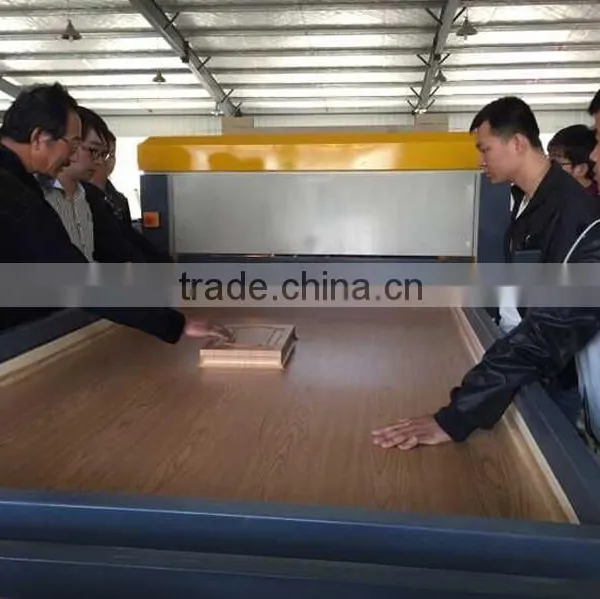

Sample
Thanks for following shipping company support,so that we can delivery the
goods in time.
We have different types of the vacuum laminator, and also can make out as customer. Please feel free to contact me if we can be of any assistance !
