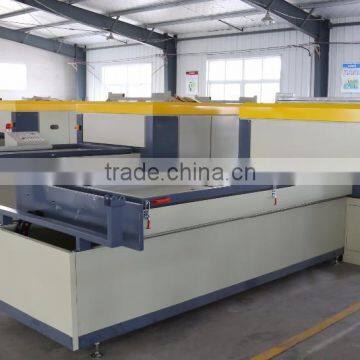

Photos of the vacuum membrane press machine:
Specifactions of vacuum membrane press machine
1.Two automatica movable workbench driving by motors.
2. the workbench surface is made of high strength steel plate which is secondary hardening treatment and non-deformation until 200℃ in an hour.
3. There are 1 vacuum pumps and 2 gas holders can vacuumize quickly,the maximum ultimate vacuum is -0.1 mpa.
4. The heating pipes are metal in good quality,reheating by aluminum plate,and bottom-heating,surrounded by auxiliary heating,evenly, there isnot orange peel lines, bubble, etc.in the surface, and heating box uses the sole insulation technology, thermal insulation and prevent accidental burns.
5.This machine is widely used in cabinet doors, wardrobe,wood composite door etc, can also be used to lamiante sliding door with soft package or wooden veneer (with silicon sheet), especially for hot stamping and heat transfer processing.
| Item | HSHM2500YM | |||||||
| Dimension(L*W*H) | 9900*1950*1700mm | |||||||
| Work table size | 2560*1250*60mm *2pcs | |||||||
| vacuum pump | 63m³/h *1pcs | |||||||
| Gas holder | 2pcs | |||||||
| MAX.vacuum pressure | -0.1mpa(63m³/h) | |||||||
| Total cpower | 30KW | |||||||
| Vacuum motor power | 3.0KW | |||||||
| Operating power | 7.8kw | |||||||
| Weight | 1500kg | |||||||
| Minimum Order Quantity | 1 set | |||||||
| Heating way | Metal tube heating,reheating by aluminum plate | |||||||
| delivery time | within 25 working days upon recreipt of 30% deposit | |||||||
| terms of payment | 30% AS DEPOSIT IN ADVANCE , PAY THE BALANCE BEFORE SHIPPING | |||||||
| Normal Packing | Free PE film packaging and plywood cases which need additional charge | |||||||
Advantages of vacuum membrane press machine
1. Green environmental protection and low power consumption.
2. Double removable work tables, full-automatically, work efficiently.
3 The work table surfaces are made of high strength steel plate which is not easy to be deformed in high temperature environment.
4. Aluminum plate is used to reheating. There is auxiliary heater on the inner wall of the heating box..
5. Laminating, temperature setting &controlling and pressure automatically.
6. The pump with German technology is small in size and powerful and quiet.
7. It is the best choose for non-painting door, cabinet door and furniture to laminate PVC and wooden veneer.
Sales service of c Door making vacuum laminating machine
| Pre-sale Service | 1. The customers can visti the factory. |
| 2. Accommodation arrangements are provided. | |
| Sale Service | 3. We accompany the customers to test the machine from the beginning to the end. |
| We can help the customers to contact the freight company and provide logistics single inquiry No & the estimated arrival time. | |
| After sale service | 1. No damage to human factors, one year warranty except the vulnerable parts. |
| 2. The planning of the door factory can be offered including the material purchasing, the machine arrangement, technical training,technological teaching and so on which can save 30% of the cost. |
Warranty
One-year warranty for factory defeat, 6 months warranty for electric components, we will change new parts under warranty free of charge, however we do not take responsibility
for parts due to natural wear-out and operation by mistake or any misuses.
We promise a whole-life after-sale maintenance and support. You can call us at any time.
Note: Oversea customer may need to undertake the round-way tickets, provide accommodation and food for our after-sale stuff flies over, if not, we can only support you by email, video, camera, etc to spare no effect to solve problems.
