HSHM1350TZ-F Plaster Board PVC&grainy Paper Sticking Machine

Name: HSHM1350TZ-F Plaster Board PVC&grainy Paper Sticking Machine
Brand: hongsenhaomai
SKU: 127315237
Availability: InStock

Qingdao Xushi Weiye Woodworking Machinery Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Brand Name:

hongsenhaomai

Model Number:

hshm1350tz-F

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name hongsenhaomai

Model Number hshm1350tz-F

Specifications

Plaster board PVC&grainy paper sticking/laminating machine
1.wor on plane surface with pvc. paper
2. roller glue

HSHM1350TZ-F

Plaster board PVC&grainy paper sticking/laminating machine

THE FEATURES

1.It can finish the glue spraying, the paper sticking, the hot and cold press successively with

high efficiency.

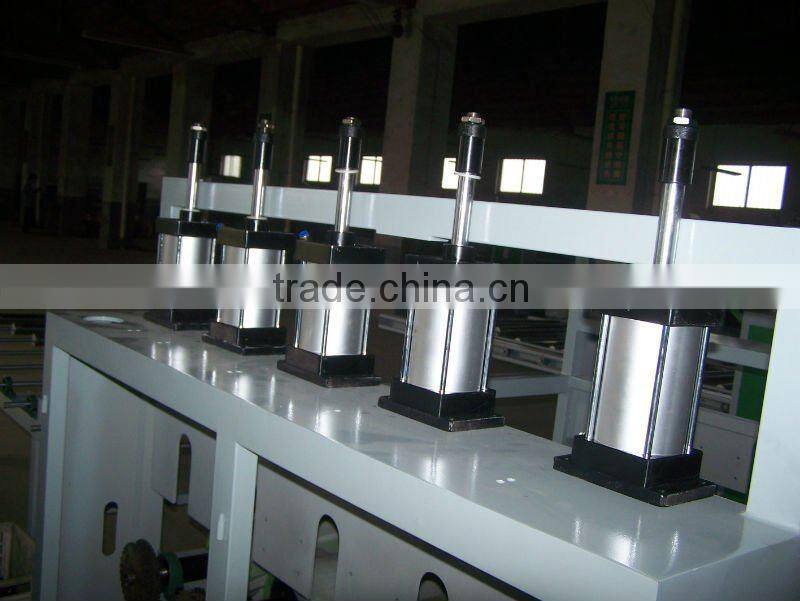

2.The rolls rising is controlled by pneumatic lifting system

3.The glue coating system adopts the overrunning clutch.

4.It is used to laminate the PVC. decorative paper, paint paper and luxirant paper on the surface

on the wood or bamboo board, marble, plaster, steel and MDF.

TENICAL PARAMETER

MODEL	HSHM1350TZ-F
Roller Specification	Φ190X1350mm
Shortest work length	500mm
Working width	1220mm
Work thickness	2-30mm
Conveying speed	1-25m/min
Conveying Motor power	1.1kw
Brush motor power	0.37kw
Heating power	2.4kw
Pvc or paper width	1280mm
Overall dimension	6100X1980X1780mm
Net weight	1900kg
Make work width base on customer: 600/1000/1600/1800mm
