Specifications

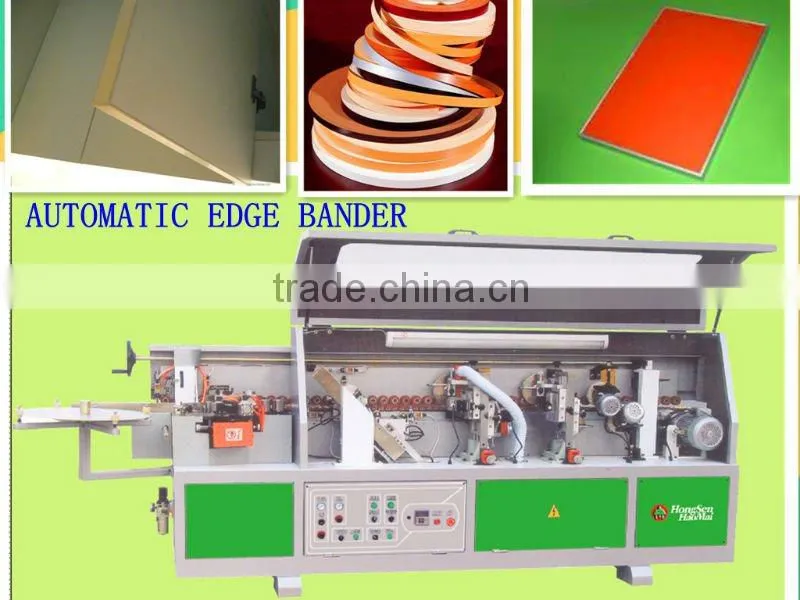

Automatic straight edge bander1,adopt the glue device two-sidely
2,import advanced high quality electric appliance

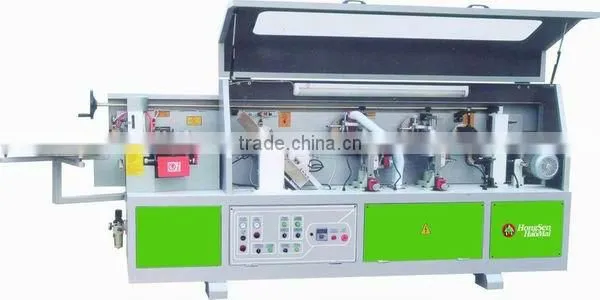

Automatic straight banding machine
HSHM450FB-A
Main feature
1,This machine can finish the facing straightly type the dysmorphism seals the transport in the side apply the glue cut off on a lever with one from beginning to end from head to foot by repairing. It is repaired that precise from head to foot to the sides have the side from head to foot a great deal of processes ,such as polishing.
2,Originally adopt and apply the glue device two-sidedly,make sideboard and base material apply the glue evently. Because this machine adopts and import advanced high quality electric appliance part and imports the eletrical machinery,utilize frequency conversion to control,enable sending and realizing the stepless speed regulation with the glue axle,thus got the best speeds of sealing the side of various kinds of panel and satisfactory processing surface.
Technical data
Coied maturial width |
15-63mm |
Coied maturial thickness |
1.5mm |
Panel thickness |
3mm |
Min.panel thickness |
10-60mm |
Min.panel width |
100mm |
Feeding length |
200mm |
Feeding power |
1.5/2.2kw |
Feeding speed |
10.2/15.79m/min |
Overall size |
4700*900*1500mm |
Net weight |
1800kg |
Working voltage |
380v/50hz |
