Specification of edge bander ;
1.edge bander machine HSHM803A
2.High efficiency and accuracy.
3.CE& ISO certificate.
4. Auto type anc semi-auto type.
Functions of edge bander :
1.Adopt to the linear sealing of PVC,wood plank and veneer etc.
2.using imported quality engines and electric components makes the edge effect smooth and nice !
3.high precision and good work efficiency

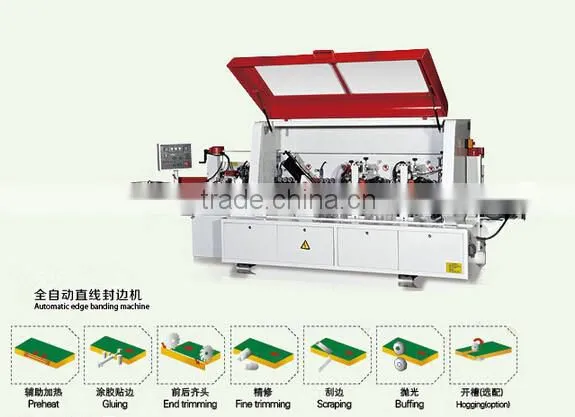

Workflow of edge bander :
Feeding-Gluing -snipping-end trimming -rough trimming -fine trimming - -scraping -buffing

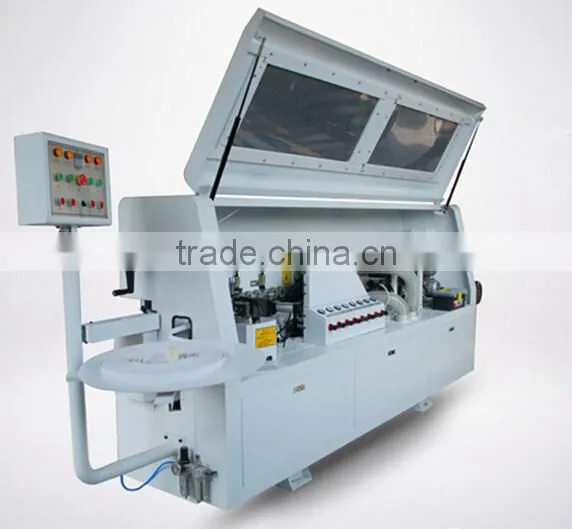

This is our Auto type(also we accept OEM order )
Main technical parameters of edge bander :
| Thickness of the wood: | 10-50mm |
| Edge tape thickness: | 0.4-3mm |
| Min width of the wood: | ≥80mm |
| Min length of the wood: | ≥120mm |
| Feeding Speed: | 13m/min |
| Air Pressure: | 0.6Mpa |
| Voltage: | 380V/50HZ 3Phase |
| Feeding Gluing motor: | 0.37kw 50HZ 1400RPM |
| Head end Cutting motor: | 0.35kw * 2 200HZ 12000RPM |
| Fine Trimming motor: | 0.55kw * 2 300HZ 18000RPM |
| Polishing motor: | 0.18kw * 2 50HZ 2800RPM |
| Glue tank heating power: | 1.5kw |
| Assistant heating power: | 0.12kw |
| Panel feeding motor: | 1.5kw |
| Total Power: | 6.43kw |
| Outline size: | 3890x1135x1680mm |
| Weight: | 1200KGS |
Component characteristics of edge bander :
Electrical component use SIEMENS, SCHNEIDER, OMRON, DELTA, LG
Pneumatic component use TAIWAN brand AIRTAC.

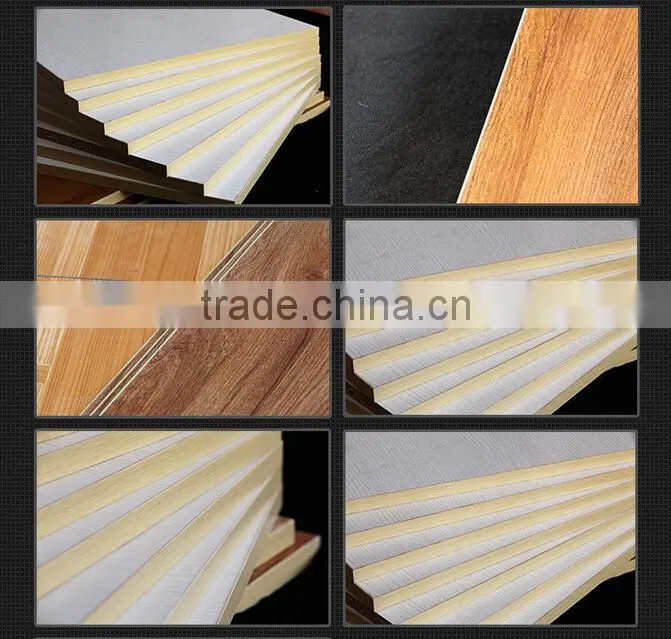

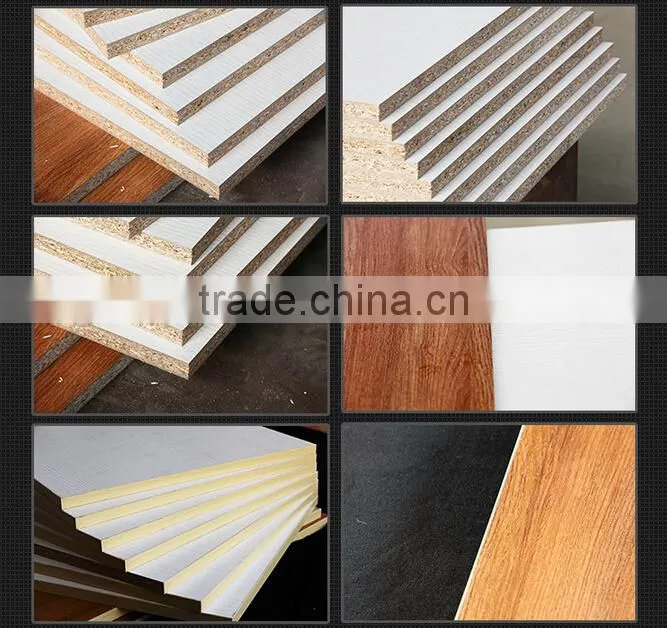

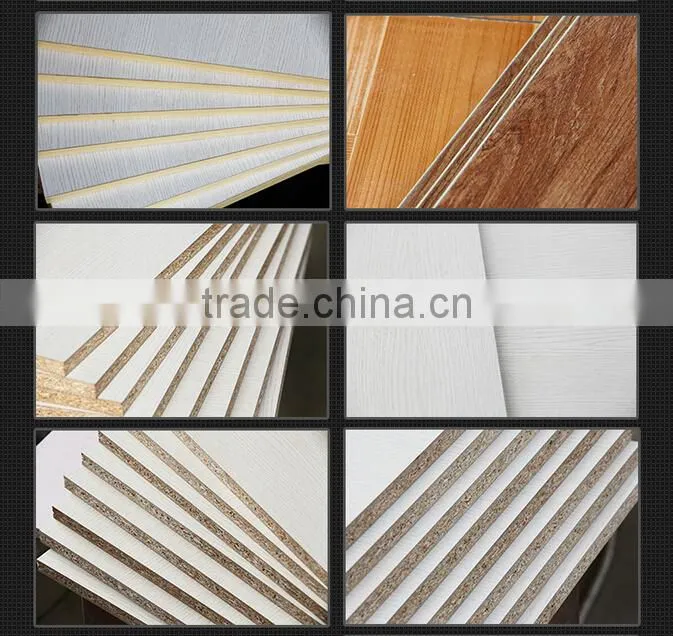

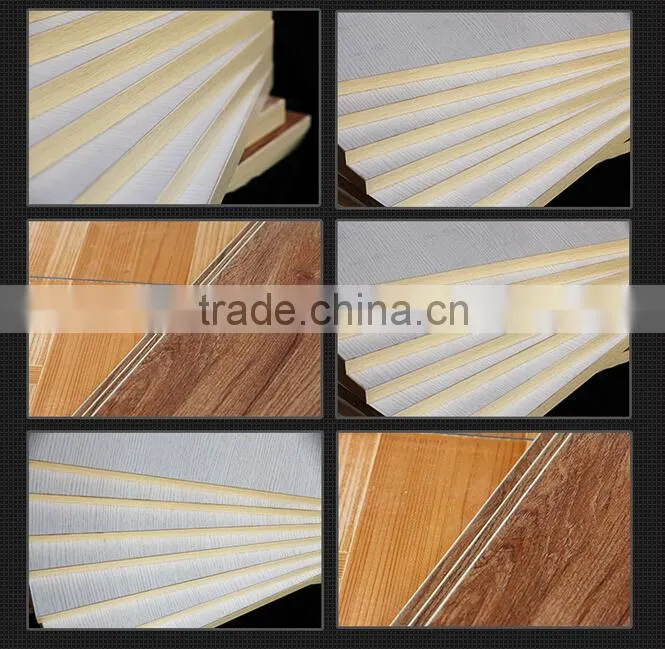

Effect after edging by edge bander :
Why choose us?
Because we provide best quality product:
*brand new design with "D arc"on the machine's appearance.
*With Double guild rails and end trimming system.
*The highest level of Aluminium alloy loading guide board in the industry.
*All of Accessories are imported:
Pneumatic components from AIRTAC (TAIWAN)
Overtravel-limit switches from TEND(TAIWAN)
Feeding guide board from HIWIN (TAIWAN)
Drive motor from ZHONGYI(TAIWAN)
Trimming motor is made of HTS high frequency motor
Trimming circular saw blade from HAUPT (Germany)
*High speed and frequency conversion motor from Italy with highest speed at 18000 RPM/MIN.
*Floating trimming from four directions, could adjust automatically according to panel surface.
*Trimming knife tools original from Genmany could bring excellent effect of of applied edge.
*Scraping cutter head use raw material of black cobalt alloy, hardness is 10 times of the ordinary white steel blade.

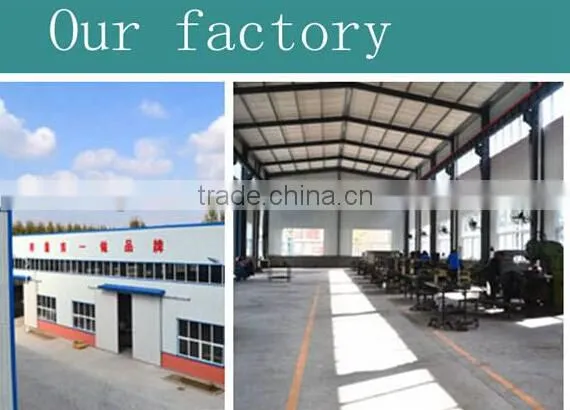

We are here :
fessinal manufacture with 15 years production experience in woodworking machines.
2.11,000 square meter workshop,first class skilled workers,near qingdao port,
3.5steps strict quality control,CE &ISO certificates
4.timely delivery with short production period
fessional after-sale service available, email and calling is avaible in 24 hours.
6.more than 70 countries customers have enjoyed our machines.
Our service:
Quality: our first priority have always been providing our client with great quality productions and superior customer service.
Quick Lead time: we’re dedicated to providing the quickest turnaround times and work very hard to ensure that all of your deadlines are met.
Prices: we continuously strive to find ways of reducing our production cost, and passing the savings to over to you!
Brand awareness: the goal of any strong brand is achieve a level of awareness that instills the idea of quality and value into all of your potential customers.
Special offers: in order to maintain our competitive edge, we are constantly running special offers on our promotion gifts. Contact our sales team to see how we can help you save a lot of money.
