HSHM1325DK B2 CNC Cutting Machine With Three Spindles
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New, New
Place of Origin:
Shandong, China
Brand Name:
HSHM
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Top Sales HSHM1325DK-C CNC Wood Router Machine for Wood Door EngravingUS$ 6,000 - 12,000MOQ: 1 Set -
Top Sales 3-spindles Wood Engraving Machinary HSHM1325DKUS$ 6,000 - 12,000MOQ: 1 Set
-
3d Wood Cutting Cnc MachineUS$ 6,000 - 7,000MOQ: 1 Set
-
HSHM1325DK-C Cnc Wood LatheUS$ 6,000 - 8,500MOQ: 1 Set
-
Wood Stair Cnc Router MachineUS$ 6,000 - 8,500MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
HSHM
Model Number
HSHM1325DK-B2
Specifications
HSHM1325DK-B2 CNC cutting machine1.1500*2500 work-table

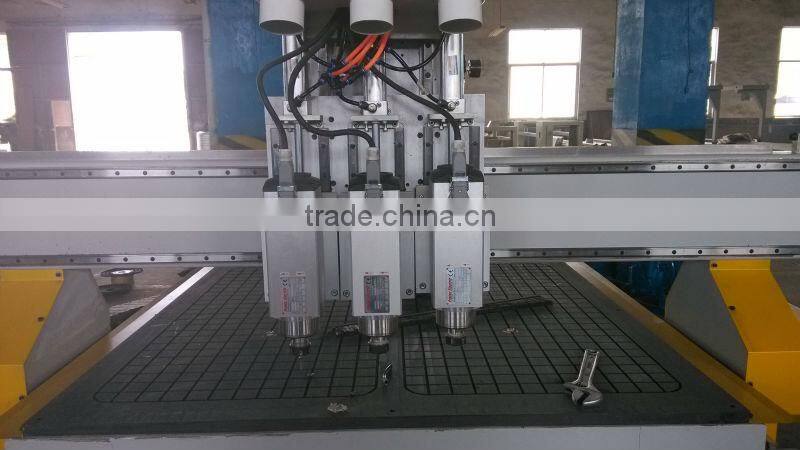

2 three 5.5kw wind spindle motors
3 square profile
4 ISO

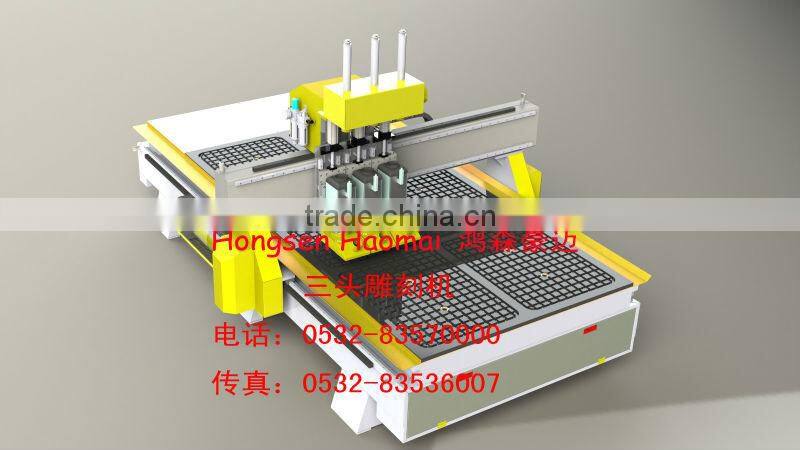

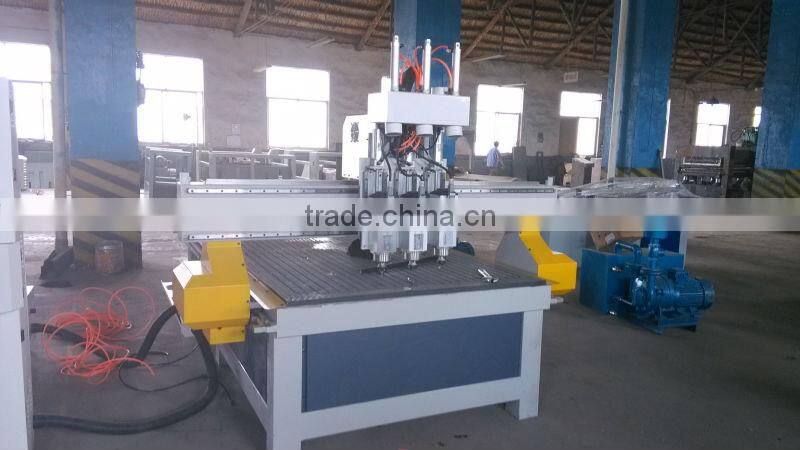

HSHM1325DK-B2 three spindles CNC cutting machine
1.1500*2500 work-table
2 three 5.5kw wind spindle motors
3 square profile
4 ISO
| 1 | The body machine is made of steel with high stability | ||
| 2 | This system have break point memory mode and special saving made of different points so that can make sure continuous working after electronic drop or other postpone situation. | ||
| 3 | Germany import ball screw, original packing nut, import linear square orbit. 4.5kw water cooling spindle motor. | ||

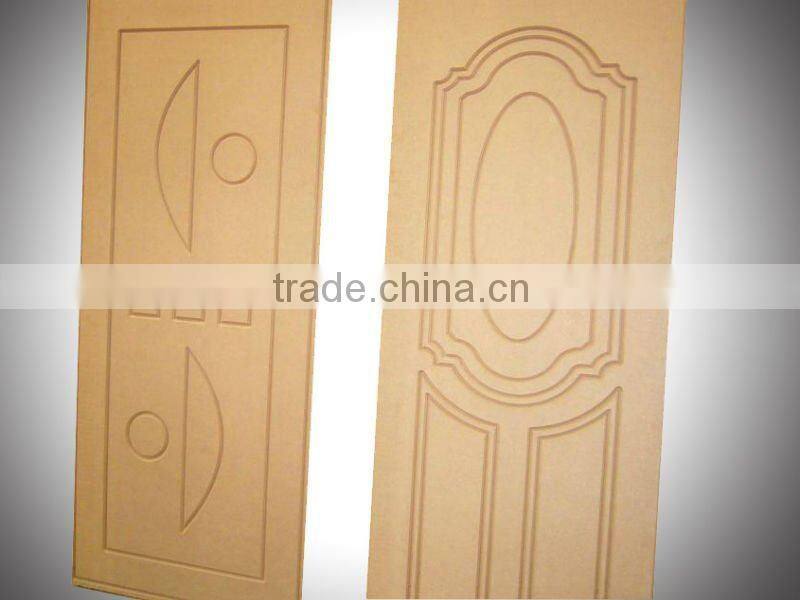

| 4 | this machine is special for wooden doors design, with the original function of a sculpture which also engrave keyhole slot and hinge function. | ||
| 5 | this machine adopts the special dust collecting system to make clear working surroundings | ||
| 6 | this machine is compatible with the process code of multiple national and international software, such as stype3/Artcam/ (wentai engraving system)/(weihong controlling card)/ (CARVING) and so on more soft ware CAD and CAM. | ||
| 7 | Control system: The embedded numerical control system based on windows 98/ 2000 and XP computer system. | ||
| 8 | Zones vaccum table, special wood door engraving area make the products more perfect. | ||
| Technical Paramater: | |||
| NO. | Description | Parameter | |
| 1 | Table size | 1350×2500mm | |
| 2 | X,Y working area | 1300×2500mm | |
| 3 | Z working area | 300mm | |
| 4 | Processing precision | 0.02mm | |
| 5 | Reposition precision | 0.05mm | |
| 6 | Table structure | Vacuum work table | |
| 7 | Z structure | Z ballscrew | |
| 8 | Main spindel power | 4.5kw water colling spindle | |
| 9 | main spindel rotation | 0-24000r/min | |
| 10 | controling system | step motor( servo as customer) | |
| 11 | Max. working speed | 30m/min | |
| 12 | Self-consuming power | 2.8KW | |
| 13 | Working voltage | AC380V/50Hz | |
| 14 | Net weight | 1500kgs | |
| 15 | overall size | 3200*2000*1700mm | |
| voltage | 380V 50HZ 3 phase with AC | ||
