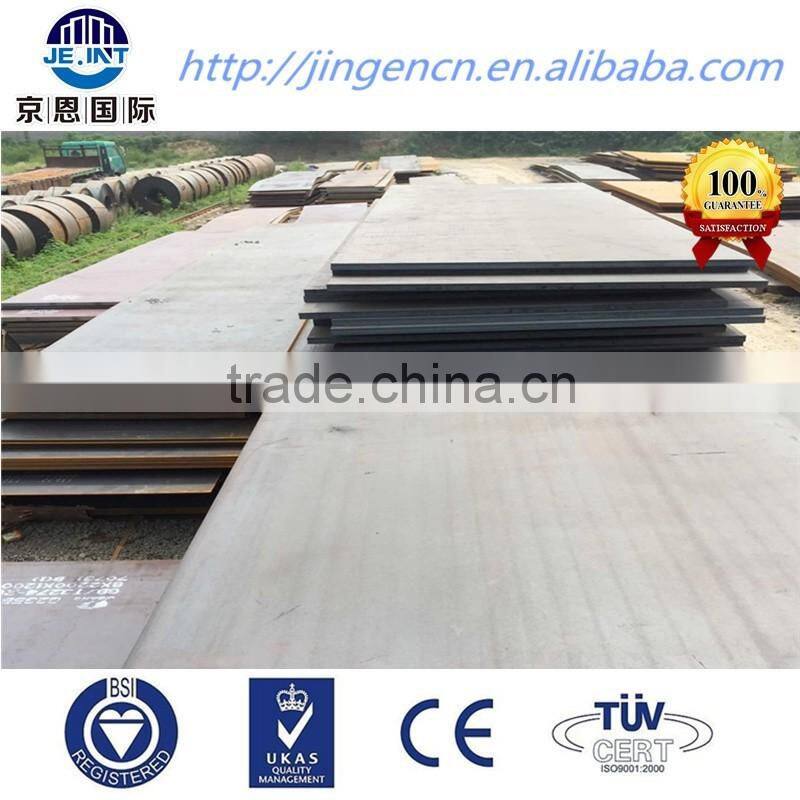

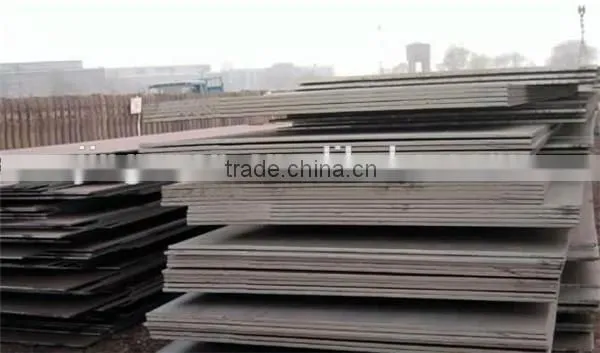

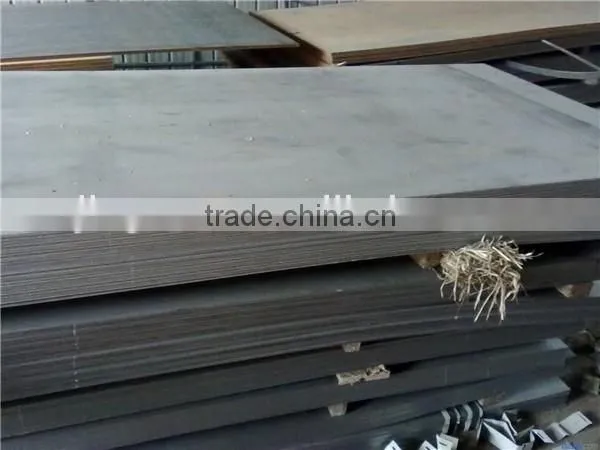

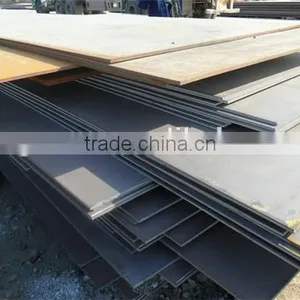

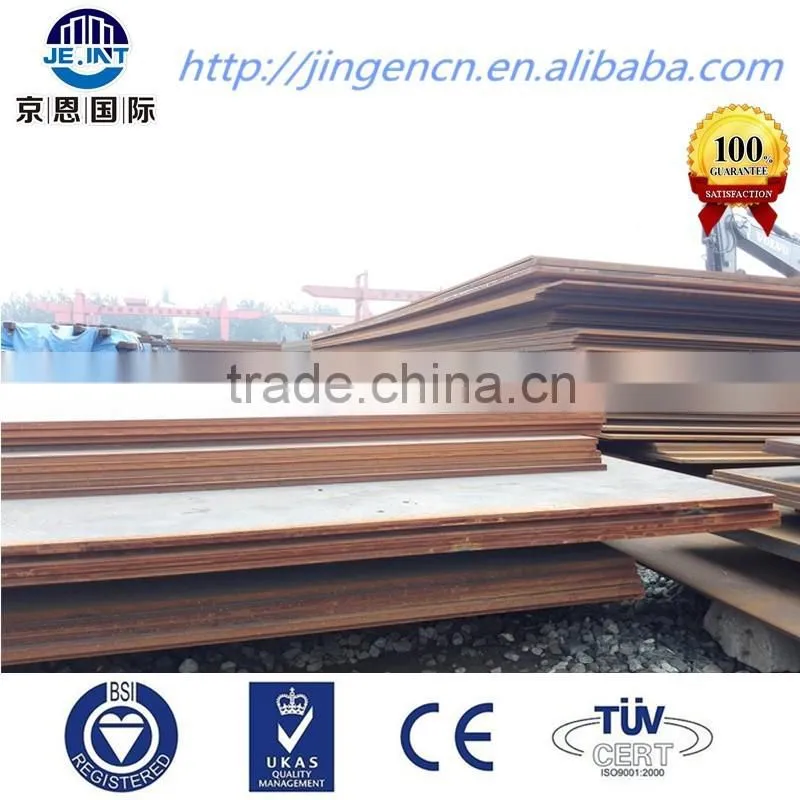

AH36 EH36 Shipbuilding steel plate
EH36 shipbuilding steel plate is the mainly kinds of steel for shipbuilding and oil platform, the shipbuilding grade EH36 can be used in the manufacture of the ship's hull structure, whose weight is more then 10000 tons. Shipbuilding grade EH36 is the high tensile strength steel, EH36 steel for shipbuilding and oil platform must be good toughness properties, higher strength, strong corrosion-resistance, the processing properties, and welding properties.
EH36 shipbuilding steel plate specification:
Thickness: 4mm to 260mm,
Width: 1200mm to 4000mm
Length: 3000mm to 18000mm.
EH36 Shipbuilding Steel Application:
DH36 Shipbuilding steel plates are mainly used for making the offshore oil drilling platform, the hull of ship building and ship repairing, the platform pipe joints and other components.
Eh36 steel plate Chemical Composition %
| C max | Si max | Mn | P max | S max | Als min | Ti max | Cu max | Cr | Ni | Mo | Nb | V |
EH36 | 0.18 | 0.50 | 0.90-1.60 | 0.035 | 0.035 | 0.015 | 0.02 | 0.35 | 0.20 | 0.40 | 0.08 | 0.02-0.05 | 0.05-0.10 |
Note: Generally speaking CE will be ≤ 0.40%. If the delivery condition is TMPC, the CE will be : ≤ 0.38% (thickness ≤ 50mm),≤0.40%( when the thickness >50-100).
Ceq% =(C+Mn)/6+(Cr+Mo+V)/5+(Ni+Cu)/15.
Eh36 steel plate Mechanical Property
| Rm | Re(MPa) min | A% min | Akv/J min | ||||||
EH36 | 490-630 | 355 | 21 | E.T °C | Thickness (mm) | |||||
-40 | ≤ 50 | >50-70 | >70-100 | |||||||
L | C | L | C | L | C | |||||
34 | 24 | 41 | 27 | 50 | 34 | |||||
Note: In the list , Rm: .tensile strength,Re: Yield strength,A%: elongation, E.T: experimental temperature,L: lengthways, C: crosswise.
Eh36 steel plate Condition Of Delivery
| Fine grains elements | category | The thickness of steel | ||||||
≤ 12 | >12.5-20 | >20-25 | >25-35 | >35-50 | >50-100 | ||||
EH36 | Any | Plate/sheet | N,TM | ||||||
Profile steel | N(25),TM(25),AR*(15),CR*(15) | - | |||||||
Note: 1. delivery condition: A =Any ; N=Normalized ; CR=Control Rolled ; TM=TMPC, Temperature - deformation control rolling; AR*= Can be hot rolled with the agreement of Classification Society ; CR*=Can be control rolled with the agreement of Classification Society .
2. The Figure in the ( ) means the sampling volume to do the impact test, the unit is Ton.(-) means without impact test.
EH36 steel plate Contrast in the different standard
| TOCT 5521 | BS LR | GB712 |
EH36 | E36 | EH36 | E36 |
