Pcm 3.1 Pas Video Interface
1. About Interface
It work to Porsche PCM 3.1 head unit. PCM 3.1 head unit have a NAVI button
HDMI Option (Smart Phone Mirror link)
PAS (Parking Line System)
2.Main Spec :

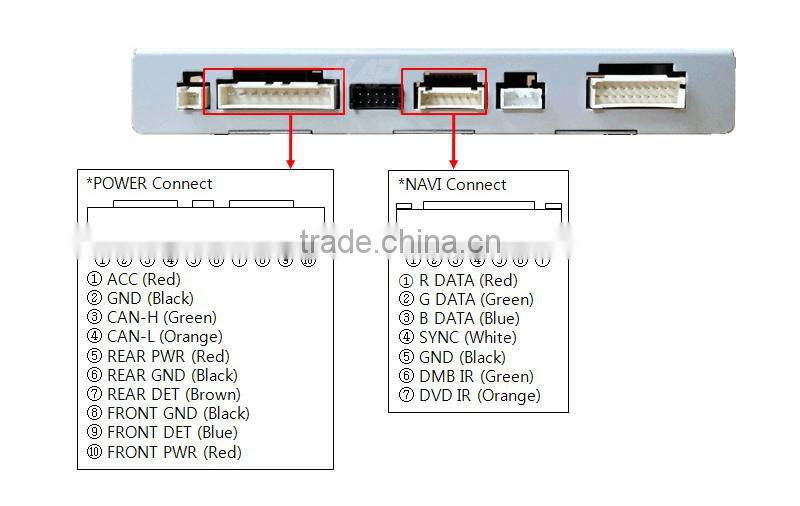

1. Input Spec. (MULTI VIDEO INTERFACE)
- 2 x A/V Input (External video source).
- 1 x CVBS(REAR CAMERA) Input. (Rear camera source)
- 1 x CVBS(Front CAMERA) Input. (Front camera source)
- 1 x Analog RGB Input (Navigation System output)
2. Output Spec.
- 2 x CVBS Output (Video out for Installing Headrest Monitor)
- 1 x Audio L/R Output.
- 1 x LCD Output (LCD Operation)
3. Power Spec.
- Input Power : 8VDC ~ 24VDC
- Consumption Power : 12Watt, Max 4. Switch Input mode
- Possible to select CAR model while switching mode by DIP S/W

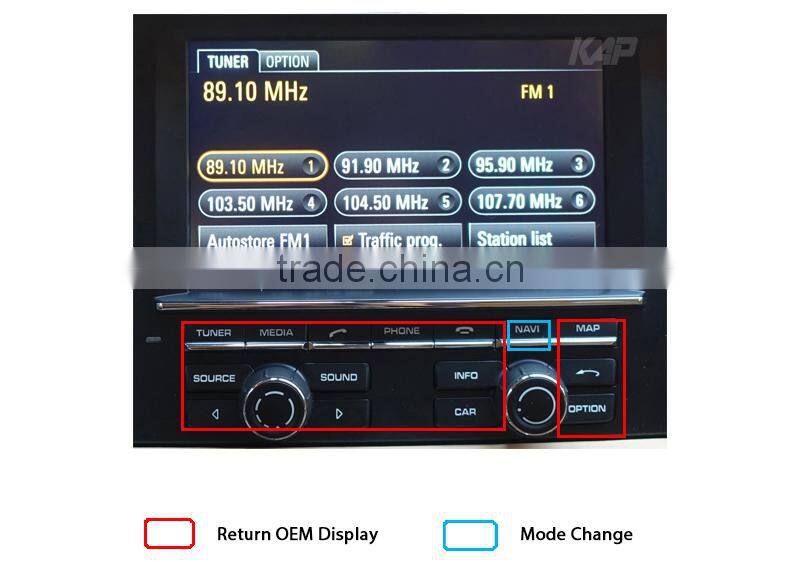

- By button on the Commander in the car via CAN
3.Compatible vehicles:
All Porsche PCM 3.1 head unit cars
