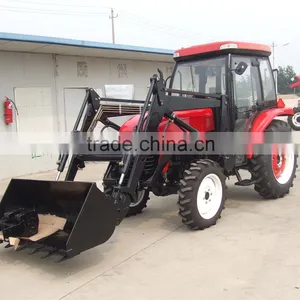

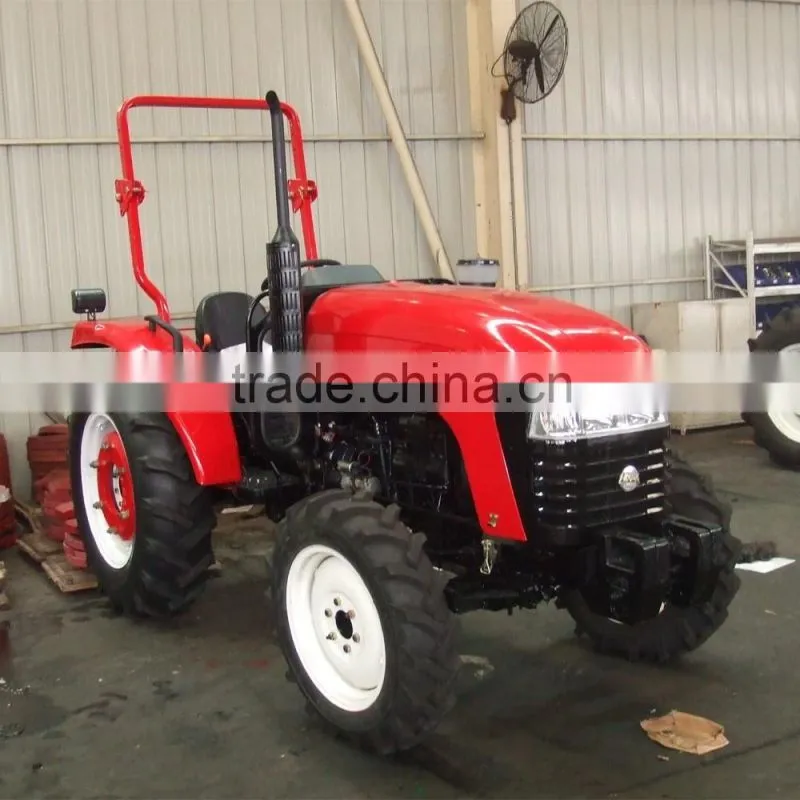

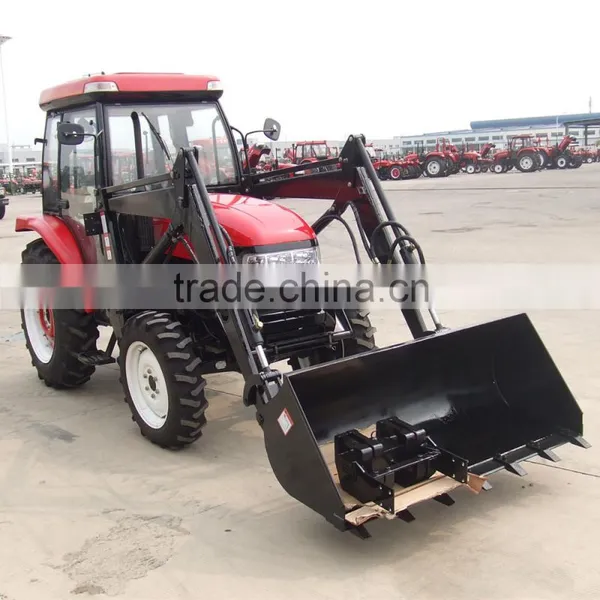

50hp 4wd Jinma Farm Tractor Tractors Machine With Front End Loader

50hp 4wd Jinma Farm Tractor Tractors Machine With Front End Loader thumbnail-1
50hp 4wd Jinma Farm Tractor Tractors Machine With Front End Loader thumbnail-2
50hp 4wd Jinma Farm Tractor Tractors Machine With Front End Loader photo-1
50hp 4wd Jinma Farm Tractor Tractors Machine With Front End Loader photo-2
US$ 4,000 - 7,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Henan Lucky Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 25.7KW
Certificate CE
Brand Name JINMA
Model Number JM-504
Place of Origin Jiangsu, China
After-sales Service Provided Overseas service center available

Product Description

We only sell Jinma tractor and YTO tractor machine.

Jinma tractor 16hp, 20-50hp is with CE, EEC certificate, can sell to Europe market.



Below is Jinma 50hp 4wd farm tractor tractors spec.

Tractor
Parameters 		Model JM-504
Drive Type 4WD
Overall Dimensions 3946×1625×2220
L*W*H(mm)
Wheel  Track Front 1300
(mm) Rear 1300-1600
Wheel Bass(mm) 2073
Ground Clearance(mm) 325
Rated Traction Force(N) 13000
Construction Mass(kg) 2148
Min. Turning Radius(m) 3.42
Model SL4100BT
Type 4-Cylinder Vertical, Water Cooled, 4 Stroke Cycle
Engine Rated Power(kw/hp) 36.8/50
Rated Speed(rpm) 2300
Bore×Stroke(mm) 100×110
Total Displacement(L) 3.456
Clutch Single-Function Dry Constant Meshing
Gear Box 4×(2+1)Sleeve Gear
Drive
System 		Main Drive One Pair of Spiral Bevel Gearing
Differential Bevel Gear
Different Lock Sliding Pin, Foot Operated
Final Transmission Planeatry Reduction Gear
Type Front 8.3-20
Traveling
Mechanism 		Rear 12.4-28
Steering Gear Hydraulic Steering
Brake Oil Lmmerszd Multiplated Disc

Hydraulic

System

Lifting Capacity at

610mm Behind Lift Point(N)

 8300
Working Device P.T.O
Shaft 		3-Point Suspension Category:1
Roating Speed(rpm) 540/720 or 540/1000
Spline Size 6-φ35Rectangular Spline
Options Roll bar, Canopy, Shuttle, Hydraulic, Steering, Dual stage clutch, Turf Tyer, Cab



50hp 4wd jinma farm tractor tractors machine with front end loader50hp 4wd jinma farm tractor tractors machine with front end loader50hp 4wd jinma farm tractor tractors machine with front end loader50hp 4wd jinma farm tractor tractors machine with front end loader50hp 4wd jinma farm tractor tractors machine with front end loader



Color: gree, red, blue, silver are optional
Packaging & Shipping

Iron frame or nude packing in container

L/T: 35days after order confimmation

Pls. be noted, if choose tractor with cabin, it had to choose 40HC container, if choose tractor with rop and sunshade, 20feet container is OK.

Our Services

Payment terms: 30% TT down payment, 70% TT before delivery

Warranty: 12months

Departure port: Qingdao or Shanghai

FAQ

Why we only sell Jinma/YTO tractor?

1)Jinma/YTO tractor quality is good, it is reliable tractor

2)YTO company is with high reputation and good credit

3)We are partner of Jinma/YTO factory



What's the payment terms?

30% TT down payment, 70% TT before delivery.



Is it farm implements available?

Yes, it is available.
