Pendant MPG/Manual Pulse Generator wgp for cnc router fanuc
- 2000 Set / Sets per Month
- T/T
Product Details
Place of Origin: | Sichuan, China | Brand Name: | XHC | Model Number: | AWGP02-5A-2 |
Usage: | Position Sensor | Theory: | Optical Sensor | Output: | Digital Sensor |
Product Description
WGP0X wireless Manual pulse generator XHC
we are manufacturer
Product description
The Manual For Fully functionl Wireless Handle for Engraving machine:
Typical applications:
A variety of CNC machine tools: Machining center,cnc, Vertical lathe, Longmen milling machine
Longmen engraving and milling machine.
Product model: A-WGP and B-WGP
Support system:
SIEMENS,MITSUBISHI,FANUC,FAGOR,FRANCE NUM,TAIWAI BAOYUAN,XINDAI and so on.
Product features:
1. The handwheel by brand encoder and touch feel is good, the service life is long, the tooth position clear.

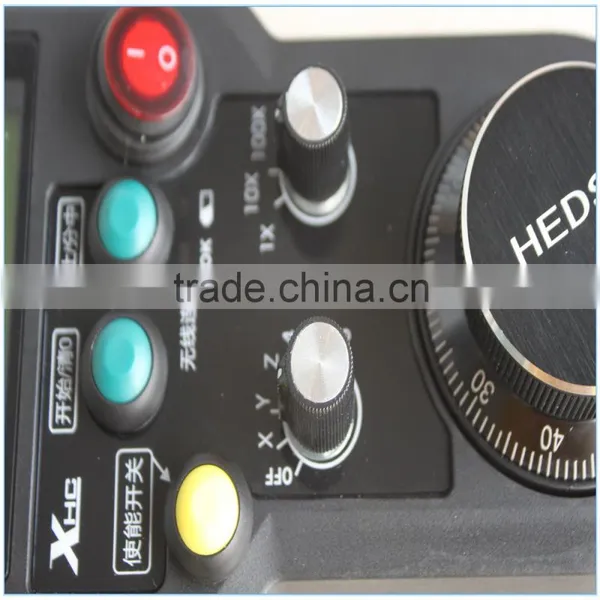

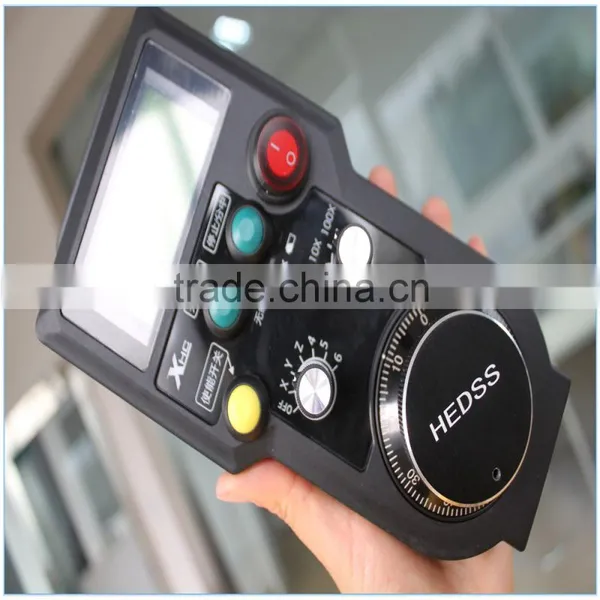

2. With LCD display, X axis, Y axis, Z axis, the 4 axis coordinate value, resolution of 1 micron(without LCD display has no function)
3. With rate display 1X, 10X, 100X; having a shaft selected display X, Y, Z, 4, 5, 6
4. Wireless hand wheel, far transmission distance, straight 60 meters can stable operation without obstacle
5. wireless transmission frequency, 433MHZ, power of 10DB, the data encryption transmission, stable and reliable
6. Using 64 channel frequency hopping, have 65536 different identities of ID numbers, the same room, maximum support 64 sets of equipment at the same time, no mutual interference.

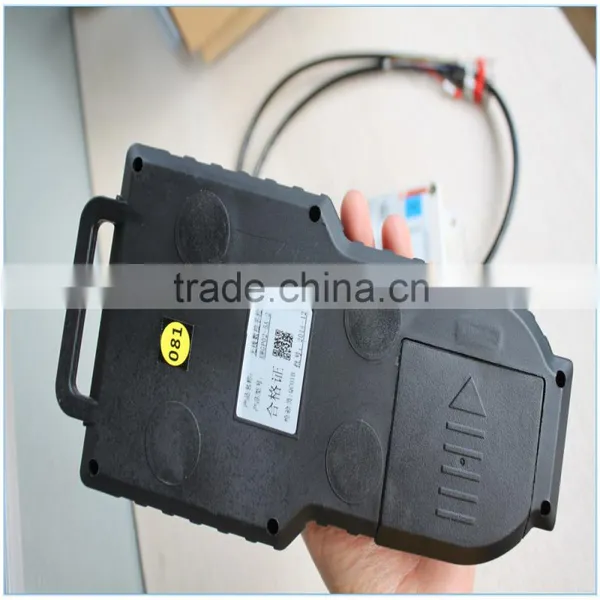

7. Wireless handwheel using work two No5 batteries, using low power design, under normal circumstances, can be used for 2 months.
AWGP Mainly for large Longmen machine tool application:

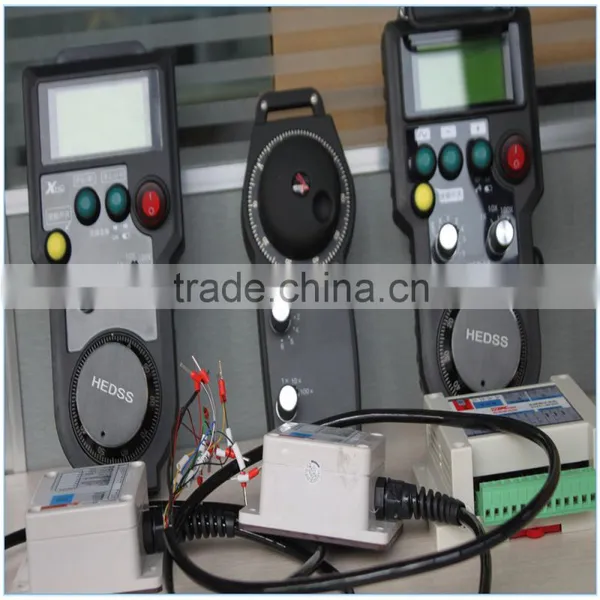

AWGP-2 with display and maximum support 6 shafts, two key button output(The positive rotation, Reversal),1 enable key output
AWGP-3 with display and maximum support 6 shafts, three key button output(the positive rotation,Reversal, Continuous),1 enable key output
AWGP-2T without display and maximum 6 shafts ,two key button output(the positive rotation,reversal), 1 enable key output,1 emergency stop button output
AWGP-3T without display and maximum 6 shafts ,three key button output(the positive rotation,continuous),1 enable key output,1 emergency stop button output
AWGP wireless handwheel can be used large CNC,longmen CNC,can custom different Switch output.
BWGP wireless handwheel mainly used in small CNC, replace the traditional Wired handwheel, The price is cheap, high performance price ratio.
name rules:
MODEL | A/B | W | GP01 | -4 | -A | 3T |
NO | A/B | 1 | 2 | 3 | 4 | 5 |
A: Says the big machine tool series
B: The high performance to price ratio, instead of the conventional wired hand wheel series
NO | The meaning that the serial number | ||||||||||||||||||||||||||||||||||
1
| W means wireless handwheel, L means wire handwheel | ||||||||||||||||||||||||||||||||||
2
| GP01: Power supply DC5V, 100PPR output pulse, phase output A, B. Two pulse sequences of A and B is 90, the open collector circuit, in which 200 euro 5V pullup resistor
| ||||||||||||||||||||||||||||||||||
GP02: Power supply DC12V, 25PPR output pulse, phase output of A, B, A and B, two pulse sequence difference of 90, open collector circuit, built-in 2K European 5V pullup resistor
| |||||||||||||||||||||||||||||||||||
GP03: Power supply DC5V, 100PPR output pulse, phase output of A, /A, B, /B; using differential drive output
| |||||||||||||||||||||||||||||||||||
3
| 3: Said handwheel shaft support 3 X,Y,Z
| ||||||||||||||||||||||||||||||||||
4: X,Y,Z,4
| |||||||||||||||||||||||||||||||||||
5: X,Y,Z,4,5
| |||||||||||||||||||||||||||||||||||
6: X,Y,Z,4,5,6
| |||||||||||||||||||||||||||||||||||
4
| A:Said shaft by point-to-point output: X axis, X axis and COM conduction; Y, Y and COM through B: expressed by code output: 2 output, through the 2 hex code, indicating axes selected X or Y or Z etc. | ||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||
Selection Guide:
MODEL | Parameter description | For the system |
GP01 | 1. The source DC5V, 100PPR output pulse, phase output A, B 2.The two pulse sequences of A and B is 90 3. The open collector circuit, in which 200 euro 5V pullup resistor
| The Japan FANUC system, The Taiwan Digiwalker TNC The Taiwan billion figure (HUST) series The home such as aerospace CNC, NC central China, Guangzhou Nordson, Emperor Kaine KND series
|
GP02 | 1.The power supply for the DC12V output pulse, 25PPR, phase A output, B 2.The two pulse sequences of A and B is 90 - 3.The open collector circuit, built-in 2K European 5V pullup resistor | The Japanese Mitsubishi MELDAS electronic handwheel (MELDAS M64; M65; E60 system for the power supply DC12V, DC5V output) The Italy SELCA system |
GP03 | 1. The power supply for the DC5V output pulse, 100PPR, phase output of A, /A, B, /B 2.It uses a differential drive output | It is suitable for PC_BASE system, the typical system such as: POUYUEN M600 M500 M520i T300 Taiwan Baoyuan ELC-1000 series,
The Taiwan new generation of SYNTEC system,
The German PA system such as: typical Head League Higerman, Hanak HANUC, Guangzhou CNC GSK, open NC CNC system FAGORThe foreign system: Siemens, Spain Fage FAGOR
|

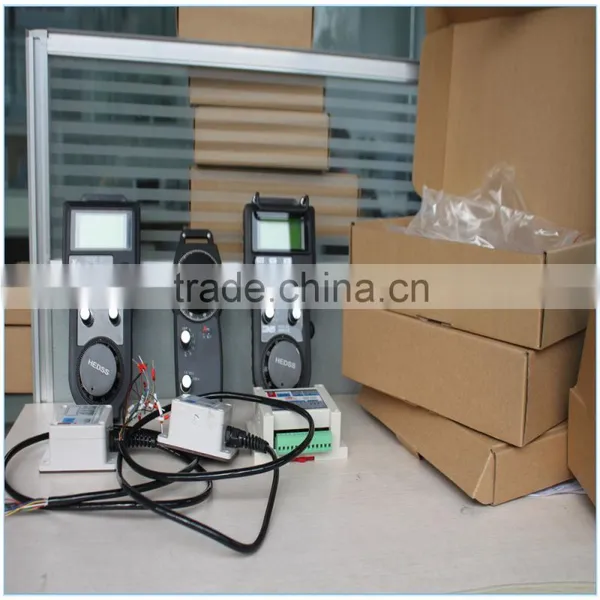

Packaging:
Packaging material: Carton box.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
XHC Technology Co.,Ltd is located in Chengdu, China.
Our factory owns 1 brand , XHC.
We has 10 years experiences in manufacturing and exporting MACH3 control card.
Our WGP has WGP01,WGP02,WGP03,BWGP01,BWGP03 and so on, are hot sale in the world, especially in these countries from North and South American,European and Asian.
