Manual Pulse Generator MPG Wheel Encoder

WGP0X wireless Manual pulse generator XHC

we are manufacturer

 Product description

The Manual For Fully functionl Wireless Handle for Engraving machine:

Typical applications:

A variety of CNC machine tools: Machining center,cnc, Vertical lathe, Longmen milling machine

Longmen engraving and milling machine.

Product model: A-WGP and B-WGP

Support system:

SIEMENS,MITSUBISHI,FANUC,FAGOR,FRANCE NUM,TAIWAI BAOYUAN,XINDAI and so on.

Product features:

1.  The handwheel by brand encoder and touch feel is good, the service life is long, the tooth position clear.

2.  With LCD display, X axis, Y axis, Z axis, the 4 axis coordinate value, resolution of 1 micron(without LCD display has no function)

3.   With rate display 1X, 10X, 100X; having a shaft selected display X, Y, Z, 4, 5, 6

4.   Wireless hand wheel, far transmission distance, straight 60 meters can stable operation without obstacle

5.  wireless transmission frequency, 433MHZ, power of 10DB, the data encryption transmission, stable and reliable

6.  Using 64 channel frequency hopping, have 65536 different identities of ID numbers, the same room, maximum support 64 sets of equipment at the same time, no mutual interference.

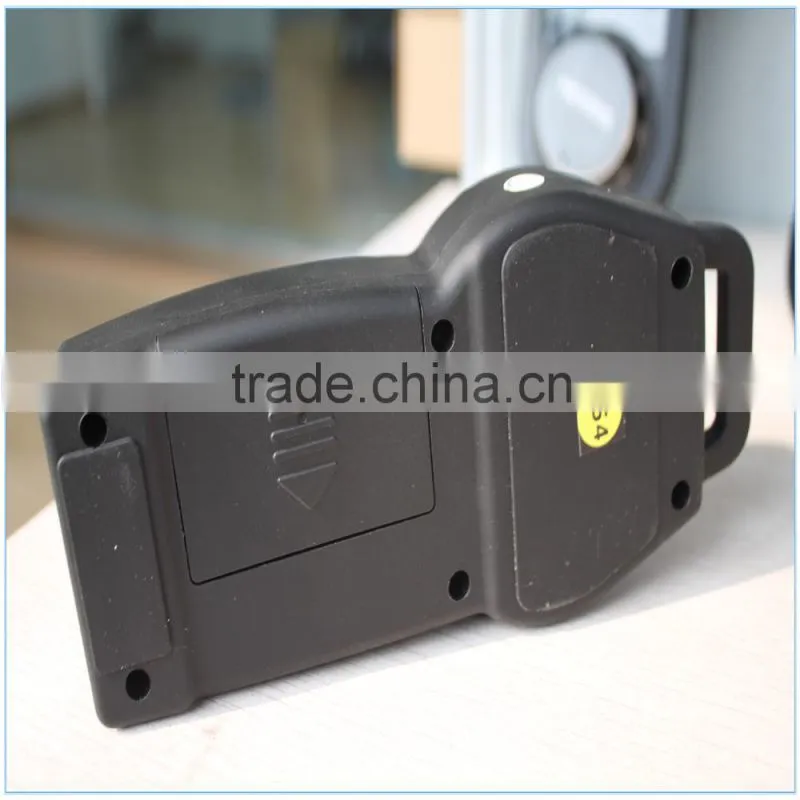

7.   Wireless handwheel using work two No5 batteries, using low power design, under normal circumstances, can be used for 2 months.

AWGP Mainly for large Longmen machine tool application:

AWGP-2 with display and maximum support 6 shafts, two key button output(The positive rotation, Reversal),1 enable key output

AWGP-3 with display and maximum support 6 shafts, three key button output(the positive rotation,Reversal, Continuous),1 enable key output

AWGP-2T without display and maximum 6 shafts ,two key button output(the positive rotation,reversal), 1 enable key output,1 emergency stop button output

AWGP-3T without display and maximum 6 shafts ,three key button output(the positive rotation,continuous),1 enable key output,1 emergency stop button output

AWGP wireless handwheel can be used large CNC,longmen CNC,can custom different Switch output.

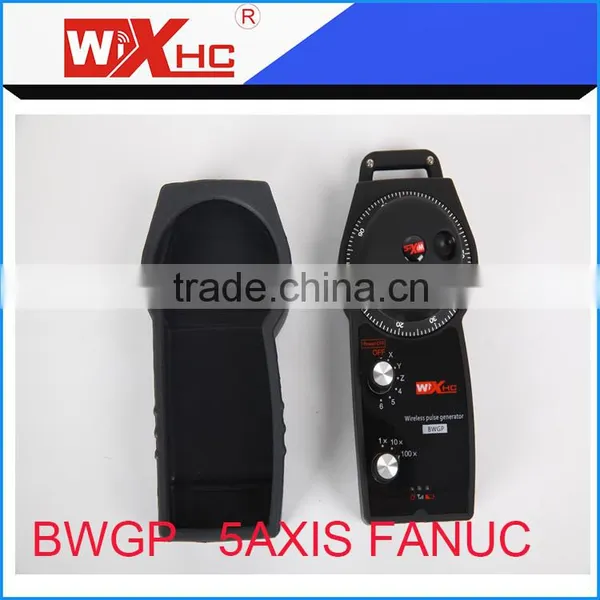

BWGP wireless handwheel mainly used in small CNC, replace the traditional Wired handwheel, The price is cheap, high performance price ratio.

name rules:

A:  Says the big machine tool series

B: The high performance to price ratio, instead of the conventional wired hand wheel series

Selection Guide:

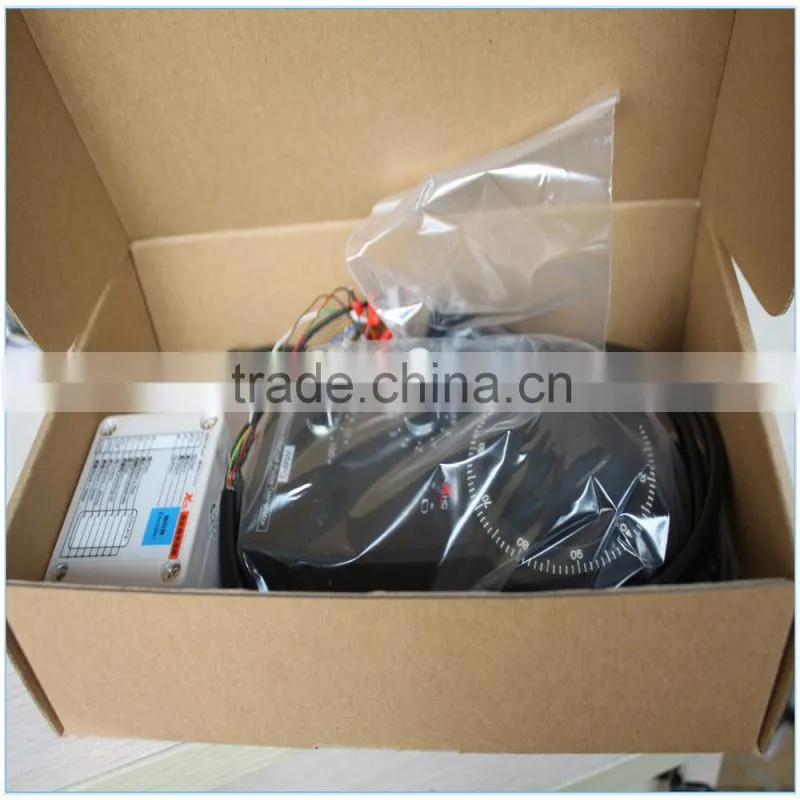

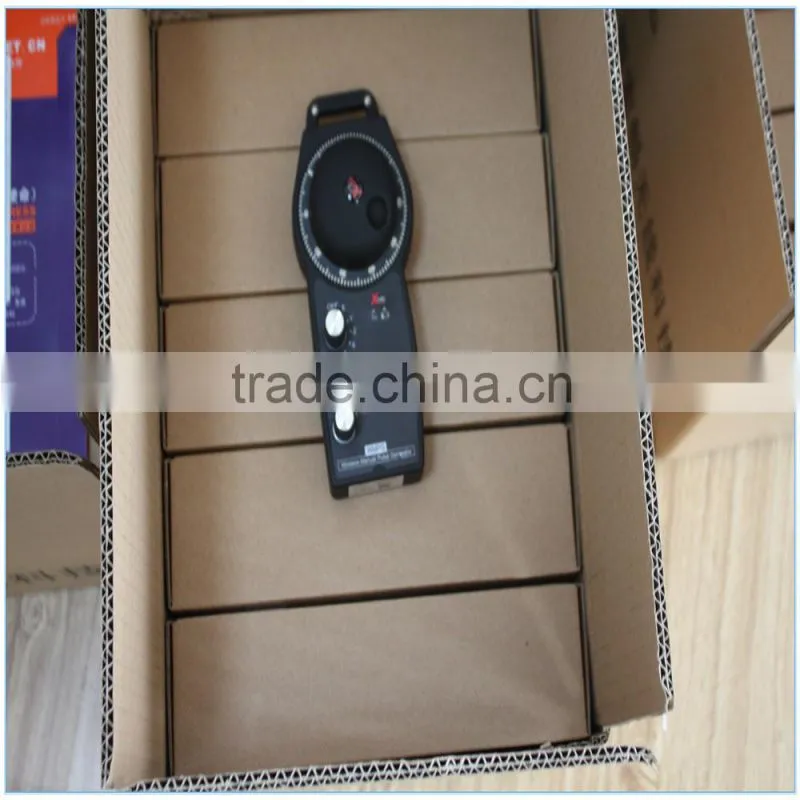

Packaging:

Packaging material: Carton box.

Shipping:

A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)

B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.

C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
