thin sheet cnc hole punching machine
The Machine Feature
A,Equipped with advanced combat head structure, lubrication sealing structure is reasonable, the static and dynamic response characteristics is good, impaction of temperature change is small, without environmental interference.
1,Stroke, speed adjustable
(1), can be automatically select punching stroke for different thickness, improve processing efficiency.
(2), in each point of every single mode on the trip, stamping speed adjustable, can realize fast move of zero stroke and low speed move of punch, improve the process quality, realize no noise.
(3), can be precisely controlled lower dead point, very convenient for special craft processing, such windows, knockouts, roll bars, roll scissors and so on.
2,Overload protection
3,Stable quality
B,Fiveaxis machining center with high rigidity and paired processing turntable, ensuring station hole, positioning hole location accuracy requirements. Ensure concentricity upper and lower dies, greatly extend the life of the mold; simplified turntable structure, extending the life of the turntable; can be equipped with long-oriented mold, improve guiding precision molds to extend die life.
C,International pneumatic components and electrical components to ensure the reliability of the overall performance.

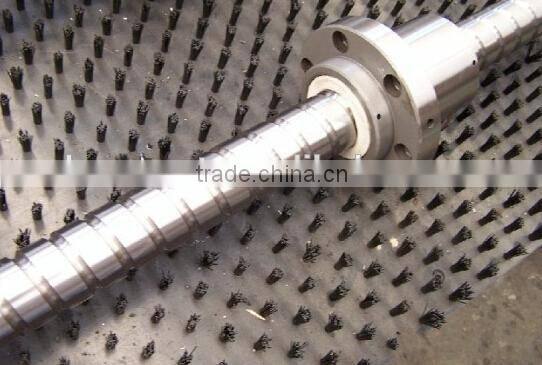

D,Using high-quality production of large lead ball screws, linear guides ensure that the transmission accuracy.
E,With a hard brush and ball mixing table, the machine not only reduces the noise and vibration at work, but also played a very good surface protection for processing sheet.
F,Using the O-closed steel welded body, by the second aging treatment, making removal more thoroughly stress.
G,Use floating clamp, clamping force big, stable feeding; integral dovetail carriage, rigid, clamp easy to move.
H,System with automatic clamp protection, to avoid damage to the mold and clamp, ensuring the operation of the program continuity.
I,Overall beam structure, enhanced rigidity, accurate positioning, in the case of high-speed feeding more stable, eliminate the workbench X, Y axis dynamic offset situation.
J,Equipped with a centralized lubrication system, oil can be fed directly into the lubrication points, reducing the friction of movement to pay, improve life.
CNC system
7.5-inch LCD color monitor
Rear port: Connect the machine control panel USB interface, RS232C, distributed and integrated I / O
1, Axis, independent digital control of three-dimensional coordinate movement.
2, the servo motor controlled precision ball screw drive and locking.
3, the three-dimensional coordinates can be manually fast, slow moving and incremental movement.
4, the absolute coordinates and relative coordinates programming.
5, screw backlash software compensation.
6, decimal data input.
7, using ISO standard NC code programming.
8, recall, modify, delete, insert other editing functions.
9, the dry run self-diagnostics, the program displays an error.
10, overcurrent, overvoltage, overheating, wrong phase protection.
11, breakpoints continue processing functions.
12, clamp pneumatic control
13, operating software: compatible with windows
14 Lubrication system: automatic lubrication system
15, the speed setting: stepless
Turret Punching Machine Techinal Parameter
|
Parameter
|
Unite |
B32(Closed Type) |
|
Nominal Force |
KN | 300 |
|
Max. Process Plate Size |
mm | 1250*2500 |
| Max. Process Plate Thickness |
mm | ≤6 |
| Max. Punch Hole Size |
mm | 88.9 |
| Max. Plate Weight |
kg | 150 |
| Number of Station |
set | 32 |
| Precision |
set | ±0.10 |
| Max. Punch Frequency |
hpm |
stroke 8mm-500 Stroke 30mm-100 |
| Max. Plate Move Speed |
m/min | 120 |
| Rotating Speed |
rpm | 30 |
| X Axis Stroke |
mm | 1250 |
| Y Axis Stroke |
mm | 1250 |
| Number of Control Axis |
set | 4 axis |
| CNC system |
Germany Siemens |
|
|
Air Pressure |
mpa | 0.55 |
| Dimension |
mm | 5200*3800*2200 |
| Motor Power |
kw | 4.5 |
| Machine Type |
Closed Type |

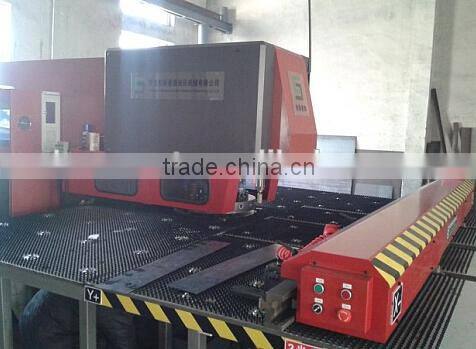

Turret Punching Machine Picture
Our Other Power Press Machine
1, usually in stock.
2, if not in stock, the lastest delivery date is 30 days
3, Package is wooden box, suitable for sea transport.
1, after sale service: for changing the spare parts, only charge the lowest cost in full life, in the first year, the spare parts are free
2, quality guarantee: 1 year for free
Besco Machinery Limited is professional on manufacturing mechanical power press, pneumatic power press, hydraulic press, press brake, shearing machine, plate bending and rolling machine, profile bending and rolling machines.
We have 18 years experience on manufacture metal working machines and we export our machines to all the worldwide market and have the best response from customers.
We will offer you our best quality machine and the after sale service.
following is the pictures of the equipments for manufacturing machines:
what will be the payment method?
answer: 30% down payment and the balance should be paid before shipment.
What will be the soonest delivery time?
answer: usuall in stock, if not, the latest delivery time is 30 days.
