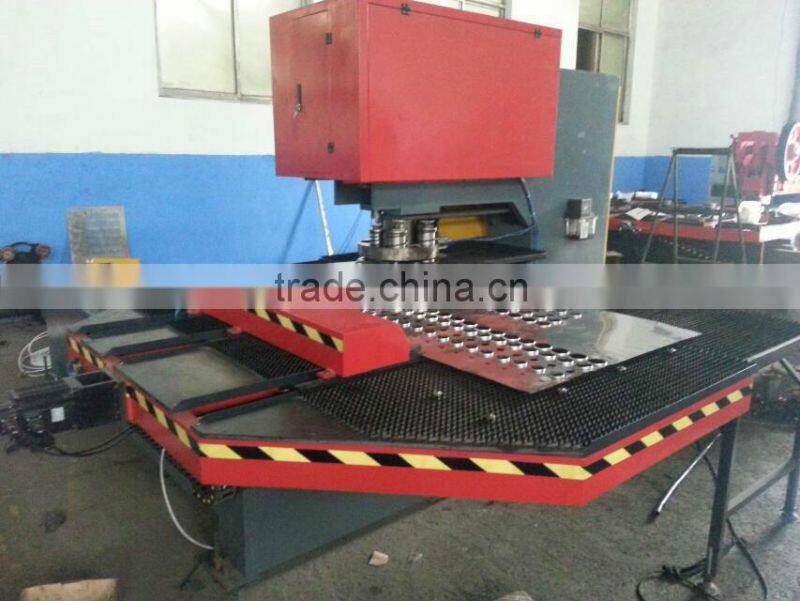

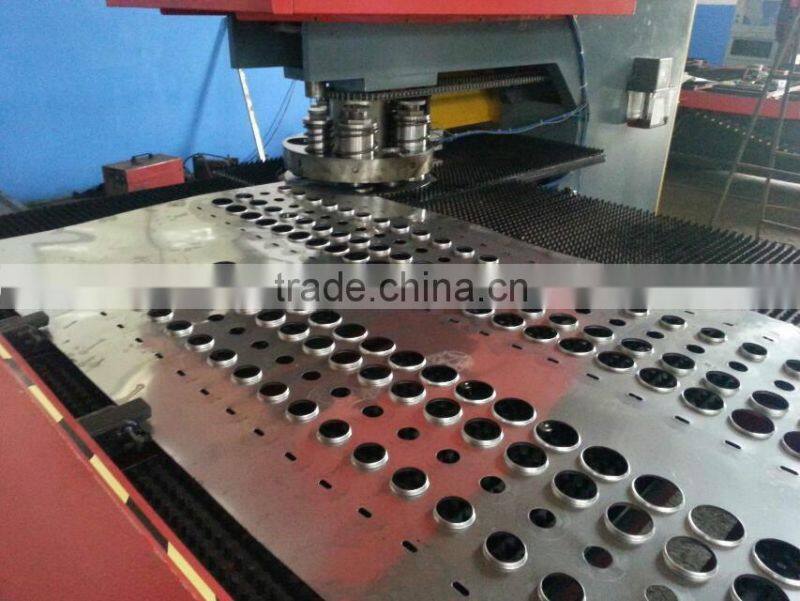

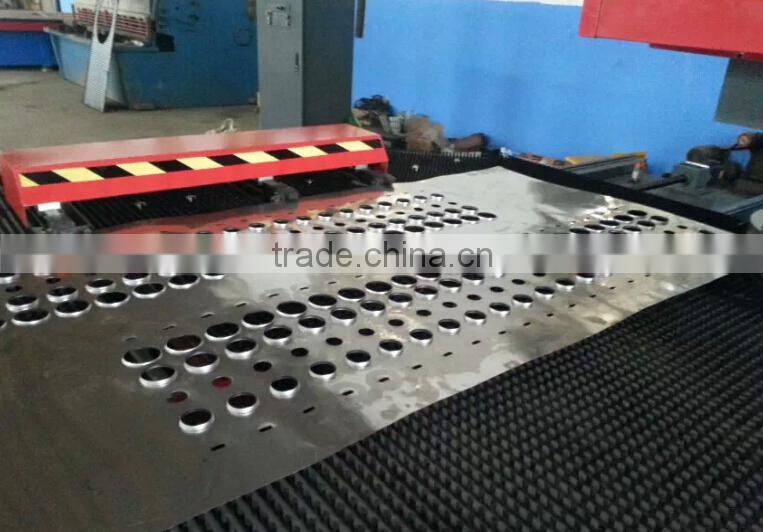

Sheet Metal CNC Feeder + Deep Thorat Power Press, Plate Feeding Table and Punch Press Machine for Dust Cover and Dust Cap
Punch press+CNC plate feeder
Mainly used for sheet metal signle or multiple punch processing, typically used in a variety of screens, solar, hardware blanking, ceilings, caps, recommended filtering equipment and simple box and so on, be widely used in multiple industry.
1, This equipment continues to use the orignal punch as a stamping body and the existing mold or with a manual six-station, together with the CNC feeder to form a set simple numerical control equipment. It is economical and practical. The lowest investment cost, maximum to acheive the CNC automation of sheet metal processing and improve product quality and efficiency. At the same time, it can reduce production costs and reduce the bumber of workers and labor intensity level.
2, CNC punch press dedicated system and simple to handle. It can be free upgraded for life.
3, Automatic conversion of Autocad drawings and with a mould library selection. The procedures are repeated positioning, one-button operation and set the plate loading and unloading points, point process, automatic diagnostics, automatic optimzation of processing path, point red, with red hybrid operation functions.
4, Optional six-station manual conversion turret tooling or a variety of multi-pin mold, progressive die to aacheive a variety of workpieces. The using is convenient.
Techaniccal Specification
|
Name |
Unit | Specification parameter |
| range of one time processing | mm | 2500*1250 |
| max sheet speed | m/min | 20/30 |
| max thickness of workpiece | mm | <=4 |
| machinging precision | mm | +-0.1 |
| bed structure |
|
foundry |
| mould | set | manual 6 station (optional) |
| air pressure | mpa | 0.55 |
| machine weight | ton | 2.0 |
| contour dimension | mm | 3200*2200*900 |
1, usually in stock.
2, if not in stock, the lastest delivery date is 30 days
3, Package is wooden box, suitable for sea transport.
1, after sale service: for changing the spare parts, only charge the lowest cost in full life, in the first year, the spare parts are free
2, quality guarantee: 1 year for free
Besco Machinery Limited is professional on manufacturing mechanical power press, pneumatic power press, hydraulic press, press brake, shearing machine, plate bending and rolling machine, profile bending and rolling machines.
We have 18 years experience on manufacture metal working machines and we export our machines to all the worldwide market and have the best response from customers.
We will offer you our best quality machine and the after sale service.
following is the pictures of the equipments for manufacturing machines:
what will be the payment method?
answer: 30% down payment and the balance should be paid before shipment.
What will be the soonest delivery time?
answer: usuall in stock, if not, the latest delivery time is 30 days.
