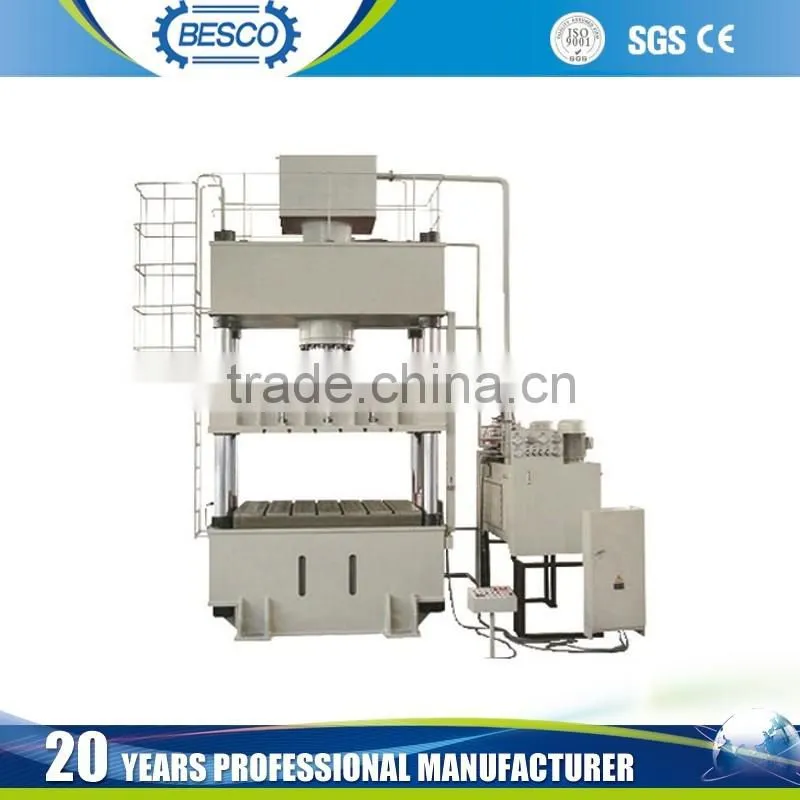

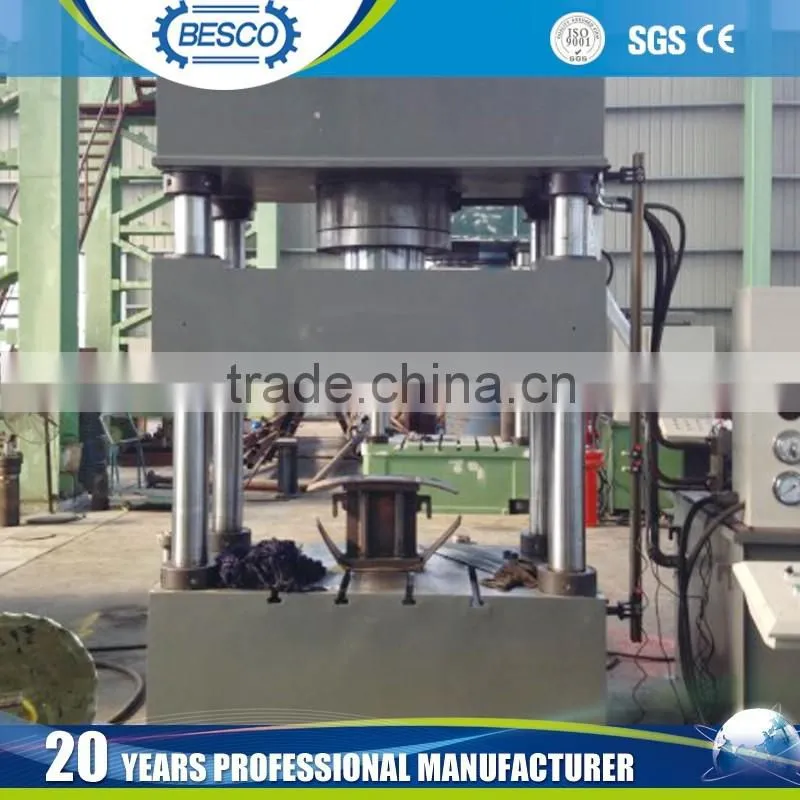

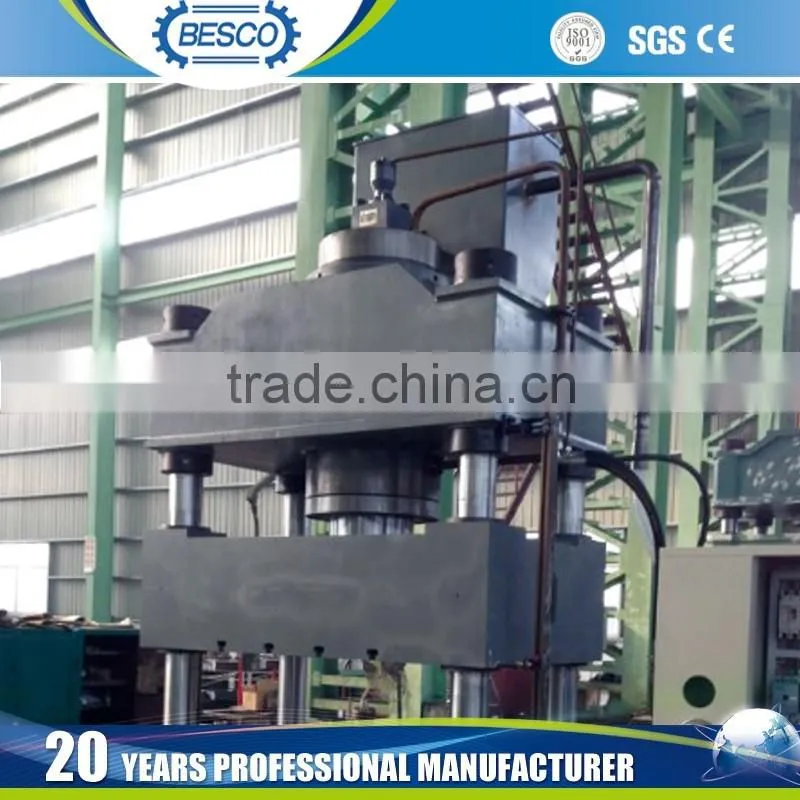

Machine Body
The machine use rod tightening combination frame structure, with sufficient strength and rigidity;The slider uses rail guide; machine and slider are welded steel, the material is Q235-A, using carbon dioxide gas shielded arc welding, the weld should be ground smooth, no weld slag and
streaming scars, remove inner stress after weld. Columns guideway using high-quality materials, the guide portion after quenching hardness of HRC50 or more, good wear resistance.
Tope beam, worktable, left and right columns, sliders use Q235-A welded, remove inner stress after weld.

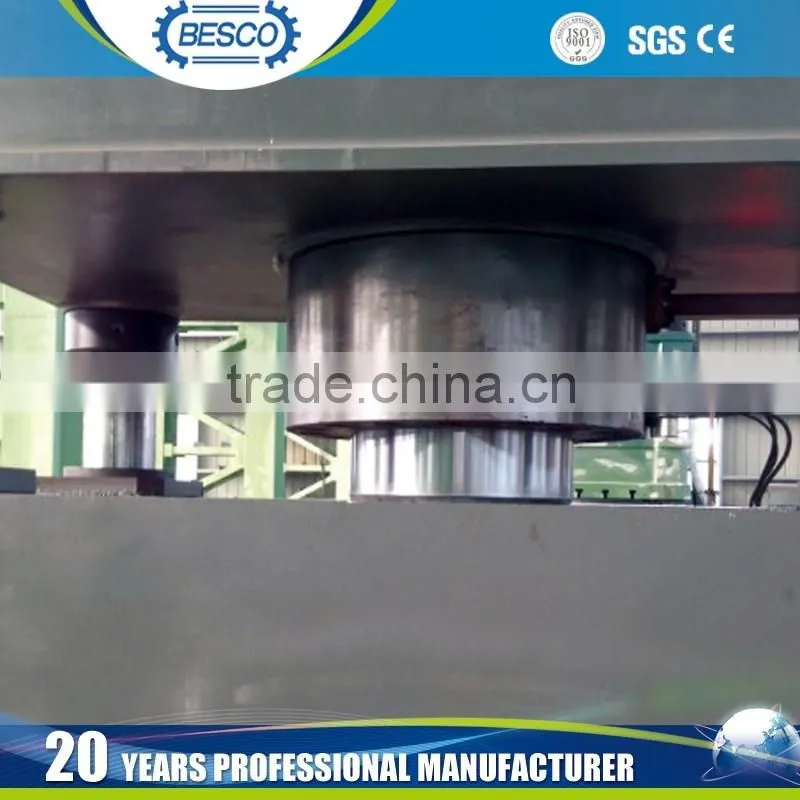

Oil Cylinder
Solo cylinder structure which is disposed on the upper beam hole, cylinder block uses 45 # forged steel,
material uniformity. Plunger rod surface hardening hardness is HRC45-50. The cylinder finishing by high-precision machine tools, cylinder bore after refining process to increase surface hardness and wear resistance
Hydraulic System
(1)Hydraulic system adopts advanced cartridge valve integrated system, the valve big flow, anti-pollution, flexible control, reliable performance, easy maintenance. Pilot solenoid valves are made of high quality products.
(2)Hydraulic system working pressure is 25MPa, the main valve should be two-way cartridge valves. Hydraulic system is with overload protection devices. Hydraulic piping system
design reasonable, piping arranged in an orderly and tidy, high and low pressure pipeline is obvious
color distinction.Hydraulic piping system should be reliable sealing flange connection priority connections, piping layout and tidy, and the use of shock and vibration-resistant gauge pipe clamps, pipe
phosphate processing, and then coated with rust-resistant paint.
(3)How to work Fixed stroke and fixed pressure; hydraulic machine operation: adjust, single cycle,
jog on the mold and work with automatic feeding.
(4)Fuel tank is divided into two parts, oil zone and oil back zone. Tank is steel plate welded structure,
which is installed with the oil level gauge, air filter, etc., tank was after pickling, passivation and anti-rust treatment, with separate oil filtration devices, and enables filtering device blockage accident alarm. Tank with oil level indication and oil level gauge (upper and lower) alarm device.
(5)Filling valve Description: filling valve is to provide the master cylinder to draw or drain oil.

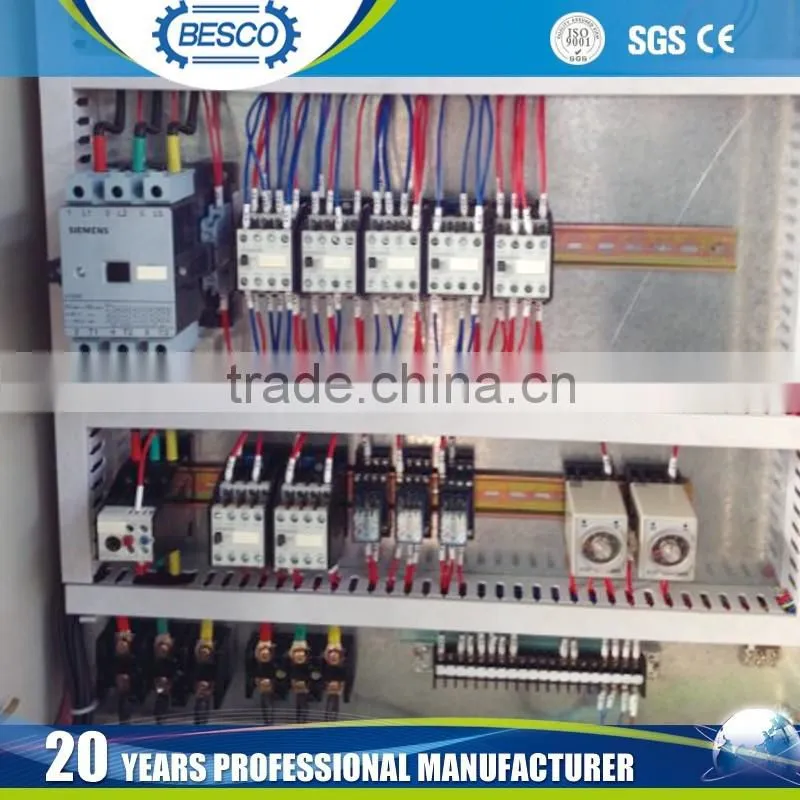

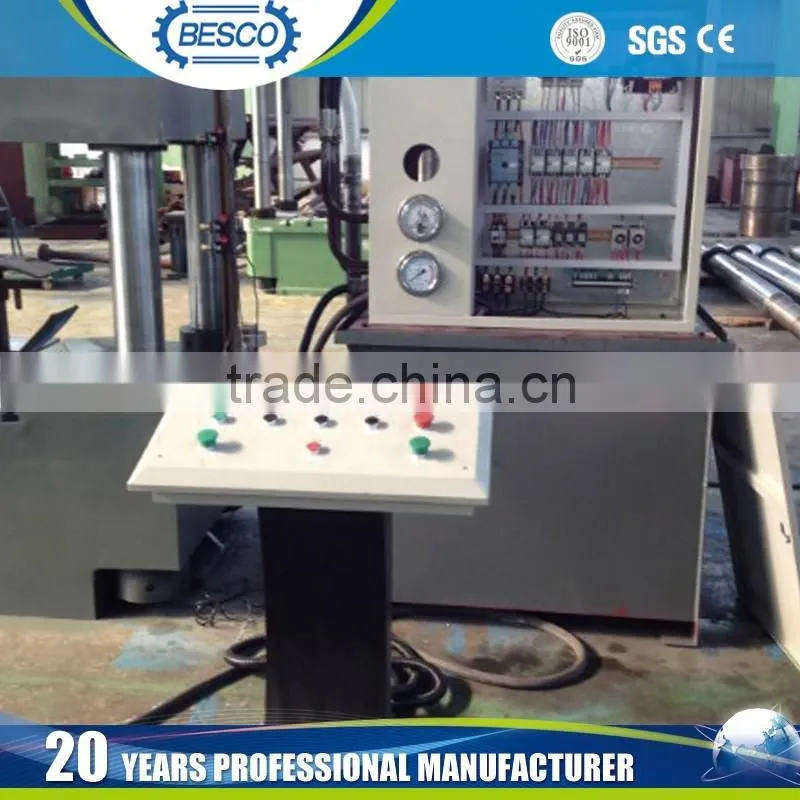

Safety Protection System
(1)stationary and emergency stop button: When an exception occurs press the "stationary" button
presses all the work stopped; press "stop" buttons, including motors are stopped.
(2)wo-hand operation button: hands downlink synchronization time 0.5 ~ 1S.
(3)the hydraulic circuit supporting Insurance: To prevent uncontrolled downward slide in the master
cylinder piston hydraulic bearing inferior vena setting interlock circuit, to ensure safety.
(4)overload protection: hydraulic system with hydraulic safety valve to ensure the press not overloaded work.Hydraulic Press Parameters ( Hydraulic Press,Hydraulic Press Machine For Sale )
Specification |
Nominal Pressure |
Ejector Pressure |
Maximum Hydraulic Work Force |
Maximum Slide of Stroke |
Maximum Stroke of Ejector Piston |
Maximum Distance Between Slide and Worktable |
Dimension of Machine (L-R) |
Dimension of Machine (B-A) |
Motor Power |
Y32-63 |
630 |
190 |
25 |
500 |
150 |
800 |
2000 |
1500 |
7.5 |
Y32-100 |
1000 |
190 |
25 |
600 |
200 |
900 |
2160 |
1504 |
7.5 |
Y32-200 |
2000 |
350 |
25 |
700 |
250 |
1100 |
2825 |
2060 |
15 |
Y32-315 |
3150 |
630 |
25 |
800 |
250 |
1250 |
3200 |
2100 |
22 |
Y32-500 |
5000 |
1000 |
25 |
900 |
350 |
1500 |
4060 |
3525 |
35 |
Besco Machinery Limited is professional on manufacturing mechanical power press, pneumatic power press, hydraulic press, press brake, shearing machine, plate bending and rolling machine, profile bending and rolling machines, cut to length and slitting line, etc.
We have 18 years experience on manufacture metal working machines and we export our machines to all the worldwide market and have the best response from customers.
We will offer you our best quality machine and the after sale service.
1. Free installation, trial start and adjustment, training. But the machine quotation does not include the charges of our engineers in the buyer’s country if you want, and the buyer must take charge of all the expenditure including airplane tickets of our engineers when in the buyer’s country to do the service!
2. Warranty period is1 year. During the warranty period we shall reply to the call or Fax from the user for the machine faults (expect for faults caused by no abiding by the relevant operation regulations, or by force injury) within 24 hours.
Question1: What is about the payment?
Answer:Payment:30% T/T as advance, 70% T/T before delivery.
Question2: what is about the delivery time?
Answer:That depend on the stocks.
