70 Watt LED SOLAR STREET LIGHT
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Overview
70 watt LED solar street light system is an intelligent, on or off-grid lighting system using green solar energy. The system consists of LED street lamp, solar panel, battery and system controller. It adopts solar as the energy source for the lamp to work automatically at night, and the battery supplies power for a designed working days.
ADVANTAGES OF 70 Watt LED SOLAR STREET LIGHT
|
- Energy Efficient - Maintainance Free - Easy Installation - No more running cost needed - Green Energy - Intellegent Controll |
|
70 Watt LED Solar Street Light
|
70 Watt LED SOLAR STREET LIGHT System Recommendations | |||||
Street Light Power |
Solar Panel |
Battery Capacity |
Battery Capacity |
System Voltage |
Pole Height |
20w |
50w×1pc |
50Ah×1pc |
70Ah×1pc |
12V DC |
3-4m |
30w |
70w×1pc |
70Ah×1pc |
120Ah×1pc |
4-6m |
|
40w |
90w×1pc |
90Ah×1pc |
150Ah×1pc |
4-6m |
|
50w |
120w×1pc |
120Ah×1pc |
90Ah×2pcs |
5-8m |
|
60w |
70w×2pcs |
70Ah×2pcs |
100Ah×2pcs |
24V DC |
5-8m |
80w |
90w×2pcs |
90Ah×2pcs |
150Ah×2pcs |
6-8m |
|
100w |
120w×2pcs |
120Ah×2pcs |
180Ah×2pcs |
8-12m |
|
120w |
150w×2pcs |
150Ah×2pcs |
200Ah×2pcs |
8-12m |
|
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
70 Watt LED Solar Street Light
Notes:
Working Time:
The system recommendation is based on lighting time 8 hours/day(The first 4 hours 100% power rate, The last 4 hours 50% power rate), other common applications include lighting time 6 hours/day(The first 3 hours 100% power rate, The last 3 hours 50% or 30% power rate);
Sunshine Duration(average hours per day):
The system recommendation is based on 4 hours per day.
When the above requirements change, the solar panel power and battery capacity could be different, please contact us for specific system configuration by providing the installation location and required lighting hours per day.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
70 Watt LED Solar Street Light

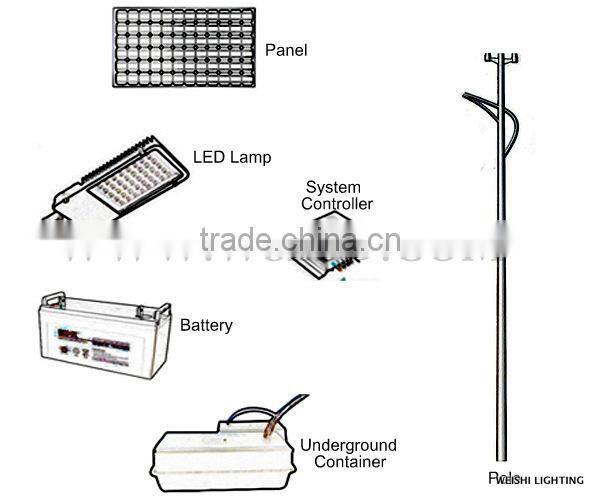

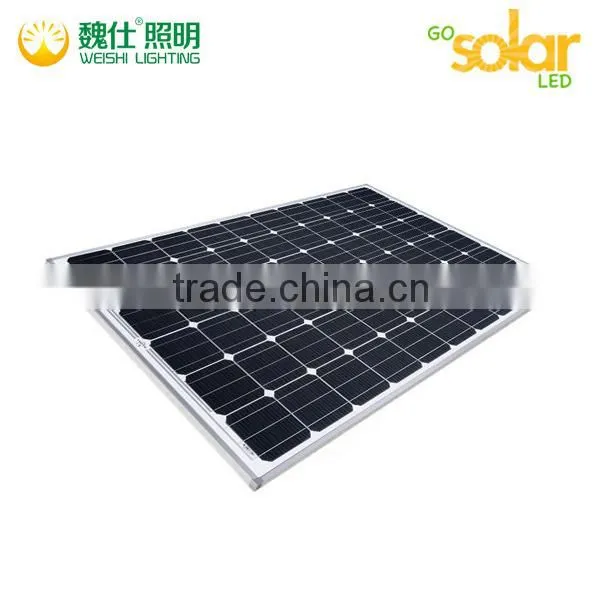

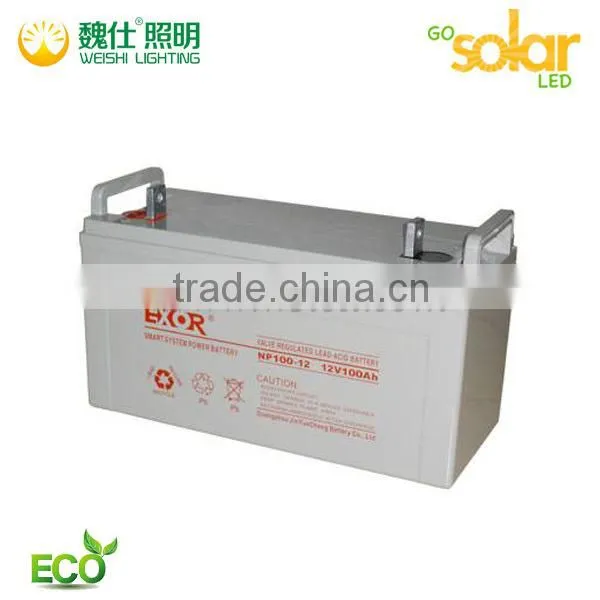

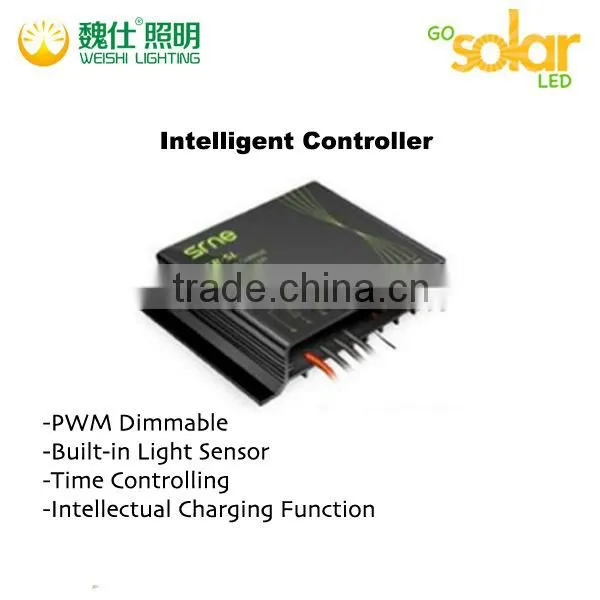

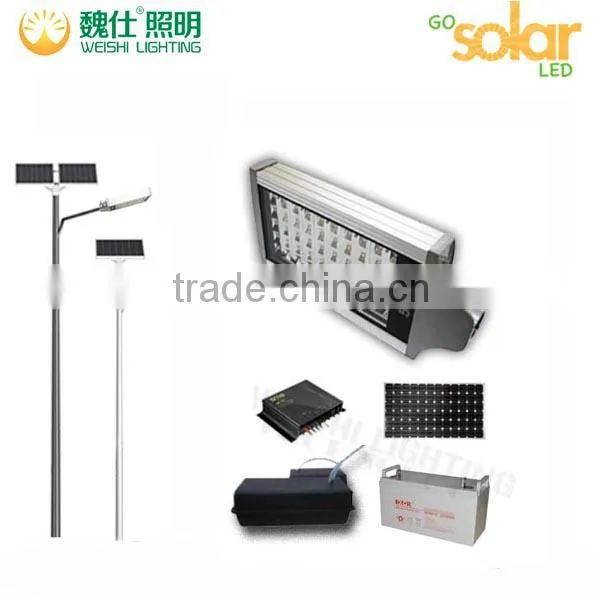

System Components:
----------------------------------------------------------
70 Watt LED Solar Street light

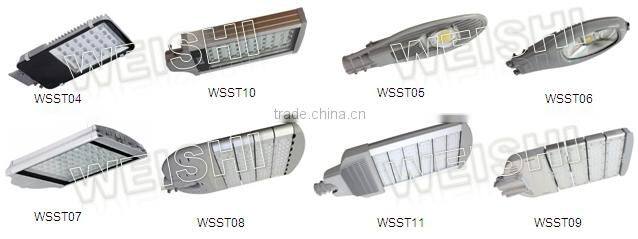

Lamp Options:
70 Watt LED Solar Street Light

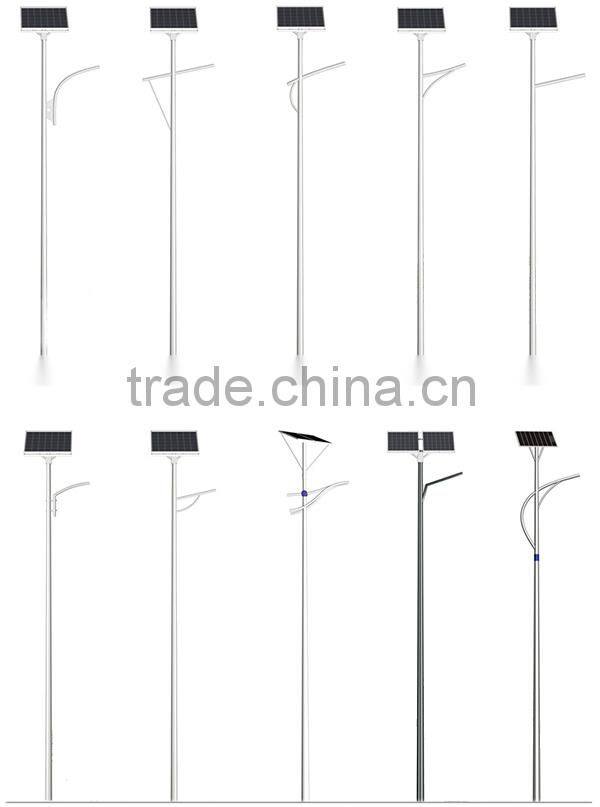

Pole Options:
-----------------------------------------------------------------------------------------------------------------------------
70 Watt LED Solar Street Light
MOQ, PRICE and PAYMENT TERMS:
1 set MOQ for samples
Term of Price: EXW
Payment Method Options: T/T, Paypal, Western Union, Moneygram.
Term of Payment: 30% paid in advance, the balance to be paid before shipping.
Lead Time and Delivery:
1) Lead Time: generally 7 days, also depends on the quantity ordered.
2) Delivery: air express or sea shipping.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

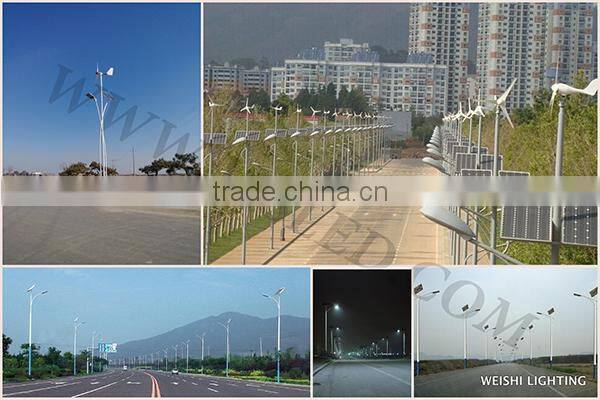

Solar Street Light
Projects:
Please Contact Us for more information:
Mr. Mo Chen
Manager of International Sales
Address: 1299 North Haidai Rd, Qingzhou City, Shandong Province, China. 262500
Website: http://lightingled.en.china.cn/
Mobile: +86 18363653799 Phone/Fax: +86 (0)536 – 3703377
