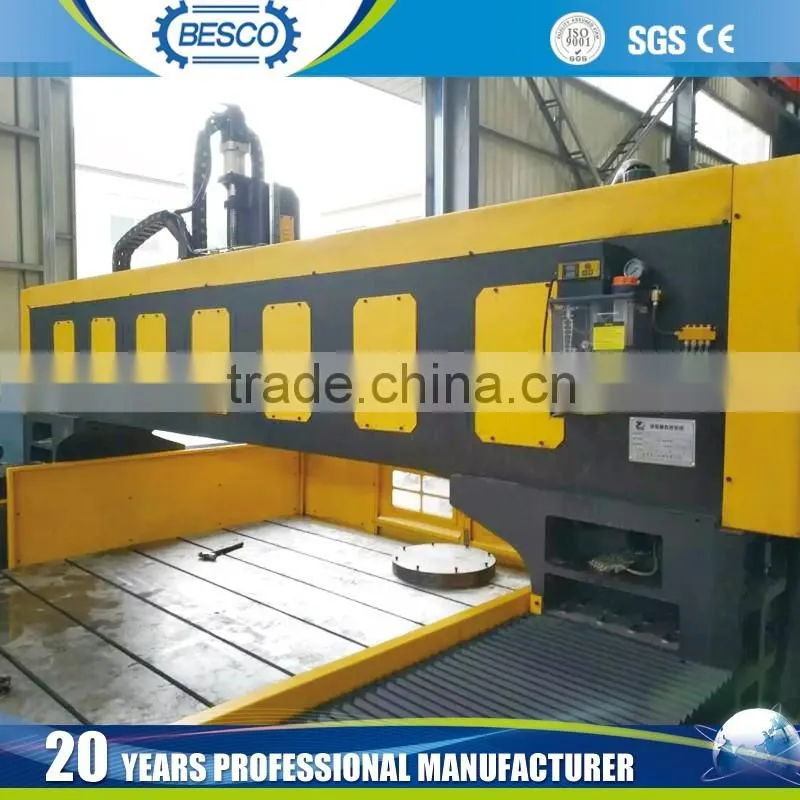

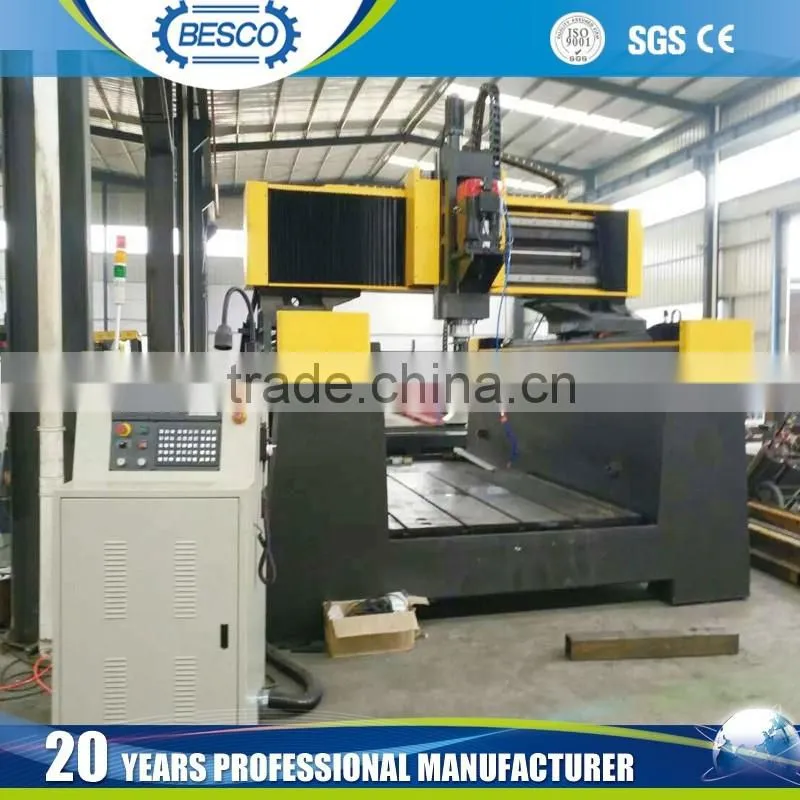

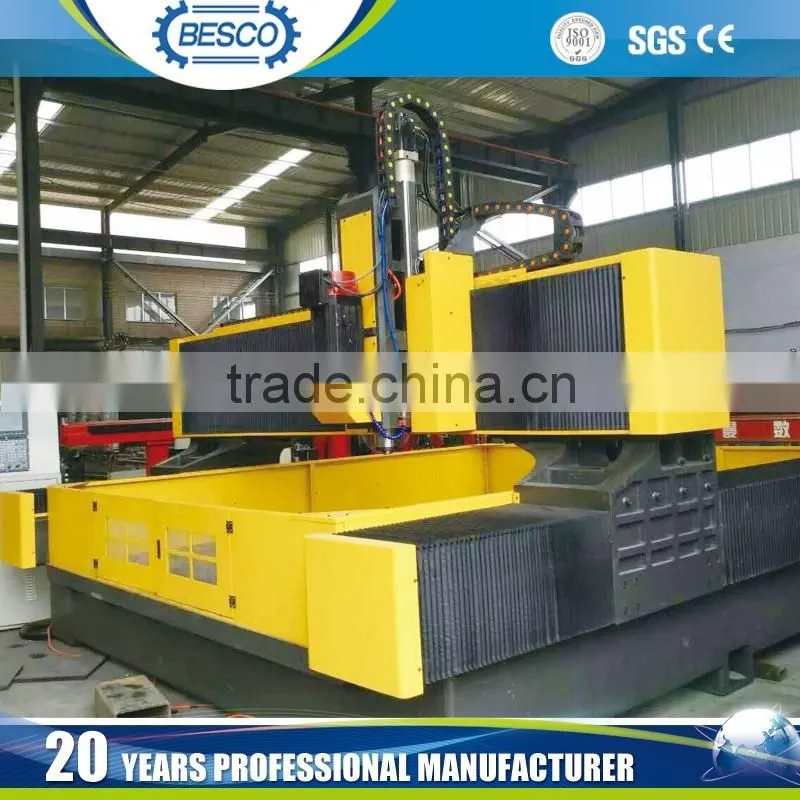

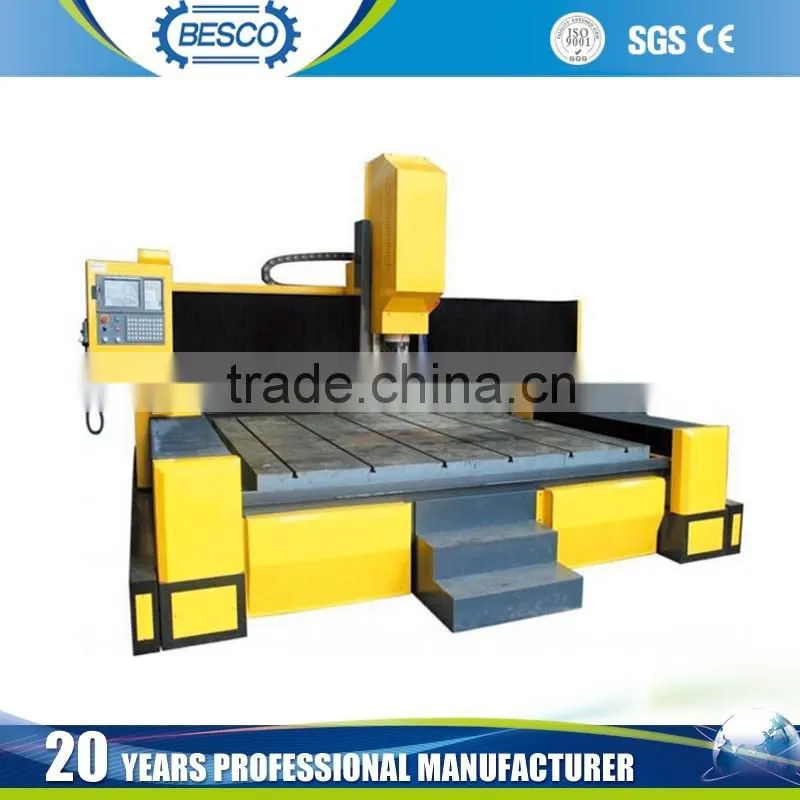

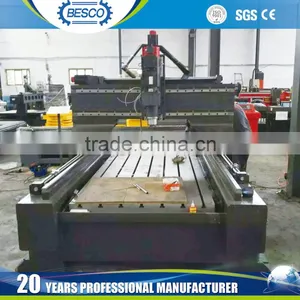

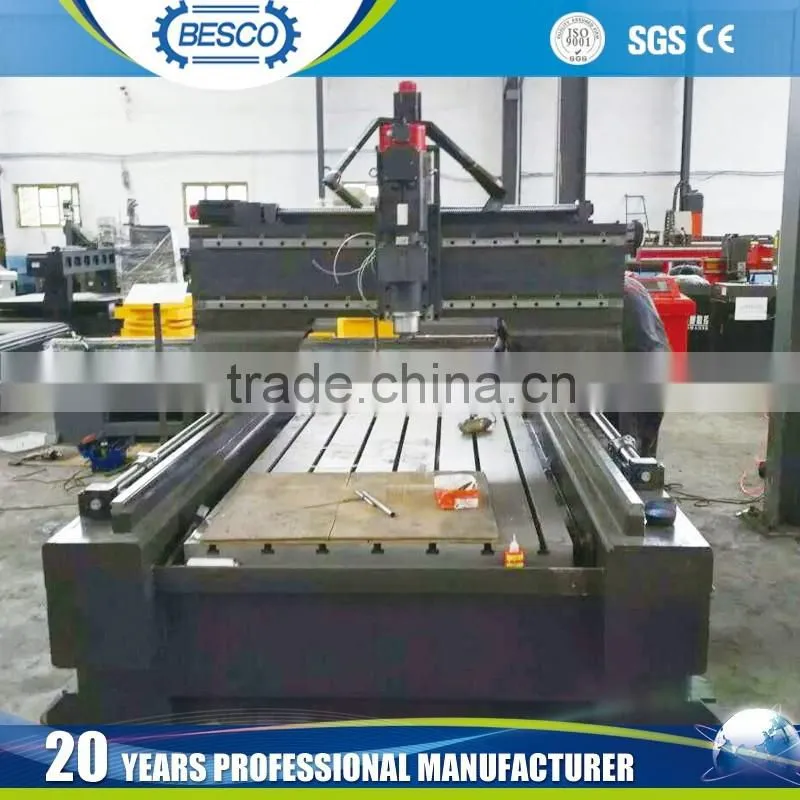

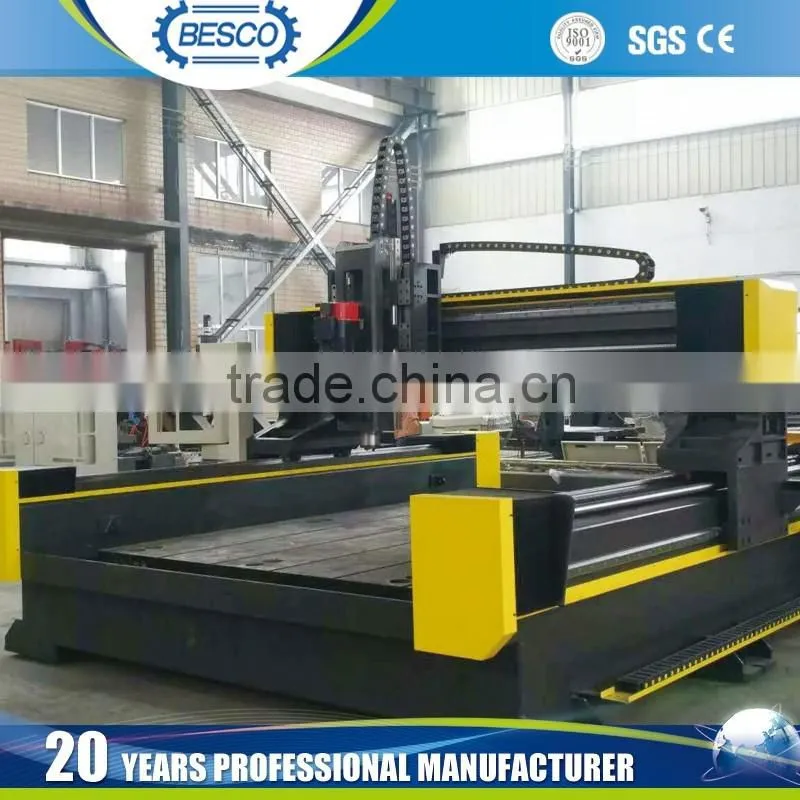

Gantry CNC drilling machine is mainly used for drilling and light milling for tube and plate type parts.
Construction of machine
1,machine mainly composed by the machine bed, table, gantry, power head, CNC system, cooling system and other components.
2,gantry cnc drilling machine use this type: gantry move and machine body, worktable fixed.
3, machine body, gantry is welded parts, high temperature annealing before process, second time annealing after half precision process to remove inner stress, to ensure the machine high precision and stable, process T slots from overal cast iron bed, ensure the worktable precision.
4, gantry cnc drilling machine has three cnc axis, machine body has heavy type liner guide rail, worktable can do longitudinal movement ( x axis ), the gantry beam is also equipped with linear guides, side plate make horizontal movement ( Y axis ), the slide plate has slider, power head has rail, power head make vertical movement on slide plate ( z axis ), x, z axis use cnc motor and ball screw, Y use drive.
5,Power head spindle with precision drilling spindle, frequency spindle motor, variable speed as needed. Clamping spindle drill or milling through ER32 chuck, drill swing can be controlled at 0.002, higher precision, high-speed cutting.
6, water-cooled machine, with coolant supply, recovery, recycling system, equipped with automatic oil lubrication system to ensure the smooth and effective working long linear guides and ball screws.
7, using the Adtech CNC drilling and milling professional engraving system, equipped with an RS232 interface and color display, Chinese operation interface, field / external USB input of the workpiece, easy to operate, equipped with high-speed digital hand wheel, make your operation more convenient .
8, machine x, y-axis rails are equipped with shields and screw. X-axis y-axis with organ type shield.
9, in order to ensure the reliability of key parts of the machine are imported quality product, see the imported directory.
the relevant technical parameters:
Maximum drilling diameter ....................... 1mm-11mm (high-speed straight shank twist drill)
Maximum drilling diameter ....................... 14mm-50mm (high-speed core drill)
Maximum milling diameter ....................... 18mm
Spindle taper .......................... ER32
Spindle travel ........................ 550mm can be customized according to customer demand
The maximum distance from the spindle nose countertops .......... 400mm
Spindle speed range ........................ 500-9000r / min
Spindle speeds ........................ 12 (depending on product specifications)
Spindle positioning accuracy ........................ 0.1mm
Spindle repeatability .................... 0.015mm
Gantry travel ............................ According to product specification may be
Working table size (length width) ............... According to product specification may be
Maximum table load (centered) .............. 1000kg
Main motor power .......................... 3.5-7.5KW
Triaxial rapid displacement ........................ 8000mm / min
Besco Machinery Limited is professional on manufacturing mechanical power press, pneumatic power press, hydraulic press, press brake, shearing machine, plate bending and rolling machine, profile bending and rolling machines, cut to length and slitting line, etc.
We have 18 years experience on manufacture metal working machines and we export our machines to all the worldwide market and have the best response from customers.
We will offer you our best quality machine and the after sale service.
1. Free installation, trial start and adjustment, training. But the machine quotation does not include the charges of our engineers in the buyer’s country if you want, and the buyer must take charge of all the expenditure including airplane tickets of our engineers when in the buyer’s country to do the service!
2. Warranty period is1 year. During the warranty period we shall reply to the call or Fax from the user for the machine faults (expect for faults caused by no abiding by the relevant operation regulations, or by force injury) within 24 hours.
Question1: What is about the payment?
Answer:Payment:30% T/T as advance, 70% T/T before delivery.
Question2: what is about the delivery time?
Answer:That depend on the stocks.
