Energy saving IP65 30W all in one solar street light

Name: Energy saving IP65 30W all in one solar street light
Brand: WEISHI
Price: USD $60 - 260 / Piece

FOB Price

USD $60 - $260 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Qingdao
Payment Terms:PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

LED Light Source:	Bridgelux High Power	Input Voltage(V):	12v DC	Lamp Power(W):	30
Lamp Luminous Flux(lm):	3300	Lamp Luminous Efficiency(lm/w):	120	Color Temperature(CCT):	Pure White
Working Temperature(℃):	-20, 55	Working Lifetime(Hour):	50000	Lamp Body Material:	Aluminum
IP Rating:	IP65	Certification:	C-tick, CCC, CE, CQC, EMC, LVD	Warranty(Year):	2
Place of Origin:	Shandong, China	Brand Name:	WEISHI	Model Number:	WSSS

Product Description

Product Introduction

All-in-ONE LED solar street light is a new generation solar street lighting which integrate all parts into one fixture to provide easy, flexible and convenient installation and application. The lamp design is smart and compact, adopts the highest standard components for the best performance, designed operation life is 5-10 years.

30w all in one solar street light 30w all in one solar street light 30w all in one solar street light 30w all in one solar street light

-Easy Installation -Maintenance Free -Green Energy -LED Light Source all in one solar street light

Specifications

8w-60w All in ONE Integrated LED Solar Street Light

30w all in one solar street light 30w all in one solar street light 30w all in one solar street light

Lamp Specifications
Lamp Rated Power	8w/12w/15w/20w/25w/30w/40w/50w/60w
LED Light Source	Bridgelux High Power LED
Light Source Efficiency	110-120m/w (White)
CRI	75Ra
Colour Temperature	White: 6000-6500K; Neutral White: 4000-4500K; Warm White: 2900-3200K
LED Life	50,000 Hours
Light Fixture Materials	Aluminum &Stainless Steel & Fluorine carton
Protection Grade	IP65

Solar Panel
Type	Monocrystalline Silicon
Efficiency	21%
Materials	High transmission tempered glass
Life Span	25 Years

Battery
Battery Type		Lithium Battery (LiFePO₄)
Charge Time		7-10 hours (with efficient sunlight)
Designed Backup Days		Around 3 overcast days
Cycle Times		2,000 times

Light Power	8w	12w	15w	20w	25w	30w	40w	50w	60w
Light Module Qty	1pc			2pcs				4pcs
Beam Angle	65°×120°
PV Module (Watt)	15	18	30	40	50	60	65	70	80
Battery Capacity (Ah)	6	8	10	18	21	24	30	36	42
Mounting Height (m)	3-4	3-4	4-5	5-6	5-6	6-7	6-8	7-8	7-10
PIR Motion Sensor	●	●	●	●	●	●	●	●	●
Supporting Arm	○	○	○	○	●	●	●	●	●

Working Mode	Movement Sensor:	Sensing distance is 6-12m
	Working Time:	The lamp automatically turn on after sunset, and off when sunrise.
	Default Working Mode: During working time, when there are movements detected, the lamp switches to 100% capacity, when movements gone, the lamp turns to 30% capacity to save power.
	Alternative Working Mode: during the working time, the first few hours on full capacity, the rest time on power saving mode; full capacity and power saving mode's working time can be adjusted based on customers' requirements.

Product Description

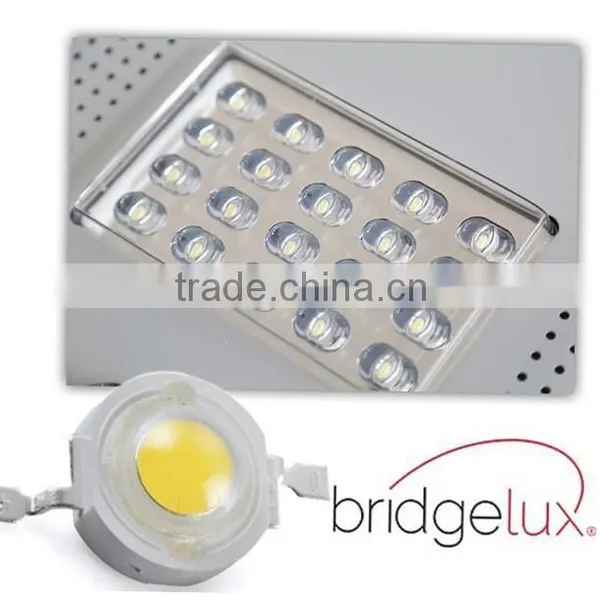

LED Light Source

Adopting high power chip Bridgelux LEDs, high reliability in outdoor applications.

30w all in one solar street light

-45mil Chips

-Up to 130lm/w

-CRI>75Ra

-50,000h life span

-Wide color temperature options

Low color shifting and low light decay

Solar Panel

- Monocrystalline Silicon Type

- Top grade solar sells

- Up to 21% charging efficiency

- 25 years life span

30w all in one solar street light

System Controller

- Top brand and high reliability

- IP67 aluminum case

-Intellectual functions and multi-time dimming control

30w all in one solar street light

Motion Sensor

IP65 Waterproof Sensor, works with built-in indicator light, working conditions of the system can be easily checked
30w all in one solar street light

Battery

LiFePO4 Lithium Battery adopted

12 hours per night, 3-5 nights power backup; 2000 times life cycle

all in one solar street light

Applications

Certifications

Please Contact Us for more information:

30w all in one solar street light
