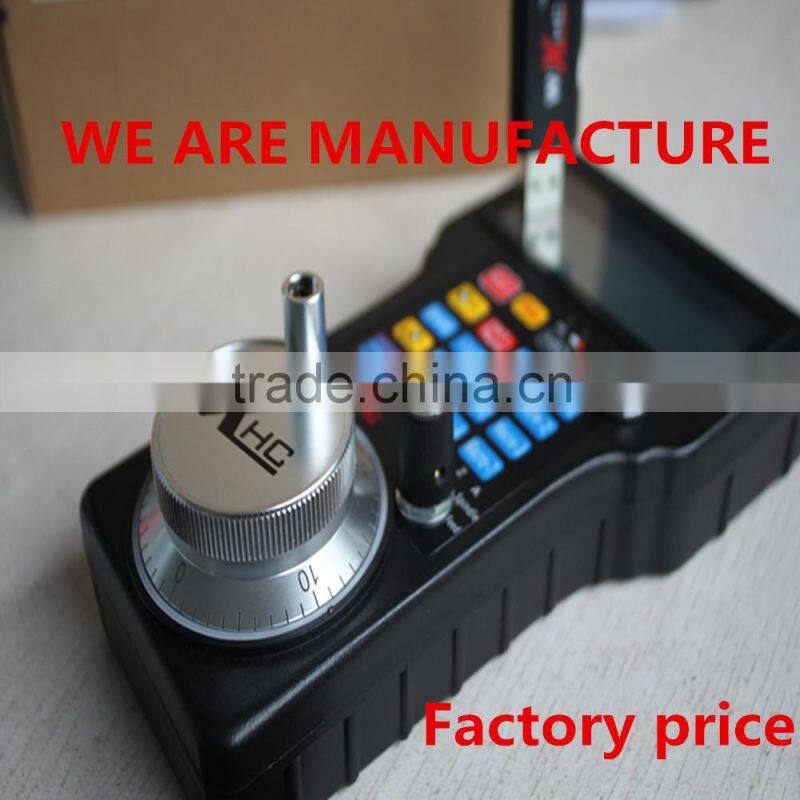

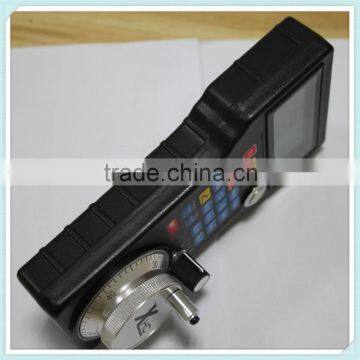

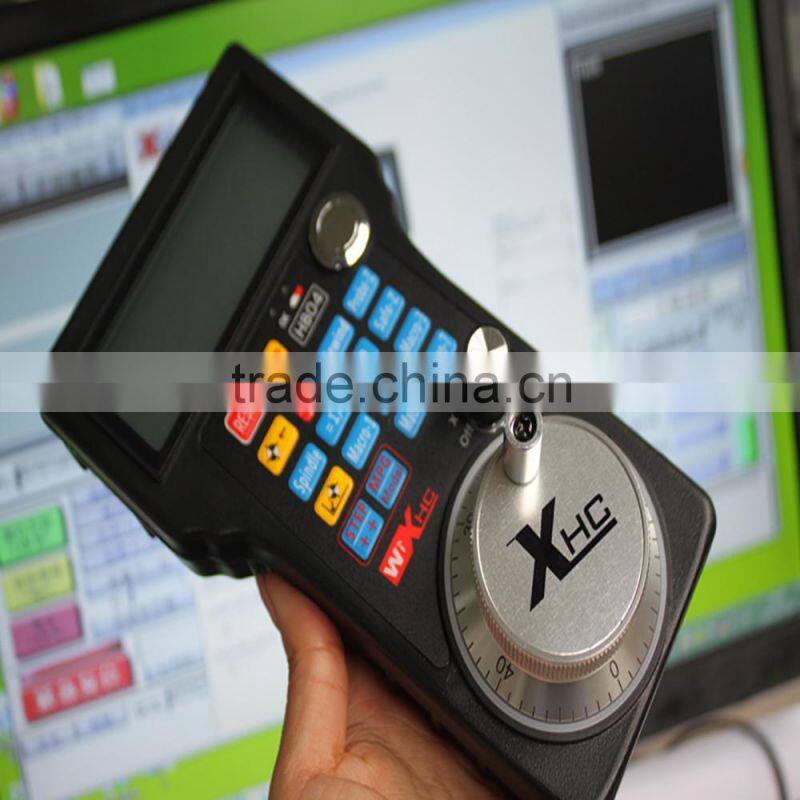

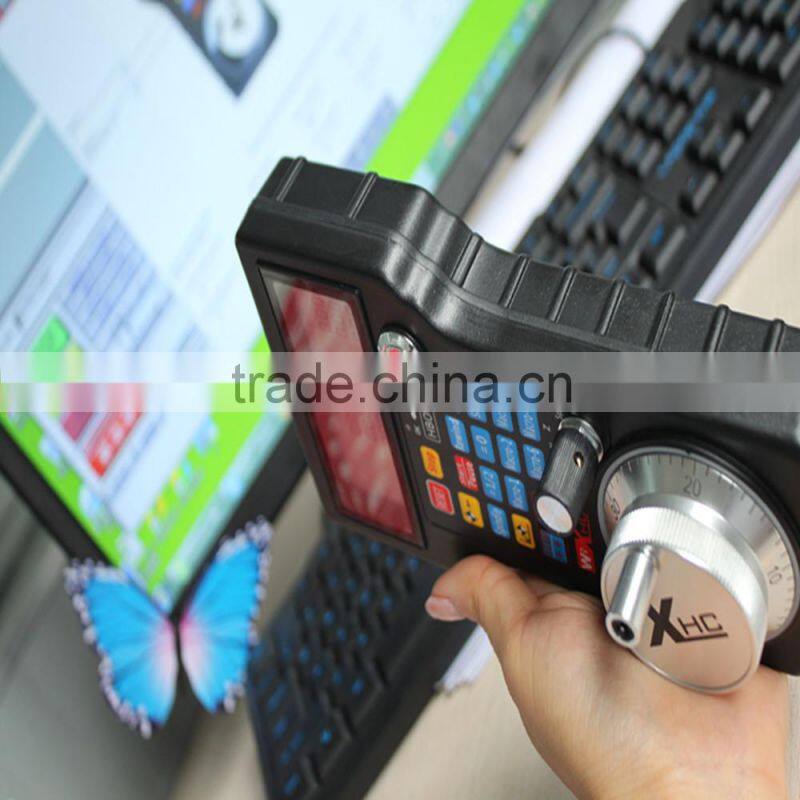

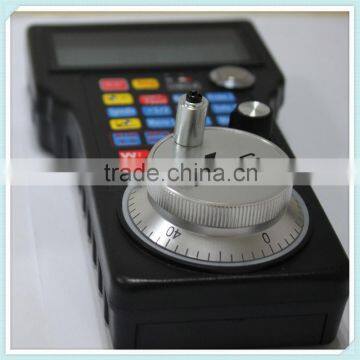

Help CenterThe Mach3 4 Axis Wireless Usb Controller for Lathe Cnc Machine,LCD Screen,CE Certification
Related Products
-
2015 New Wireless Cnc Router Controller With Usb, LCD, for 4 Axis Mach3,NegotiableMOQ: 10 Sets -
HOT SALE!!! 5 Axis Cnc Remote is USB Wireless, for MACH3 Cnc Machine, CE CertificationNegotiableMOQ: 10 Sets
-
XHC 100PPR Manual Pulse Generator Handwheel Mach3 Cnc 4 Axis Wireless RemoteUS$ 113 - 113MOQ: 1 Set
-
2016 NEW Mach3 Cnc Router Machine 4 Axis Wireless Usb Cnc Remote HandwheelUS$ 75 - 113MOQ: 1 Set
-
100PPR Manual Pulse Generator CNC Mach3 System Cnc Machine 6 Axis Handwheel MPGUS$ 124 - 124MOQ: 1 Set
Wireless controller machine,Mach3 cnc controller,machine tool handwheel
we are manufacturer, these products are in owns! We have 10 experience in Technology development!!!!!!!
| MODEL | WHB04-L | 40 meters wireless distance with electronic handwheel |
| WHB04-S | 40 meters wireless distance without electronic handwheel | |
| LHB04 | with 5 meters USB cable with electronic handwheel |
RF Performance Description
The RF is Standdard with 2.4G ISM,the Tx power is 0DB and the RX sensitivity is -98DB
The RF has 64 channels,the channel gap is 1Mhz
The protocol Designed with high performance;Low power consumption;Automatic Learning ID Number
To jump frequency Adapttively when noised,which can work with 2.4G wireless Mic,Wlan and Bluetooth etc.devices.
64 sets Wireless Handle work fine at the same time in one room,with no-interference each other

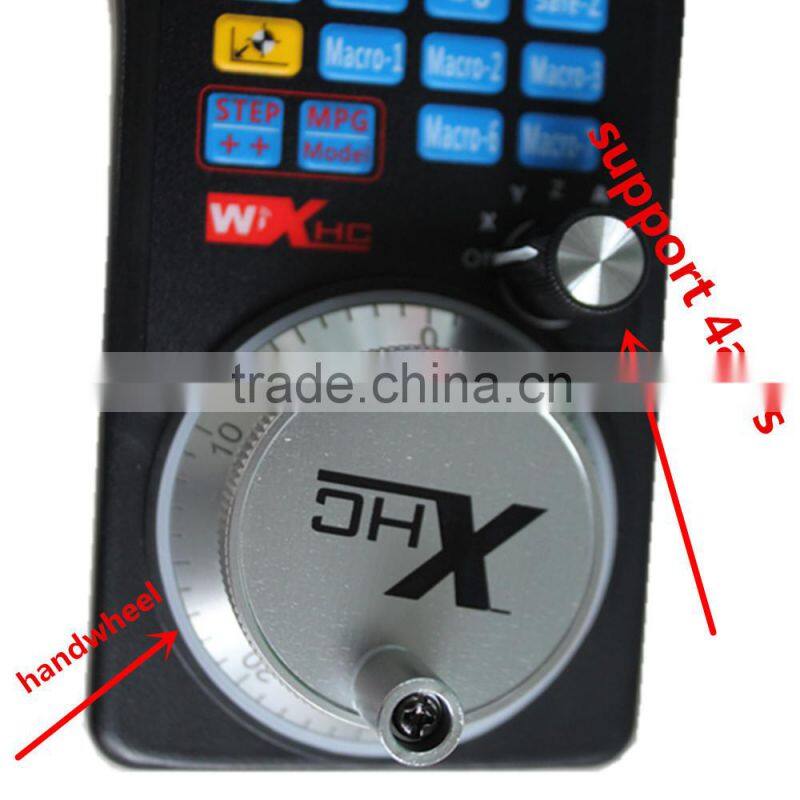

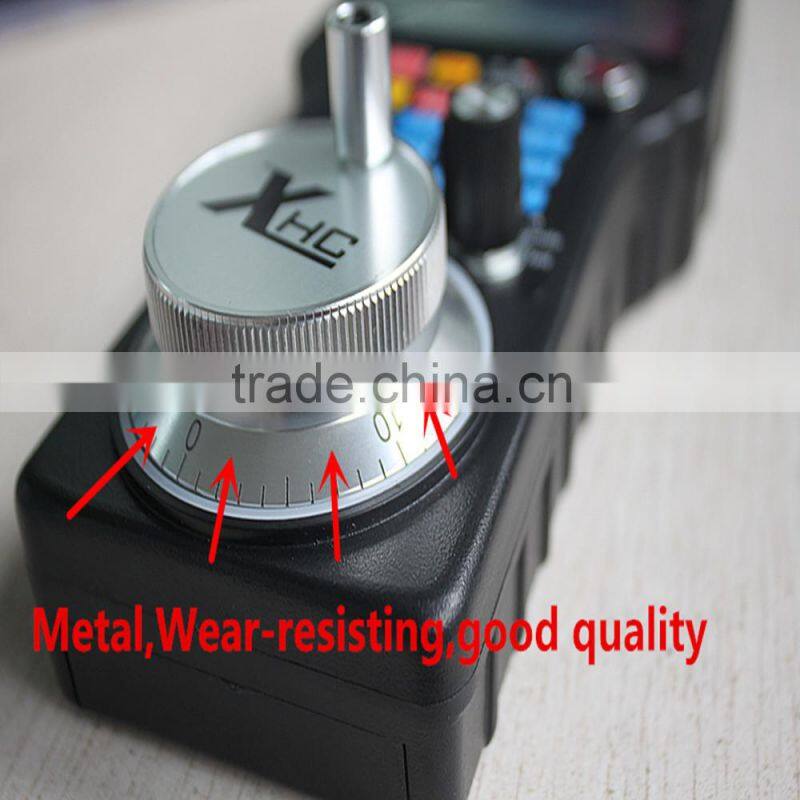

has the function of the hand wheel,100PPR the manual pulse generator output

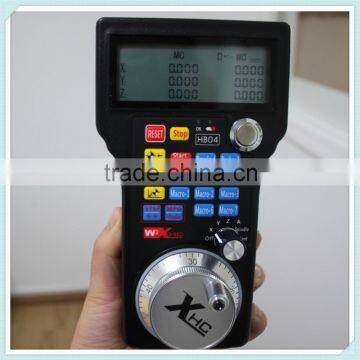

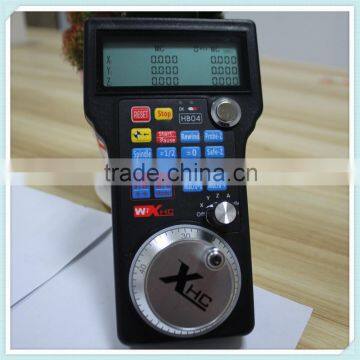

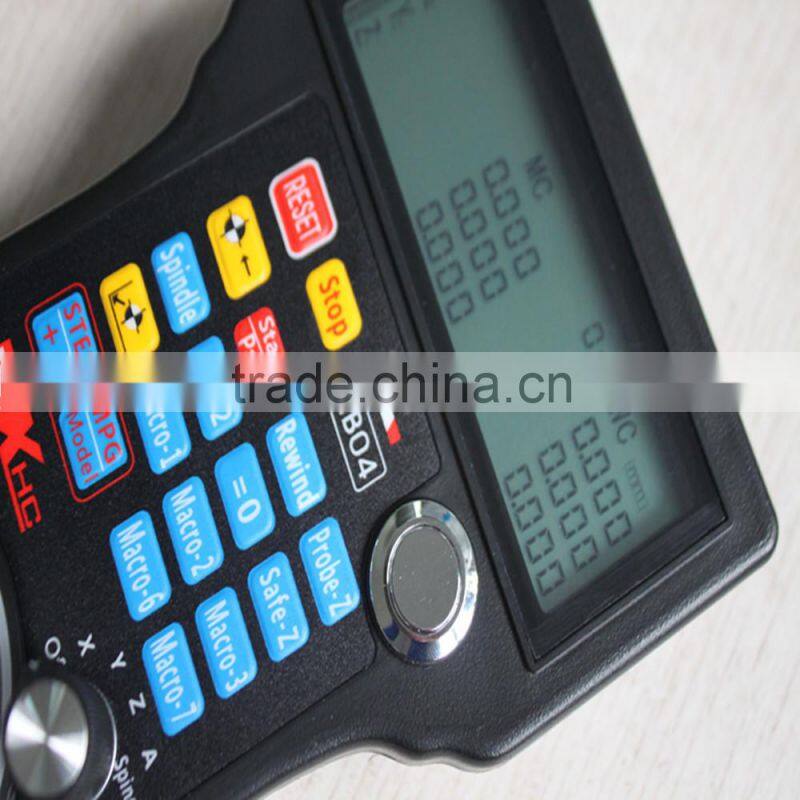

display,real-time display of the machine the workpiece coordinates,mechanical coordinates .Coordinates X,Y,and Z three-axis with the screen display

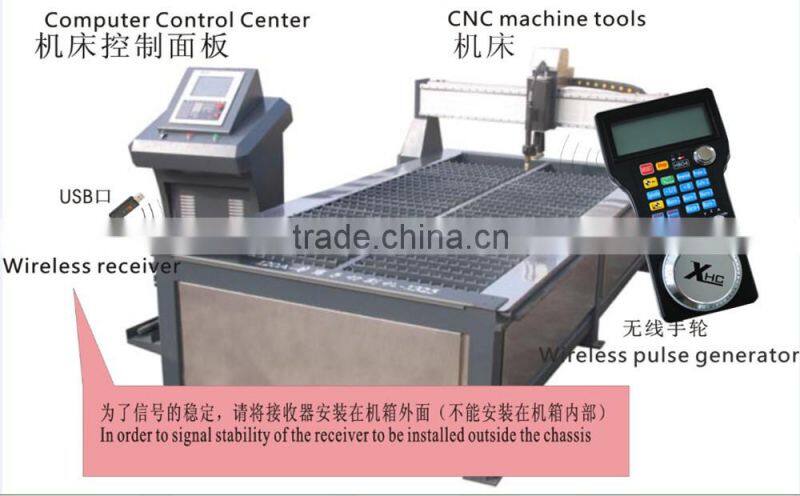

USE OF SCHEMATIC
XHC-ShuttlePro Insallation
1.Before using the hand wheel,install the driver file,mode of operation is as follows:
2.When MACH3 is installed,there will be a folder created named "Plugins" in the MACH3 folder.This folder is the location to put and Plugin files that you want Mach3 to know about.Place"XHC-ShuttlePro.dll" in the MACH3Plugins folder.Check and make sure it is there
3.Setup diver for Probe Z surface function;M930.m1s copy the installation directory to the MACH3.mach3macrosmach3Mill
4.Now that the XHC-ShuttlePro.dll file is in MACH3Plugins,the next step is to connect the huttlePro.If you are certain that your ShuttlePro is working and your hardware is working then you can simply plug in the ShuttlePro to one of the USB ports
5.Once the ShuttlePro is connected ,start MACH3 and go to the "Config" menu choice and select "ConfigPlugins".You should see the ShuttlePro choice with a green checkmark means that Mach3 found the ShuttlePro on tartuo.Click the "CONFIG"in yellow and set the buttons as you wish.
6.Once you have the proper button selected in the MACH3 ShuttlePro Plugin CONFIG menu, your Shuttle device should be working properly.
RF Performance Description
| No | Performance or Parameters Description |
| 1 | The RF is Standard with 2.4G ISM,the Tx power is 0DB and the RF sensitivity is -98DB |
| 2 | The RF has 64 channels ,the channel gap is 1Mhz |
| 3 | The transmission distance is further than 15 meters with no barrier |
| 4 | The protocol Designed with high performance,Low power consumption,Automatic learning ID Number |
| 5 | To jump frequency Adaptively when nosed,which can work 2.4G wierless Mic,Wlan and Bluetooth etc.devices |
| 6 | 32 sets Wireless Handle work fine at the same time in one room,with no-interference each other |
DC Description
| Name | Voltage | Current | Note |
|
Wireless USB Receiver |
4.5v~5.0v | <50mA | |
| Wireless Handle | 1.5v~3.0v | <2mA |
Use of time More than 2 months Use Two 2000MAH Battery |
| Note:Wireless Handle Need Two AA Battery,When the Low Voltage indicator LED light,the battery is completely ,Proposed to replace the battery | |||
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
an style='color:red'>25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea.
