Best Price Guaranteed 8w - 60w Solar Street Courtyard Light

Best Price Guaranteed 8w - 60w Solar Street Courtyard Light thumbnail-1
Best Price Guaranteed 8w - 60w Solar Street Courtyard Light thumbnail-2
Best Price Guaranteed 8w - 60w Solar Street Courtyard Light thumbnail-3
Best Price Guaranteed 8w - 60w Solar Street Courtyard Light thumbnail-4
Best Price Guaranteed 8w - 60w Solar Street Courtyard Light thumbnail-5
Best Price Guaranteed 8w - 60w Solar Street Courtyard Light thumbnail-6
Best Price Guaranteed 8w - 60w Solar Street Courtyard Light photo-1
Best Price Guaranteed 8w - 60w Solar Street Courtyard Light photo-2
Best Price Guaranteed 8w - 60w Solar Street Courtyard Light photo-3
Best Price Guaranteed 8w - 60w Solar Street Courtyard Light photo-4
Best Price Guaranteed 8w - 60w Solar Street Courtyard Light photo-5
Best Price Guaranteed 8w - 60w Solar Street Courtyard Light photo-6
US$ 60 - 260 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Bridgelux High Power
Input Voltage(V):
12v DC
Lamp Power(W):
30
Contact Supplier Request Quote Chat Now
Shandong Weishi Lighting Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Bridgelux High Power
Input Voltage(V) 12v DC
Lamp Power(W) 30
Lamp Luminous Flux(lm) 3300
Lamp Luminous Efficiency(lm/w) 120
Color Temperature(CCT) Pure White
Working Temperature(℃) -20, 55
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP65
Certification C-tick, CCC, CE, CQC, EMC, LVD
Warranty(Year) 2
Place of Origin Shandong, China
Brand Name WEISHI
Model Number WSSS

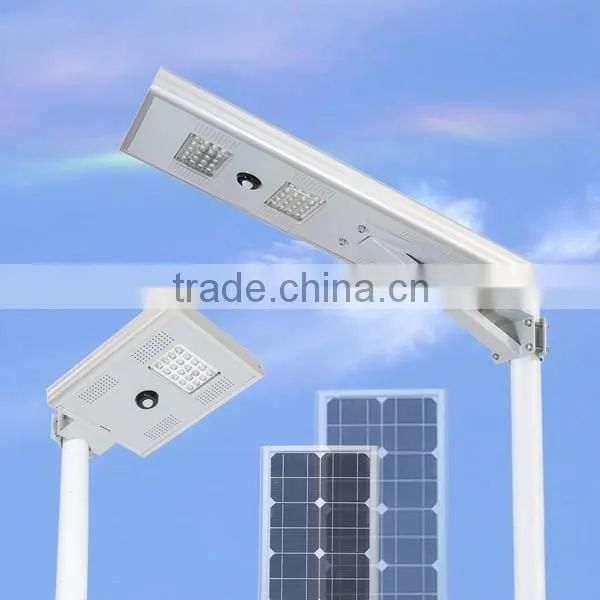

Product Introduction

All-in-ONE LED solar street light is a new generation solar street lighting which integrate all parts into one fixture to provide easy, flexible and convenient installation and application. The lamp design is smart and compact, adopts the highest standard components for the best performance, designed operation life is 5-10 years.

solar street courtyard light

-Easy Installation    -Maintenance Free   -Green Energy   -LED Light Source   all in one solar street light

Specifications

                                  8w-60w All in ONE Integrated solar street courtyard light

solar street courtyard light
Lamp Specifications
Lamp Rated Power
8w/12w/15w/20w/25w/30w/40w/50w/60w
LED Light Source
Bridgelux High Power LED
Light Source Efficiency
110-120m/w (White)
CRI
75Ra

Colour Temperature
White:               6000-6500K;
Neutral White: 4000-4500K;
Warm White:    2900-3200K
LED Life
50,000 Hours
Light Fixture Materials
Aluminum &Stainless Steel & Fluorine carton
Protection Grade
IP65
Solar Panel
Type
Monocrystalline Silicon
Efficiency
21%
Materials
High transmission tempered glass
Life Span
25 Years
Battery
Battery Type
Lithium Battery (LiFePO4)
Charge Time
7-10 hours (with efficient sunlight)
Designed Backup Days
Around 3 overcast days
Cycle Times
2,000 times
Light Power
8w
12w
15w
20w
25w
30w
40w
50w
60w
Light Module Qty
1pc
2pcs
4pcs

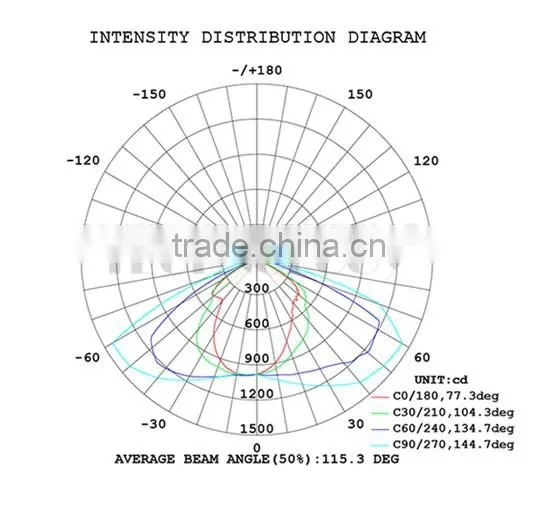

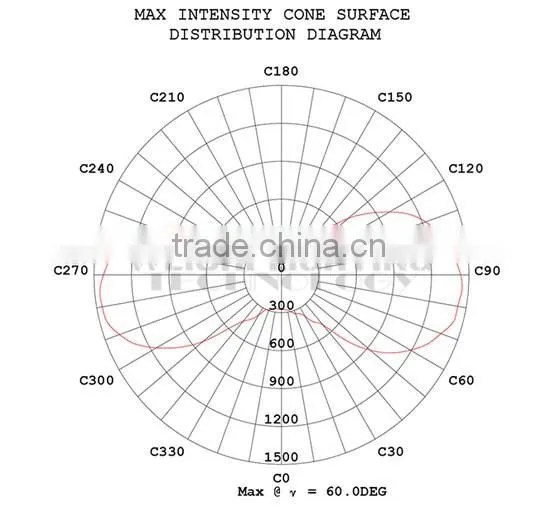

Beam Angle
65°×120°
PV Module (Watt)
15
18
30
40
50
60
65
70
80
Battery Capacity (Ah)
6
8
10
18
21
24
30
36
42
Mounting Height (m)
3-4
3-4
4-5
5-6
5-6
6-7
6-8
7-8
7-10
PIR Motion Sensor
●
●
●
●
●
●
●
●
●
Supporting Arm
○
○
○
○
●
●
●
●
●




Working Mode
Movement Sensor:
Sensing distance is 6-12m
Working Time:
The lamp automatically turn on after sunset, and off when sunrise.
Default Working Mode: During working time, when there are movements detected, the lamp switches to 100% capacity, when movements gone, the lamp turns to 30% capacity to save power.
Alternative Working Mode: during the working time, the first few hours on full capacity, the rest time on power saving mode; full capacity and power saving mode's working time can be adjusted based on customers' requirements.
Product Description

LED Light Source

Adopting high power chip Bridgelux LEDs, high reliability in outdoor applications.

solar street courtyard light

-45mil Chips

-Up to 130lm/w

-CRI>75Ra

-50,000h life span

-Wide color temperature options

Low color shifting and low light decay

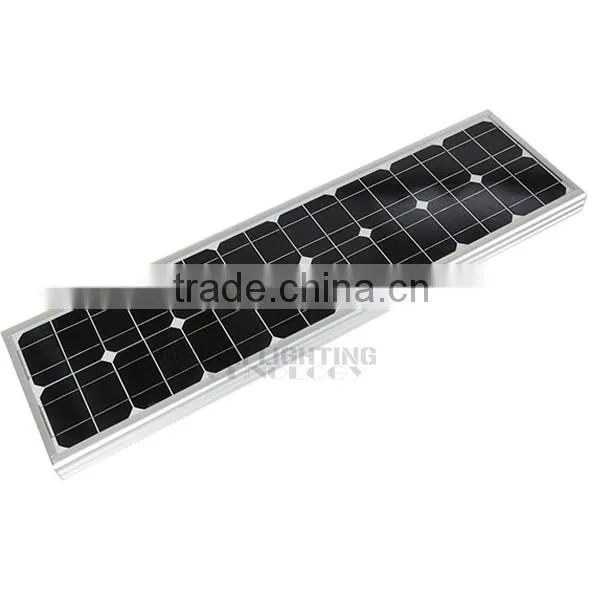

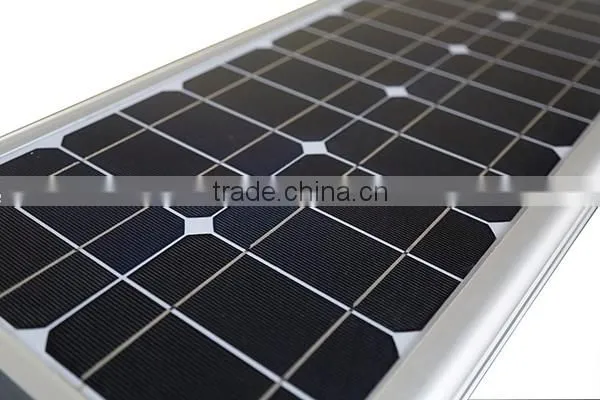

Solar Panel

- Monocrystalline Silicon Type

- Top grade solar sells

- Up to 21% charging efficiency

- 25 years life span

solar street courtyard light

all in one solar street light all in one solar street light

all in one solar street light all in one solar street light

solar street light

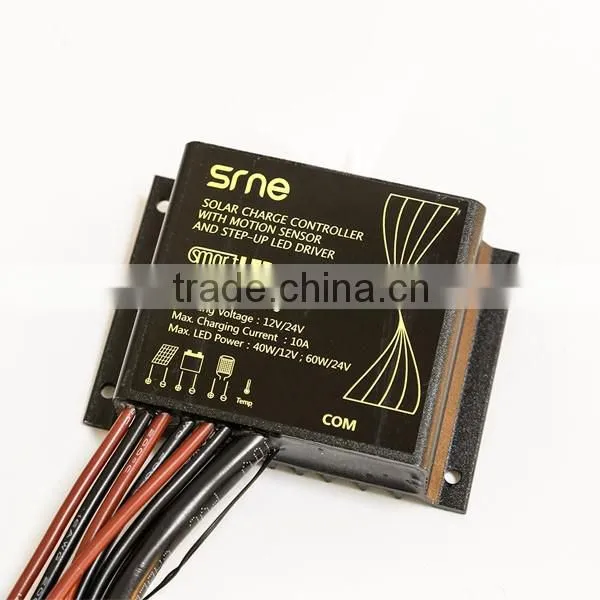

System Controller

- Top brand and high reliability

- IP67 aluminum case

-Intellectual functions and multi-time  dimming control

solar street courtyard light

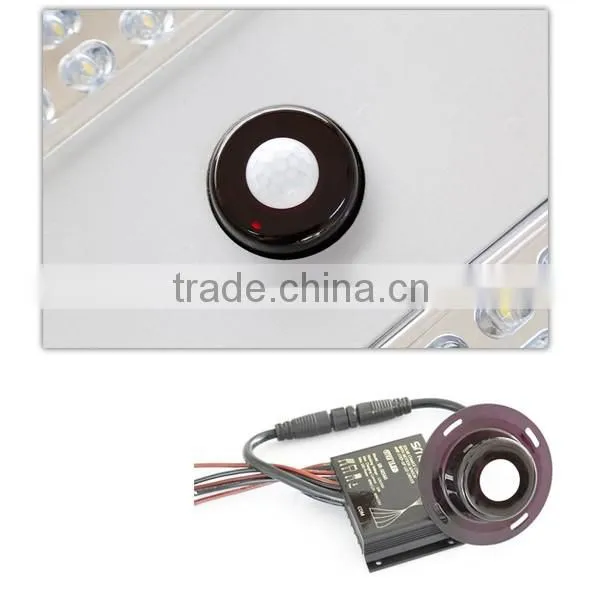

Motion Sensor

IP65 Waterproof Sensor, works with built-in indicator light, working conditions of the system can be easily checked

solar street courtyard light

Battery

LiFePO4 Lithium Battery adopted

12 hours per night, 3-5 nights power backup; 2000 times life cycle

solar street courtyard light

all in one solar street light

Applications

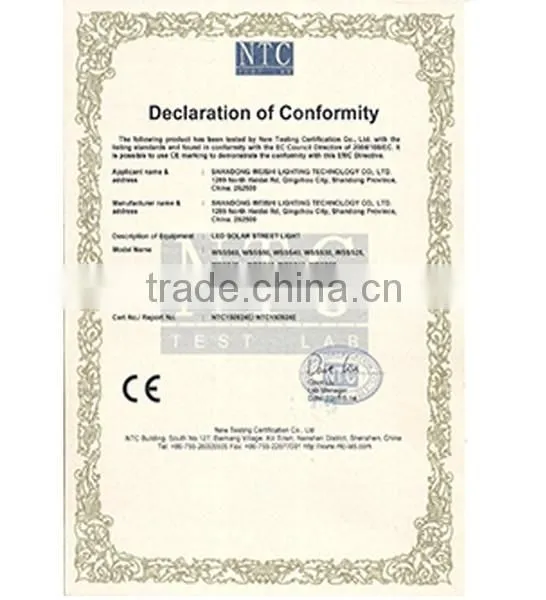

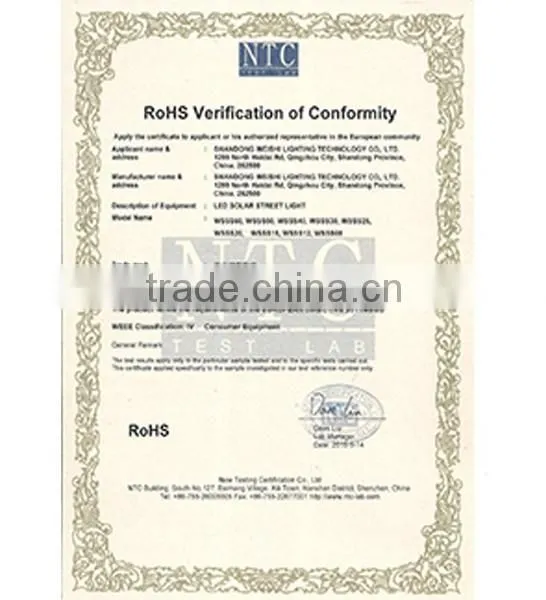

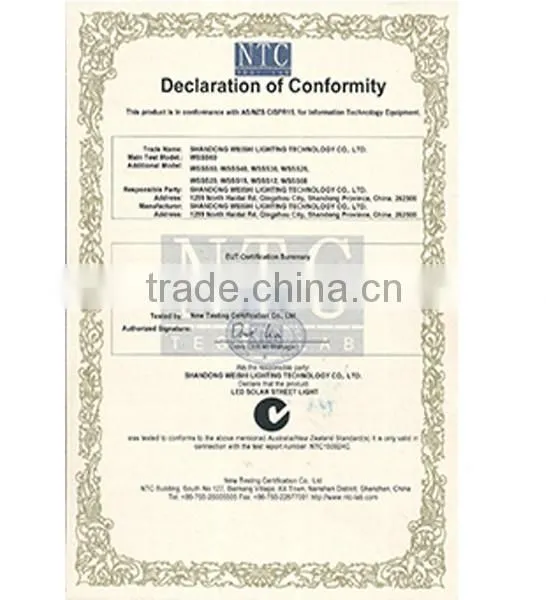

Certifications
Company Information
FAQs
Contacts

Please Contact Us for more information:

all in one solar street light

Mo Chen
Manager of International Sales


Website:                        https://img13.fr-trading.com/
Mobile and WhatsApp: 0086 18363653799     Phone/Fax: +86 (0)536 – 3703377
Skype: chenmo_weishi                                         Email: mo.chen at
