Home > Lights & Lighting > LED Interior Lighting > LED Spotlight > 3W/5W Frosted SMD LED Spot Light, LED MR16 Spotlighting 120 Degree Beam Angle With CE RoHS

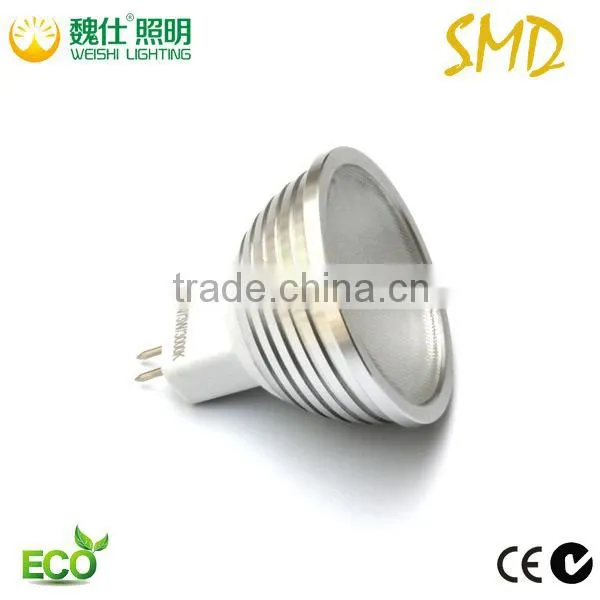

3W/5W Frosted SMD LED Spot Light, LED MR16 Spotlighting 120 Degree Beam Angle With CE RoHS

3W/5W Frosted SMD LED Spot Light, LED MR16 Spotlighting 120 Degree Beam Angle With CE RoHS thumbnail-1
3W/5W Frosted SMD LED Spot Light, LED MR16 Spotlighting 120 Degree Beam Angle With CE RoHS photo-1
US$ 2 - 3 MOQ: 5 Pieces
Key Specifications
Get Latest Price
LED Light Source:
SMD LED
Warranty(Years):
2
Input Voltage(V):
AC/DC 12V
Contact Supplier Request Quote Chat Now
Shandong Weishi Lighting Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD LED
Warranty(Years) 2
Input Voltage(V) AC/DC 12V
Lamp Power(W) 5
Lamp Luminous Flux(lm) 3W:240lm 5W:400lm
Lamp Luminous Efficiency(lm/w) 80
Color Temperature(CCT) Other, 3000-3300k(ww); 4000-4500k(natural white); 6000-6500k(cw)
Working Temperature(℃) -20, 45
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CE
Base Type MR16
Place of Origin Shandong, China
Brand Name WEISHI
Model Number 3W: WSMR16C1 5W:WSMR16C2

Specifications

1.LED Spot light, MR16 type
2.SMD LED, energy efficient
3.Beam angle 120 degree, AC/DC 12V,
4.2 years warranty



                          3W 5W SMD Frosted MR16 Spotlight with CE C-TICK



                         Model No.: 3W: WSMR16C1         5W:WSMR16C2



Light Source

Epistar

Power

3W/5W

Input Voltage

AC/DC 12V

LED Qty

      3W

      5W

      9pcs

     12pcs

Material

Aluminum

Beam Angle

120°

Luminous Flux

       3W

      5W

     240lm

     400lm

CRI

≥85

Luminous Efficacy

80lm/w

Color Temperature

WW/W/CW/Others

Protection Grade

IP22

Dimension

Φ49.25mm*50mm

Life Span

50,000 hours

Warranty

2 years

Certificates

CE C-TICK

Net Weight

0.05kg

                Gross Weight

0.06kg



WHY SMD?

SMD LED stands for surface mount LED. Some of the advantages compared to the

conventional LED are:

 1.    It is even more energy efficient and long lasting than normal LED lamps.

 2.    Beam angle 120° rather than 60° or 30°, the larger beam angle, the wider illumination area.

 3.   The SMD gives off very little heart, also has a low voltage and current requirements.






 1.     Replacing the traditional halogen lamps straightaway, easy!

 2.     Low power consumption, high lumens output, 5W LED equals to 30W halogen, economical!

 3.     High quality aluminum housing, better for heat dispersion, cool!

 4.     Frosted cover to be used, non-glare, protecting eyes from intense light, safe!

 5.     Multiple color temperature options, to meet the requirements of different atmosphere,
         flexible!

 6.     Real manufacturer, independent production, reliable quality and funny staff members,
         no worry!











                                  PRODUCT NOTES



 1)   MR16 lamps input voltage is 12V AC/DC, however they may not be compatible with

       some AC transformers, please run tests before a complete installation.





 2)  The MR16 lamps are NON-DIMMABLE, can be made dimmable in GU10 Type

        ONLY, please inform us in advance if it is required to be dimmable.



 3)  Color Temperature: warm white-2950-3250K; natural white-3500-4000K;

                                                  white-6000-6500K.

                                           Other CCT can be provided.



 4) Installation Warning: Please do not install the lamps in enclosed fixtures in order to

                                          manage heat dispersion.









MOQ, PRICE and PAYMENT TERMS:



5pcs MOQ for samples





Term of Price: EXW





Payment Method Options: T/T, L/C, Paypal, Western Union, Moneygram.





Term of Payment:         50% paid in advance, the balance to be paid before shipping.

                             100% paid at order for total amount less than $2000.





Lead Time and Delivery:

1)     Lead Time: generally 3-5 days, also depends on the quantity ordered.

2)     Delivery: air express or sea shipping.











3W/5W Frosted SMD LED Spot Light, LED MR16 Spotlighting 120 Degree Beam Angle with CE RoHS
