Specifications
125t CNC Press Brake,CNC Press Brake,Press Brake Machine1.High performance,
2.CQC,ISO,CE certification,
3,Delem
125t CNC Press Brake,CNC Press Brake,Press Brake Machine
Machine Body |
The machine body is in an overall processed structure and ANSYS finlte element analysis to main parts of the
machine body for analysis,which has ensure the reliability of machine tool and the precision of the entire
machine.
Oil Cylinder |
Electrohydraulic servo valve imported from Germany and imported grating ruler is adopted for the main oil
cylinders on both sides,to brake through the stroke control pattern of traditional bending machines of mechanical
stopper type,typical of high feedback precision for position of gliding block,accurate and stable operation,
good synchronizing performance and high repeated positioning precision of gliding block.
Rear Stopper |
Imported parts are used for all the functional parts in the rear stopper to ensure the stopper percision and the
mechanism of real stopper will multiple stopping shafts for more complete function is employed up to
customer requirement.
Hydraulic control system |
Hydraulic control system import from germany is adopted for the whole hydraulic system,simplify the installation
of pipelines to ensure stable operation as well as simple and nice appearance of the machine tool.
Grating Ruler |
C-shaped plates are fitted on both sides of the machine body,the high precision grating rule is mounted on the
C-shape plates,thus to avoid the infuence over pending precision arising from distortion of machine body during
bending process
CNC Hydraulic press brake parameter
Type |
Nominal Pressure (KN) |
Length of Table (mm) |
Distance between Housings (mm) |
Throat Depth (mm) |
Stroke (mm) |
Open Height (mm) |
Main Motor(KW) |
WC67Y-63/2500 |
630 | 2500 | 2050 |
250 | 100 | 335 | 5.5 |
WC67Y-63/3200 |
630 | 3200 | 2670 |
250 | 100 | 335 | 5.5 |
WC67Y-63/4000 |
630 | 4000 | 3300 |
250 | 100 | 350 | 5.5 |
WC67Y-80/2500 |
800 | 2500 | 2050 |
250 | 100 | 335 | 7.5 |
WC67Y-80/3200 |
800 | 3200 | 2660 |
250 | 100 | 335 | 7.5 |
WC67Y-100/2500 |
1000 | 2500 | 1950 |
320 | 140 | 385 | 7.5 |
WC67Y-100/3200 |
1000 | 3200 | 2650 |
320 | 140 | 385 | 7.5 |
WC67Y-100/3600 |
1000 | 3600 | 3000 |
320 | 140 | 385 | 7.5 |
WC67Y-100/4000 |
1000 | 4000 | 3200 |
320 | 140 | 385 | 7.5 |
WC67Y-100/5000 |
1000 | 5000 | 4200 |
320 | 150 | 420 | 7.5 |
WC67Y-125/3200 |
1250 | 3200 | 2680 |
320 | 150 | 370 | 7.5 |
WC67Y-125/3600 |
1250 | 3600 | 3000 |
320 | 150 | 370 | 7.5 |
WC67Y-125/4000 |
1250 | 4000 | 3280 |
320 | 150 | 370 | 7.5 |

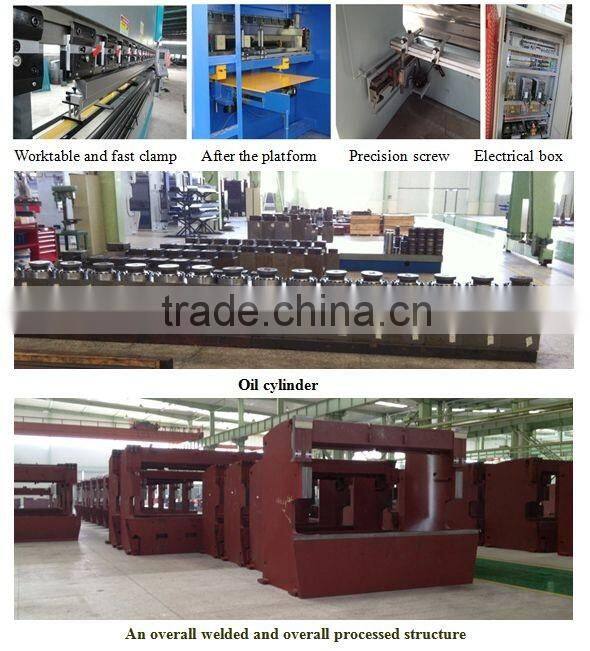

Factory production and processing equipment
Our Company Other Main Products
CNC Hydraulic press brake structure picture

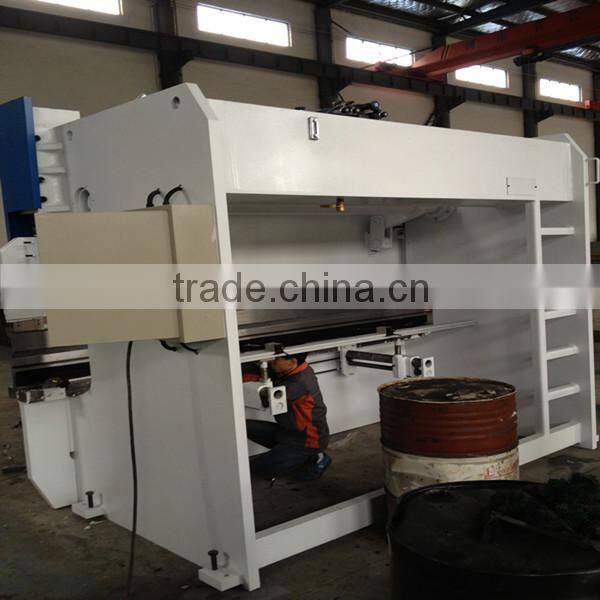

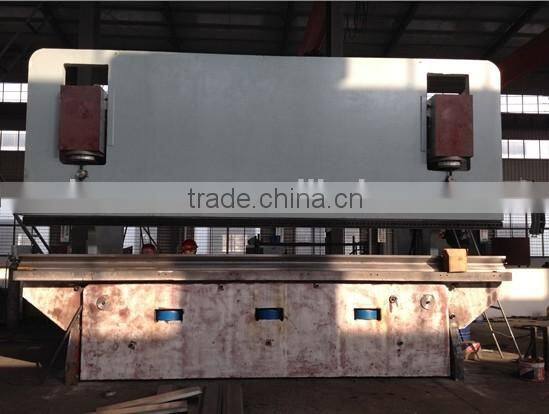

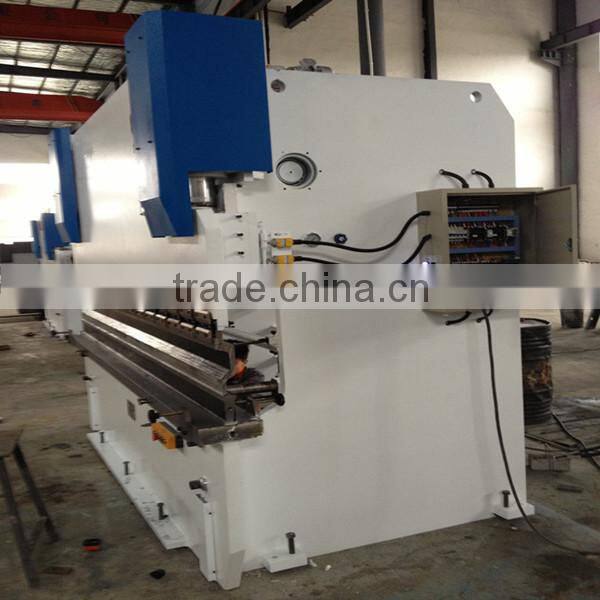

CNC Hydraulic Press brake picture
