ultra precision cheap cutting long life cheap cutting long life radial drilling machine for sale for sale CE ISO certified
BESCO machinery company has specialized in the drilling machine making field nearly 30 years,the cheap cutting long life radial drilling machine for sale is the most versatile type of drill press. It can do include boring holes,countersinking, and grinding off small particles in masonry works.we exported our machines to all the worldwide market and have the best response from customers.We can also customize the machine by requirement and offer you our best quality machine with the after sale service.
Advantages of the radial drilling machine
• Powerful: suitable for large-sized workpieces
• Wide range of potential applications: drilling, boring, reaming and thread cutting
• Suitable for one-off production, batch production as well as integration in production lines
• Extensive adjustment and upgrade capabilities to create a drilling centre
The major parts of the radial arm drilling machine:
Column - is the part of the radial arm drill press which holds the radial arm which can be moved around according to its length
Arm Raise - adjusts the vertical height of the radial arm along the column
On/Off Button - is the switch that activates and deactivates the drill press
Arm Clamp - secures the column and the arm in place
Table - is the area where the work pieces are fed and worked on
Base - is the radial arm drill press part that supports the column and the table
Spindle - is the rotated part of the drill press which holds the drill chuck used in holding the cutting tool

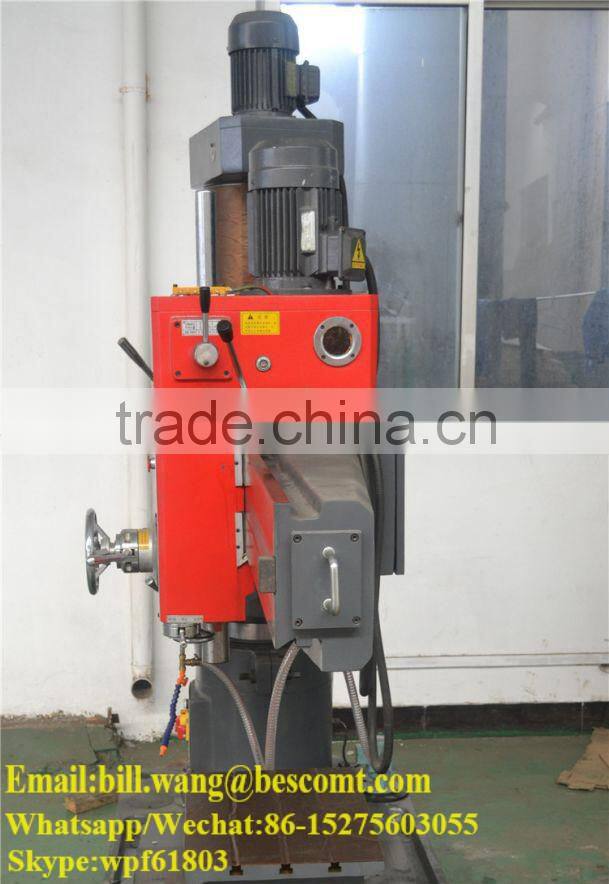

cheap cutting long life radial drilling machine for sale

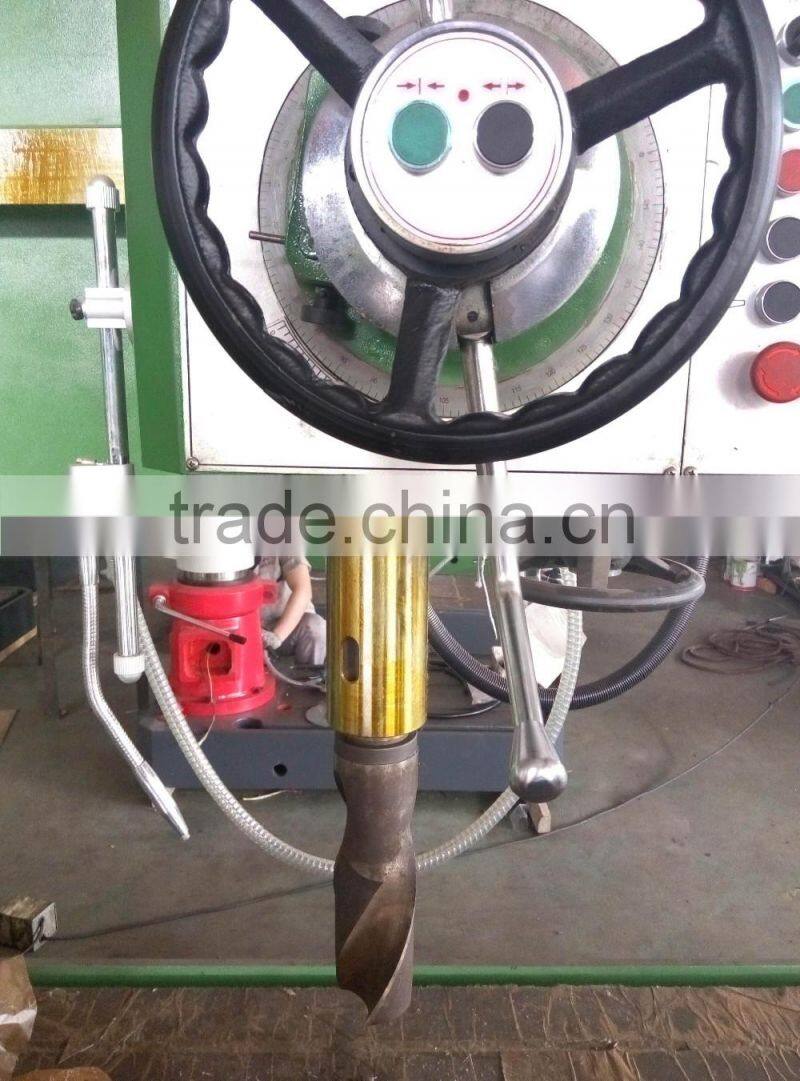

cheap cutting long life radial drilling machine for sale

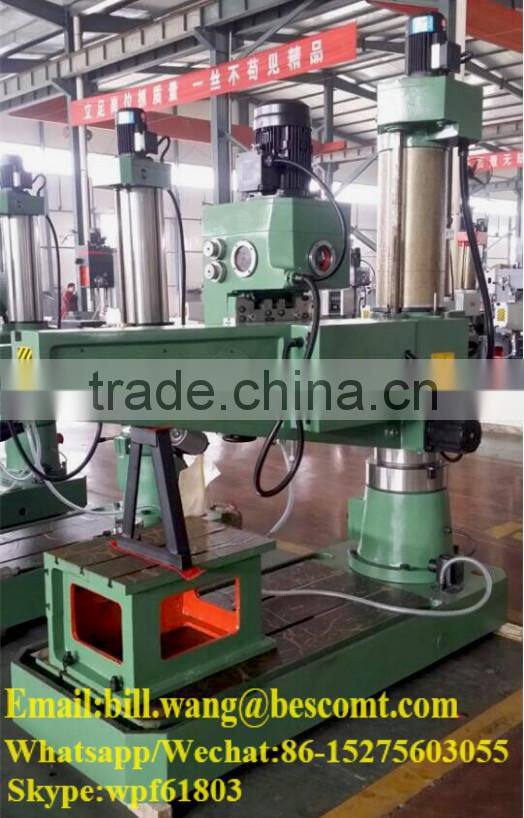

cheap cutting long life radial drilling machine for sale

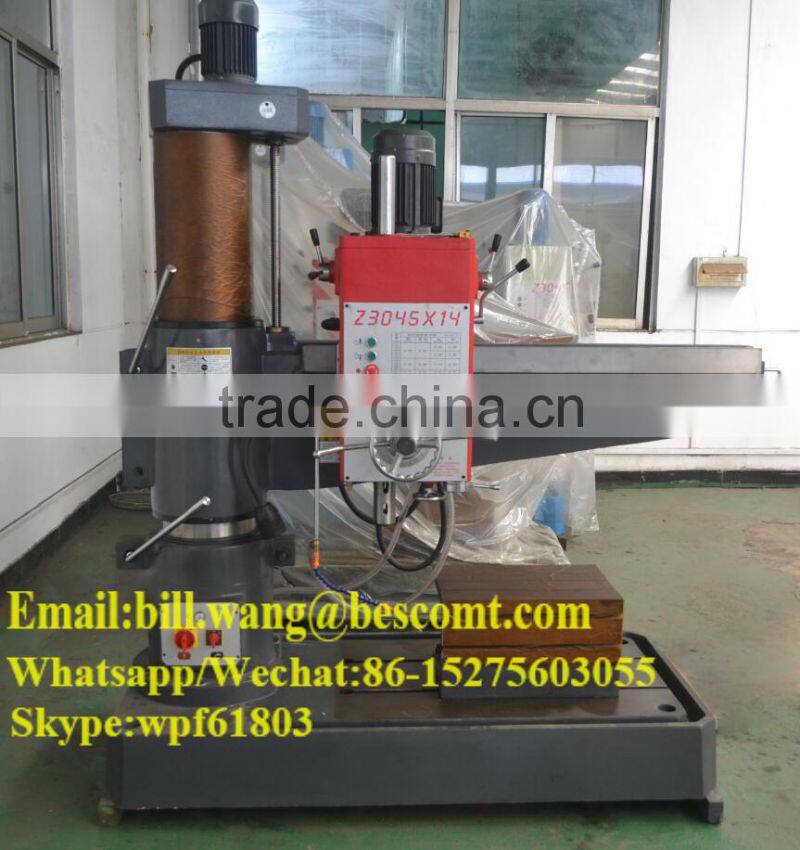

cheap cutting long life radial drilling machine for sale

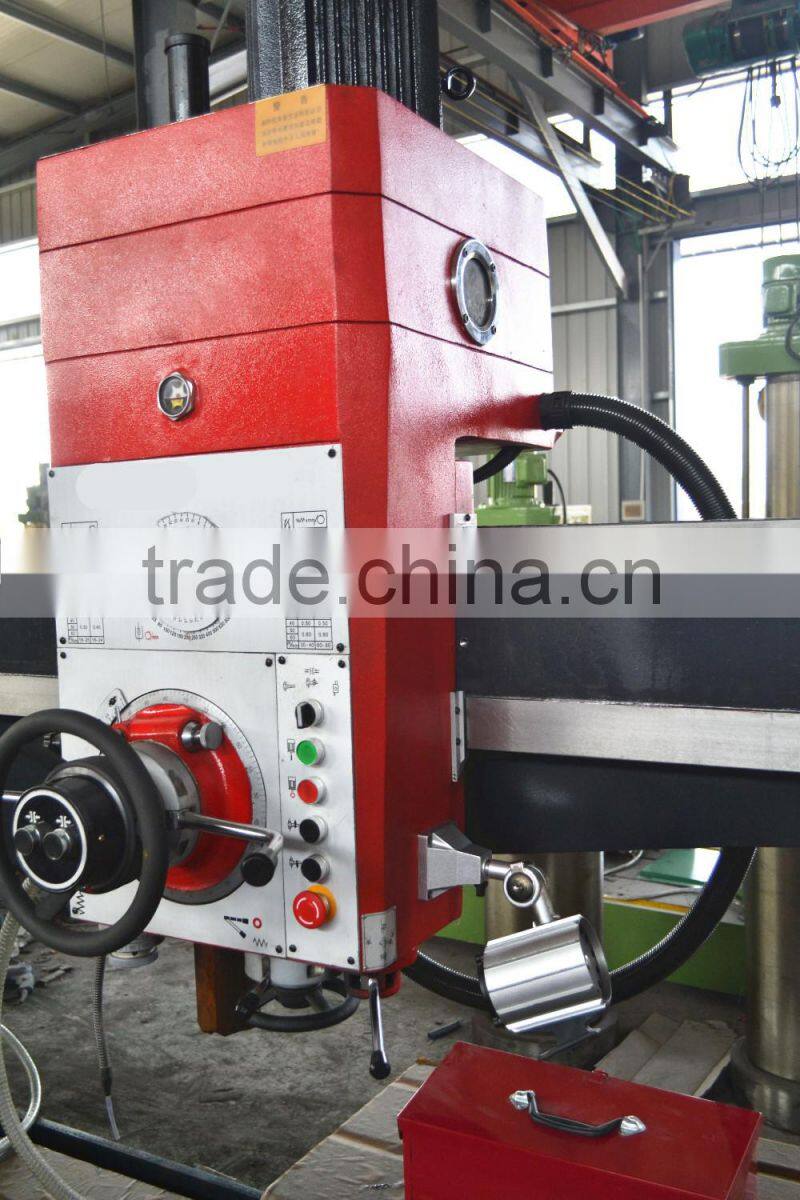

cheap cutting long life radial drilling machine for sale

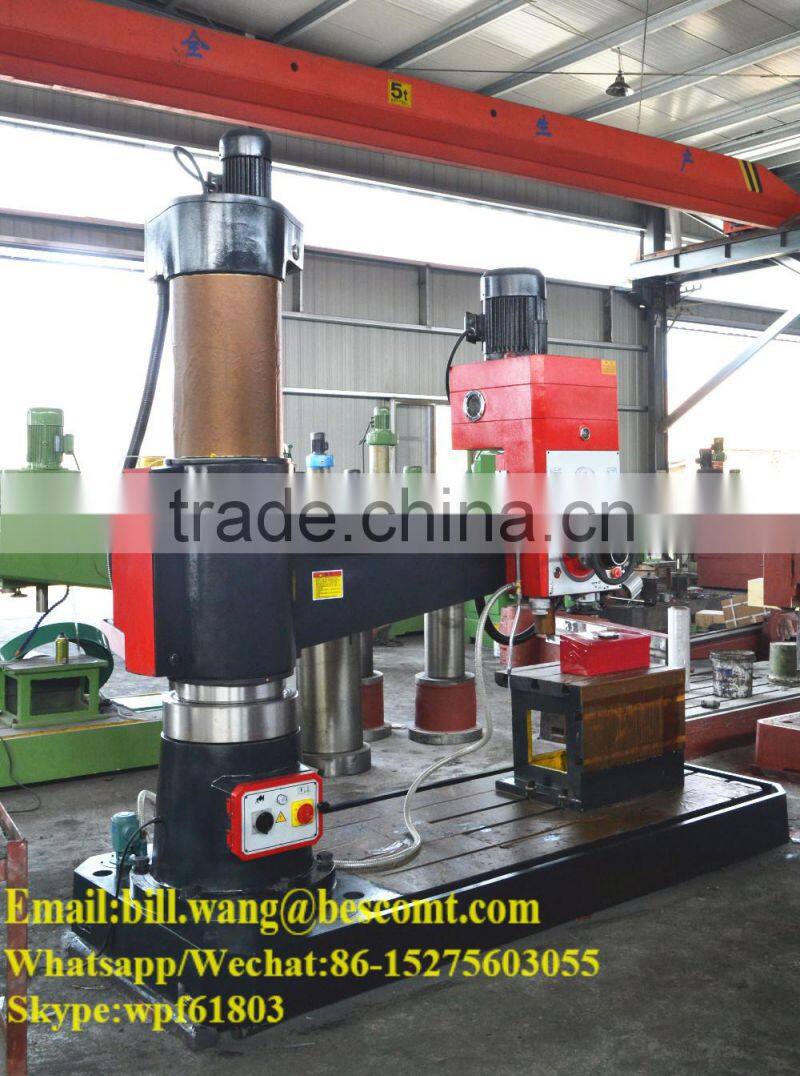

cheap cutting long life radial drilling machine for sale

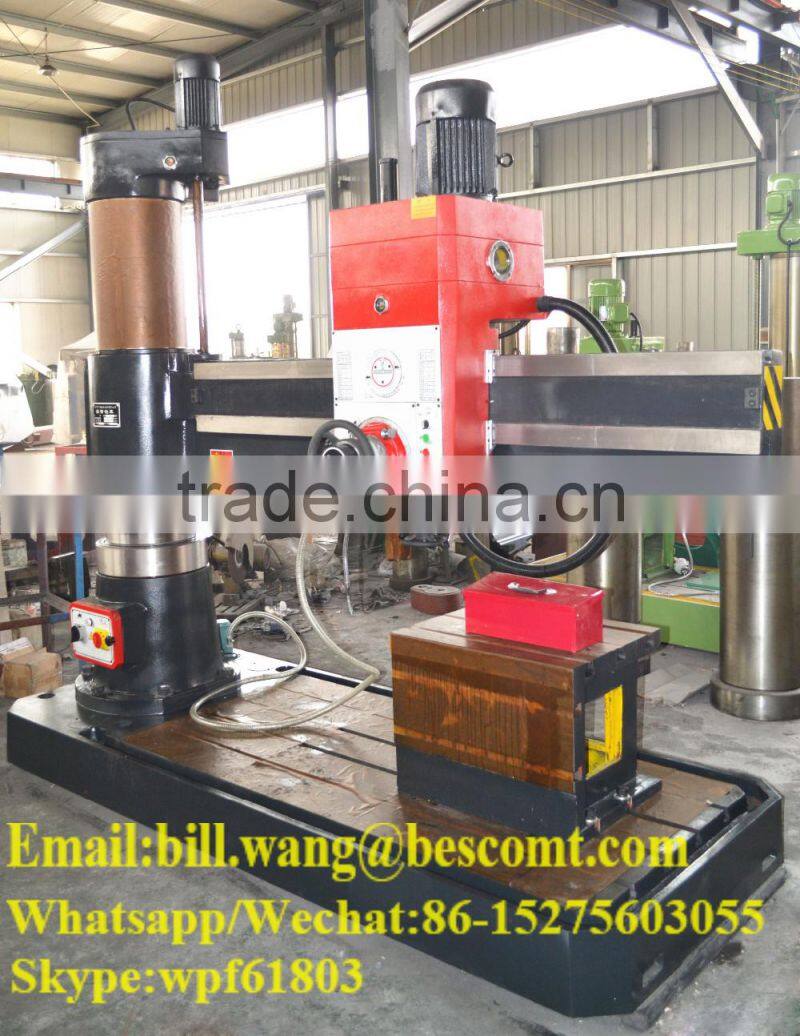

cheap cutting long life radial drilling machine for sale
cheap cutting long life radial drilling machine for sale
Specification |
Z3032×10 |
Z3040×10 |
Z3040×13 |
Z3050×16 |
Z3063×20 |
Max. Drilling dia. (mm) |
32 |
40 |
40 |
50 |
63 |
|
Distance from spindle nose to table surface (mm) |
108-1000 |
260-1050 |
260-1150 |
260-1050 |
500-1600 |
|
Distance between spindle axis and column face (mm) |
360-1300 |
360-1300 |
360-1300 |
360-1600 |
400-2000 |
Spindle travel |
200 |
200 |
200 |
200-220 |
400 |
Spindle cone |
4 |
4 |
4 |
5 |
5 |
Spindle speed range (rpm) |
75-1200 |
75-1200 |
75-1200 |
78-1100 |
20-1600 |
Spindle feeding range (rpm) |
0.10-0.25 |
0.10-0.56 |
0.10-0.25 |
0.10-0.56 |
0.04-3.2 |
Rocker rotary angle |
360 |
360 |
360 |
360 |
360 |
Main motor power (kw) |
0.85/1 |
2.2 |
2.2 |
4 |
5.5 |
Movement motor power (kw) |
0.55 |
1.1 |
1.1 |
1.5 |
1.5 |
Net weight (kg) |
950 |
1500 |
1900 |
2800 |
7000 |
Overall dimension (mm) |
1400×670 ×1900 |
1500×705 ×2200 |
1800×810 ×2200 |
2170×950 ×2450 |
3000×1250 ×3300 |
FAQ
what will be the payment method?
