utp cat6 network cable patch panel,network ca6 stp/utp patch panel 24p 48 port
Description:
Our Company, Shenzhen BLH Communication CO.,LTD Specializing in fiber optic equipment for more than seven years,now have successfully launched Cat.5E series, Cat.6 series, 6A series data cable series, keystone jacks and patch cord series, patch panel series, and RJ45, cabling tool, faceplate, cable management arm, and optic fiber series.
product description:
1)Design to mount to standard 19" rack or cabinet .
2)Space saving ,high-density 1U (16/24 ports) 2U (48 ports)
3)IDC contract material : phosphor bronze with tin plating over nickel .
4)110& krone punch down tools are available .
5)Sturdy Aluminum Plate around RJ 45 Jacks .
6)Phosphor bronze with 50 micro inches gold plated .
7)Available with T568 A .T568 B wiring pattern and meeting the requirement of Cat 6standard .
8)Color Coded TIA/EIA 568a (international) and 568b (AT&T Standard) Wiring For Easy Installation
9)Termination accepts 22,24 26 AWG (0.64 ,0.5 and 0.4 )solid wires
Features:
Feature:
- 6 port/12 port/24 Port/48 port,Modularized/monolichic,STP/FTP Patch Panel
- rj45 1u/2u Load
- Modularized convenient for installation
- UTP patch panel used for 24×RJ45 module ;
- According to application requirements, able to cooperate with 24 cat6/cat5e KU UTP Keystone jack to be used
- Able to install and remove KU modules easily ;
- No module port provided, able to use distribution frame tubular dust cover, beautiful in matching ;

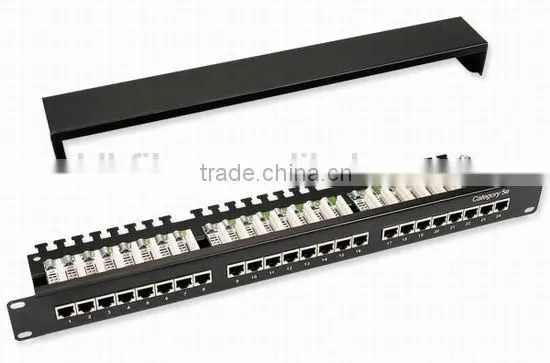

- The patch panel is attached with a rear cable management arm, convenient for the cable management of users.
Materials:
1.Housing material :PBT+15% UL94V-0
2.Panel frame :Carbon steel ,powder coating in black color
3.Contact material :PC UL94V-0 contact. phosphor bronze with nickel plating.
4.RJ45 Jack life :750 times min
5.IDC life :200 times min
6.Wire :AWG 24~26
Specification:
Frequency |
Near-End Cross Talk dB, MIN |
Return Loss dB,MIN |
Attenuation dB,MAX. |
1.0 MHZ |
65.0 |
35.5 |
0.1 |
4.0 MHZ |
65.0 |
35.5 |
0.1 |
8.0 MHZ |
64.9 |
35.5 |
0.1 |
10.0 MHZ |
63.0 |
35.5 |
0.1 |
16.0 MHZ |
58.9 |
35.5 |
0.2 |
20.0 MHZ |
57.0 |
34.0 |
0.2 |
25.0 MHZ |
55.0 |
32.0 |
0.2 |
31.25 MHZ |
53.1 |
30.1 |
0.2 |
62.5 MHZ |
47.1 |
24.0 |
0.3 |
100.0 MHZ |
43.0 |
20.0 |
0.4 |

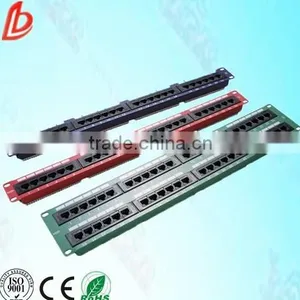

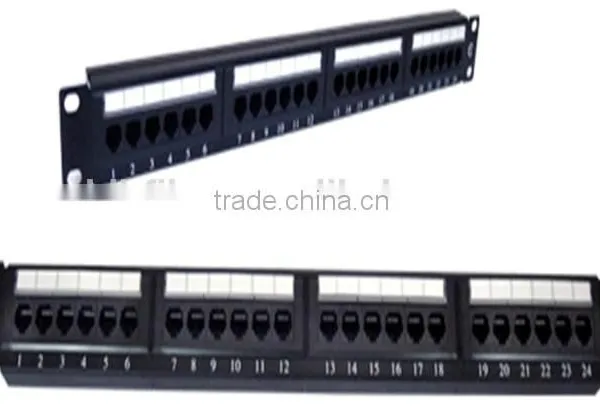

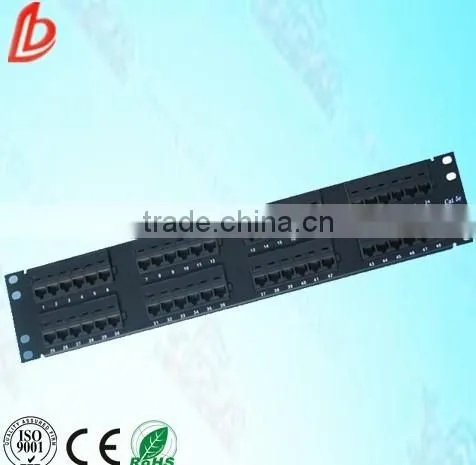

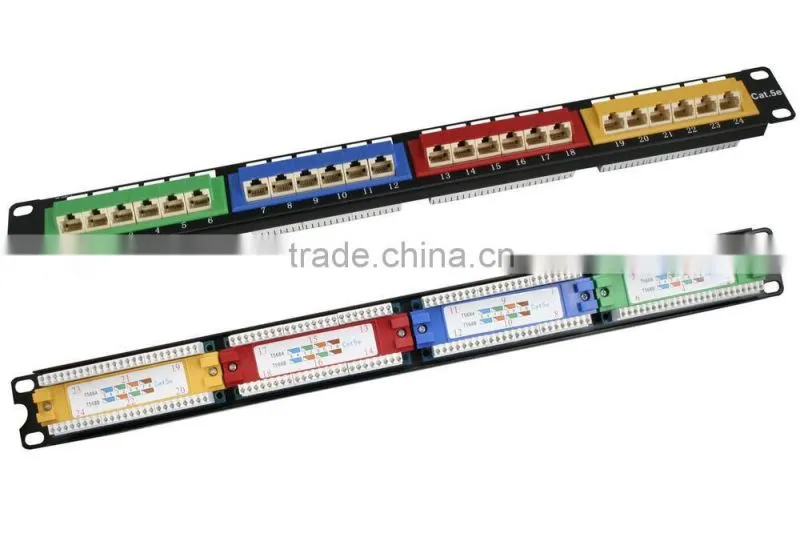

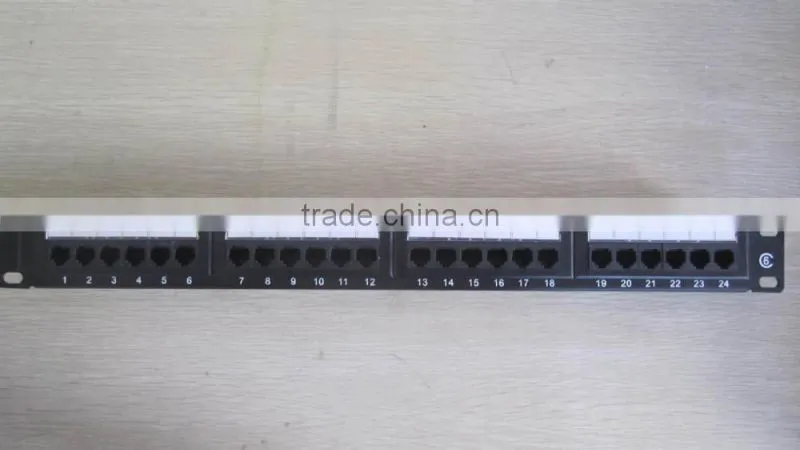

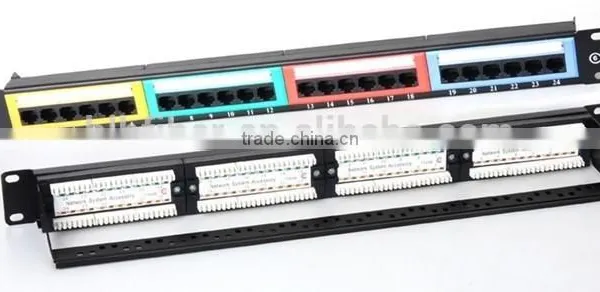

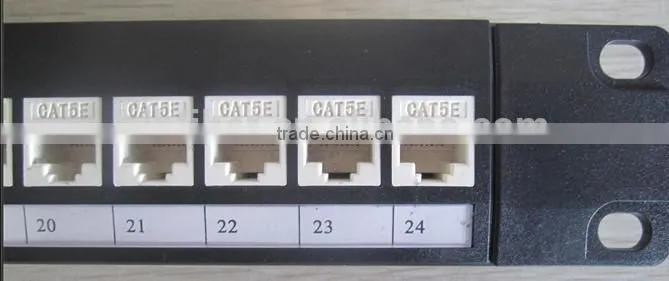

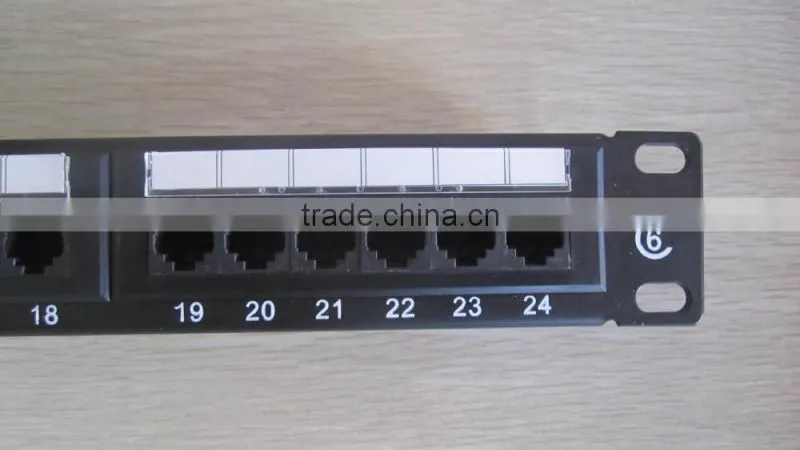

Pictures:
6.Papyment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
