Network RJ45 Keystone 2-Port Faceplate for RJ45 jack with Shutter Made in Shenzhen China
- 100000 Piece / Pieces per Month
- ShenZhen
- T/T Credit Card PayPal
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Guangdong, China | Brand Name: | OEM | Model Number: | rj45 |
Product Description

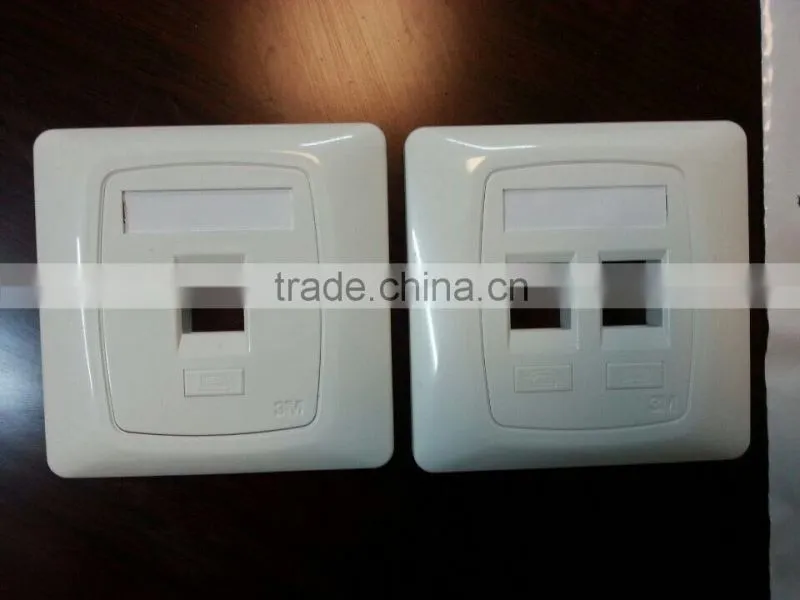

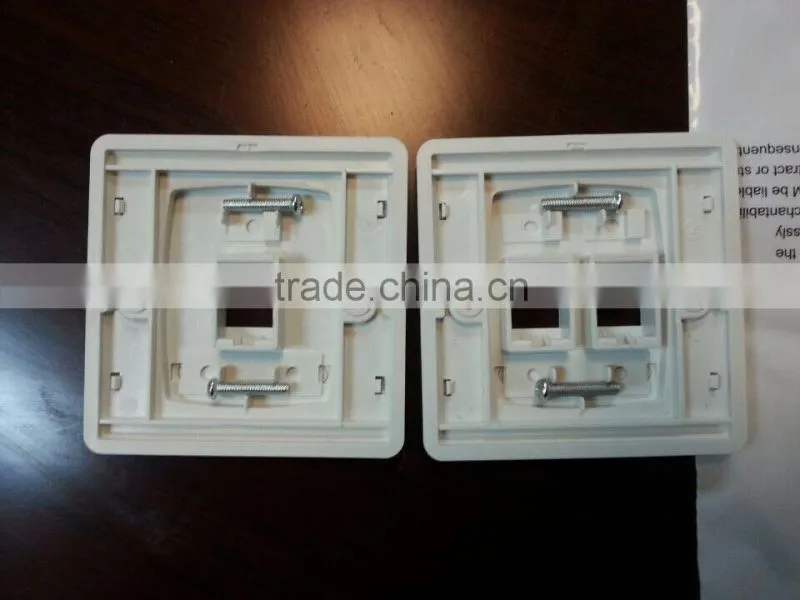

Network RJ45 Keystone 2-Port Faceplate for RJ45 jack with Shutter Made in Shenzhen China
Specification:
1. Embedded chart and logo postion make it easy to identity;
2. The slip shutter door can prevent dust from coming;
3. Designed for Networking performance and meet EIA/TIA specifications;
4. For mounting RJ45, Cat.5e/Cat.6, coaxial cable and other socket module.
Application
Used for home or working area; RJ45 keystone jack and voice keystone jack is used together with single-port,
dual-port and tri-port information panel, and module is used together with tri-port information panel;
provides lead-out interface of user terminal and suitable for multi-type module installation and used in cabling subsystem within working area.
Desciption
echinical Details: | ||||||
Current Rating | 1.5 Amps | |||||
Insulation Resistance | 500 Megaohm | |||||
DC Resistance | 0.1 ohm MAX | |||||
Voltage | 150 VAC MAX | |||||
Insertion Life | ≥ 1000 Mating Cycles | |||||
Plug Retention Force | 89N | |||||
Temperature | — 60~80 °C | |||||
IDC Accept | 22-24 AWG Solid Wire | |||||
Wire Scheme | T568A/ B | |||||
Test Standard | TIA CAT6 Perm Link | |||||
Performance | Pass FLUKE Test ( DTX 1800) | |||||
Cable Insert | Cable Insert from Side( Horizontally) |
Pictures
Payment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
