650nm 20 mw Pen-type fiber optic Visual Fault Locator visual fault finder /Red Open
Specification:
- 2.5mm universal connector,
- Operates either in CW or Pulsed mode with constant output power
- Long battery life (up to 60 hours)
- drop-resistand and dust-proof design of laser head
- Laser case ground design prevents ESD damage
- Portable and rugged
- Easy to use
- Meets CE standards including EMC, EMI, ROHS
Fiber optic visual fault locator adopts 650nm laser diode as a light emitting device,the output power can be up to 1mw-20mw. It’s applied to single-mode or multi-mode fiber measurements.In the meantime, you can use SC / ST adapter and do not need to configure the conversion interface furthermore, it can optionally connect all frequently-used joint.It is an ideal tool to test various types of optic fiber patch cord, ribbon, bundle fiber optic pigtail and maintain a variety of fiber optic lines for you.
application:
1. Using high-quality triangular laser chip life 8000-12000 hours
2. Using APC circuit boards, constant power output and anti-anti-mounted battery set
3. 2.5mm universal interface with optical port protection and special chain device
4. Domestic unique pattern button design, exquisite comfort
5. Always, flash, slow flash (3HZ) three operating modes
6. Copper shell, with a pen clip design, weighs only 60g, light and easy to carry
7. Through fiber-coupled,optical power guarantee
8. 8 hours 50 °C high temperature testing before delivery
-Visual Fault Locator
Model |
VFL-1 |
Central wavelength |
650nm±10nm |
Connector |
2.5mm universal connector |
Output power |
Optional choice for 5mw, 10mw,20mw,30mw,40mw,50mw |
Optical connector |
2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC. (Female) convertor can be provided on request |
Operating model |
Both CW and Pulse available |
Pulse frequency |
3Hz to 9Hz |
Power supply |
2AA alkaline batteries |
Operating temperature |
-20°C to 60°C |
Storage temperature |
-40°C to 85°C |
Dimension |
-FL-002 Φ23 X 190 |
Weight |
110g (without battery) |

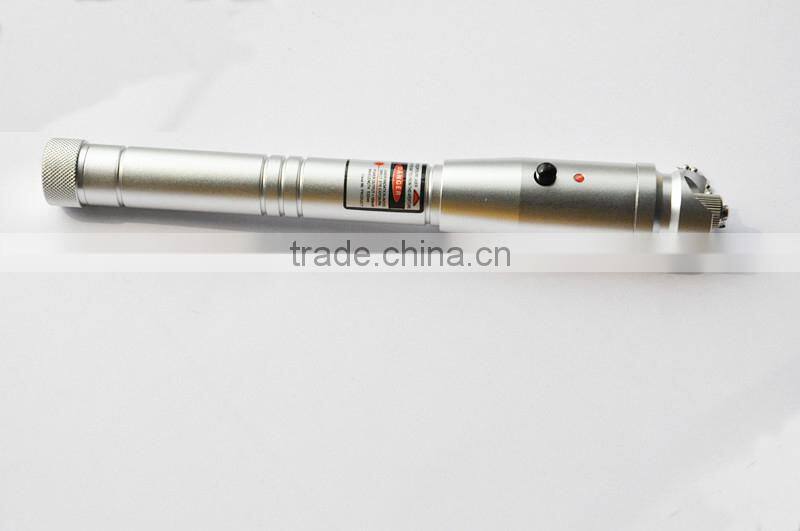

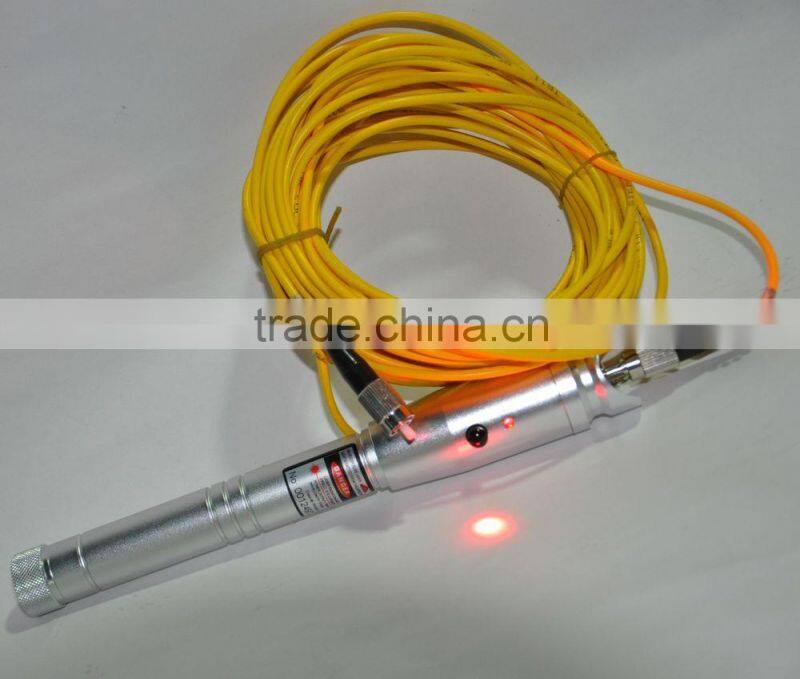

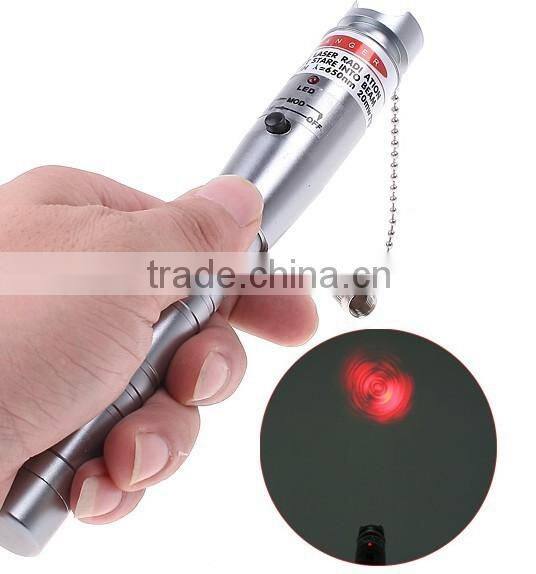

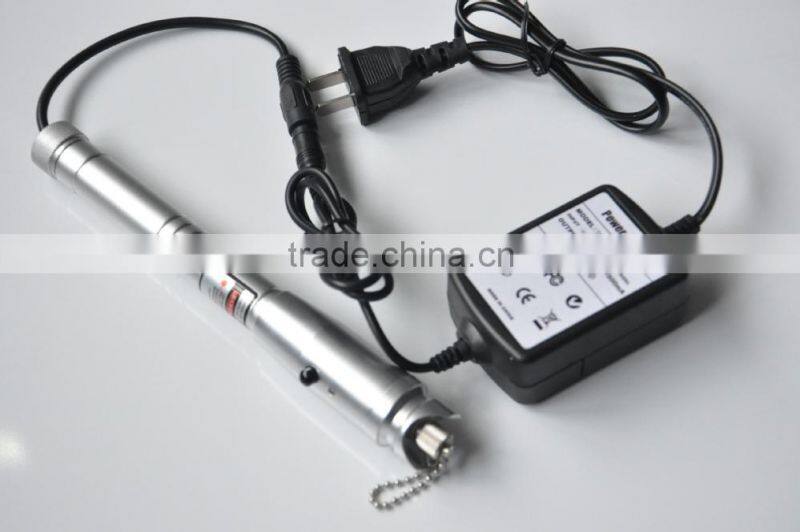

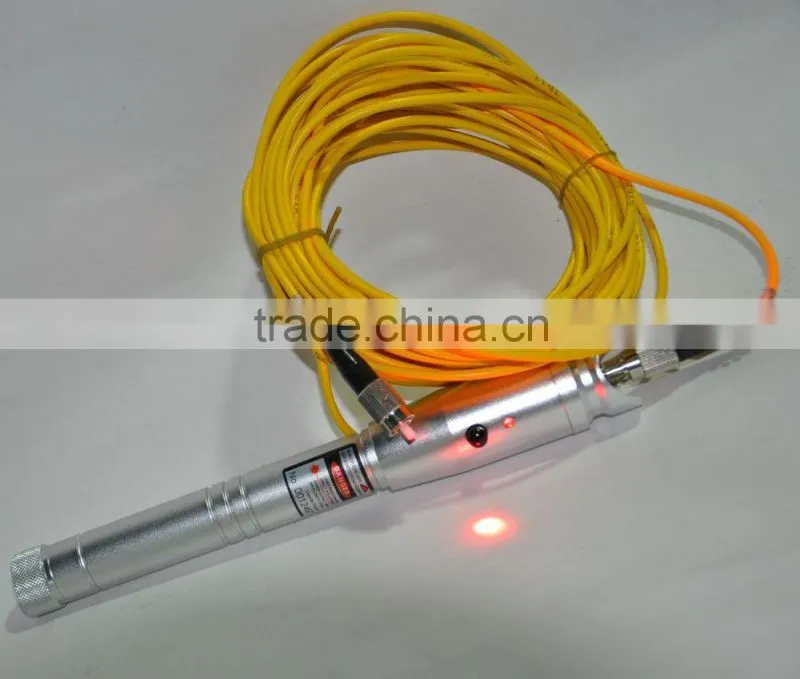

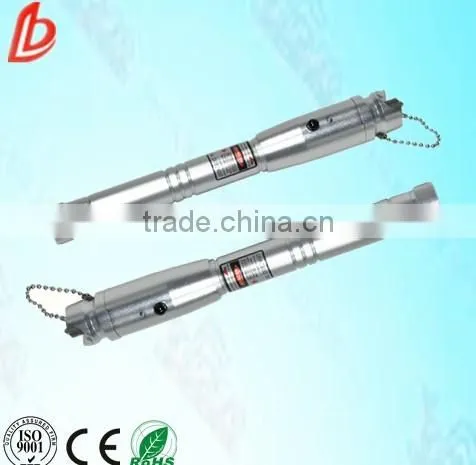

Pictures:
Papyment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
Contact me:
Our company is a professional manufacter in fiber optic equipment more than seven years,we are confident our products will satisfy you.
I will be here to solve your any problems,so welcome to contact me anytime,And i promise i will reply you in 24 working hours.
Our goal is to satisfy you as a customer and in return matanin our excellent reputation.
