Specifications
Fujikura CT-30 fiber cleaver1.High precision
2.Fast delivery
3.High Reliability
4.CE,ROHS certificate

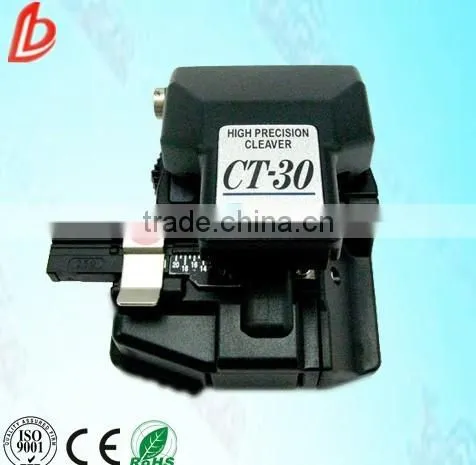

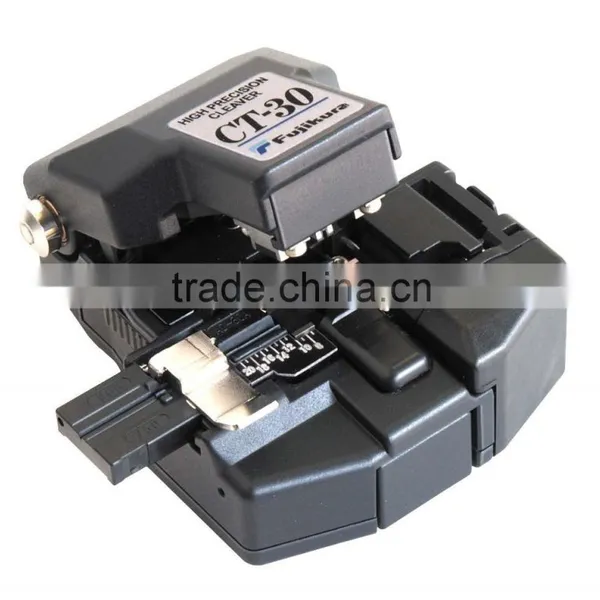

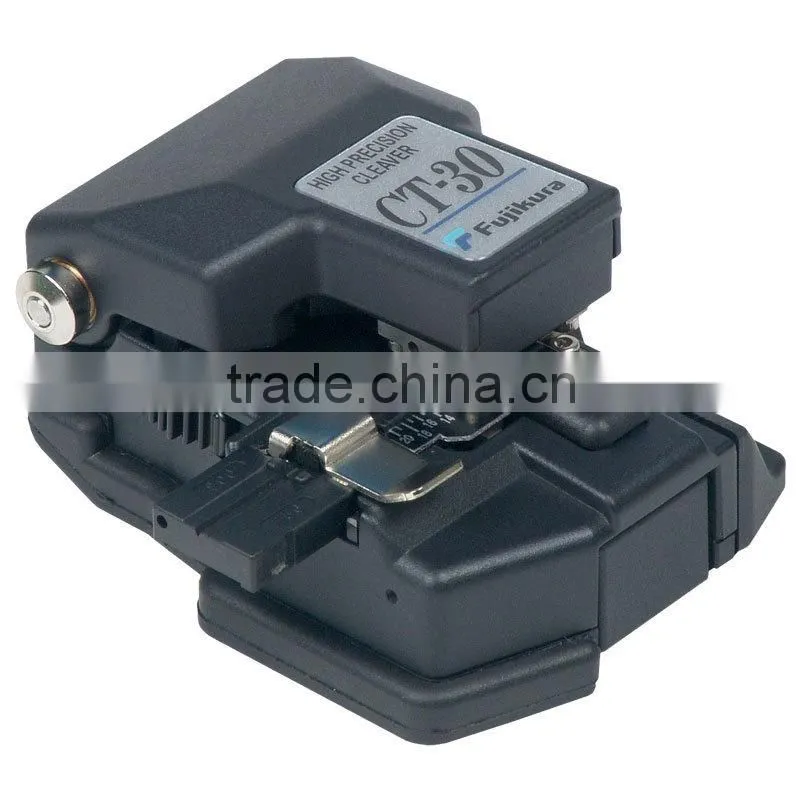

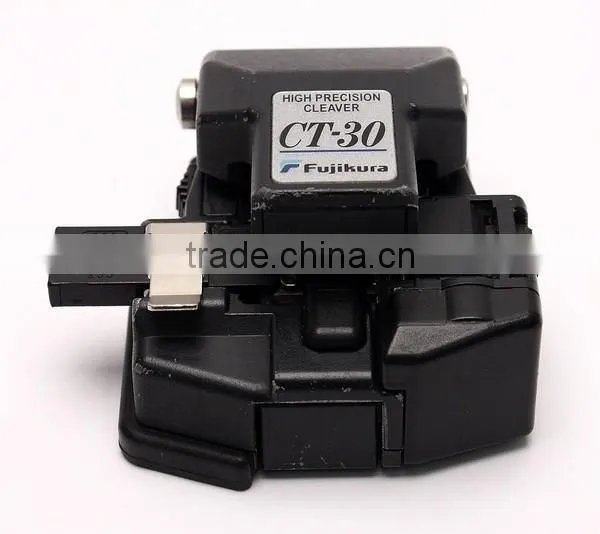

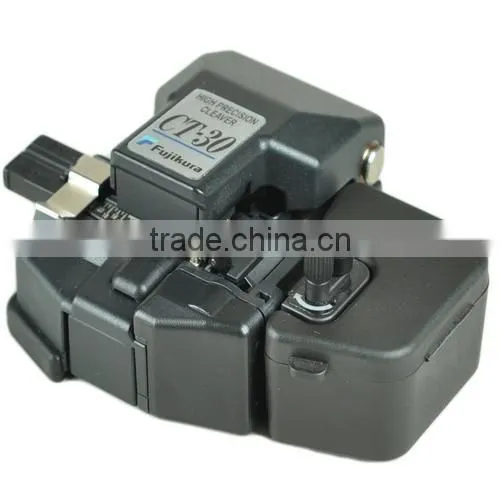

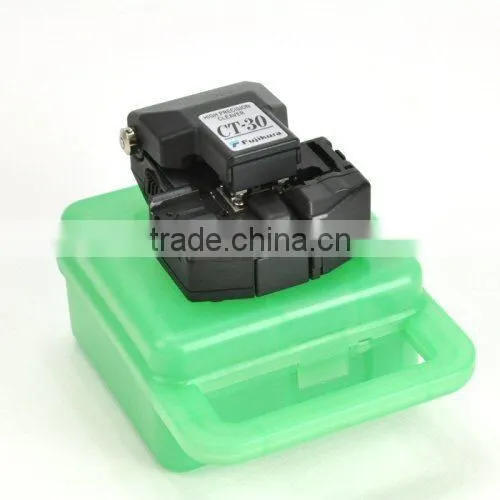

Fujikura CT-30 fibra cutter tool/ fiber cleaver Fujikura
Description:
The Fujikura CT-30 Cleaver sets the standard for portable, reliable and ease of use. Available for either single fiber or ribbon splicing (up to 12 fiber ribbons) applications, the CT-30 Cleavers are compatible with all AFL Telecommunications fusion splicers. Designed for excellent portability, the CT-30 is equally at home in a splicing van or in a bucket truck and is ideal for FTTx applications. The 16-position blade yields 48,000 single-fiber cleaves,or 4,000 12-fiber ribbon cleaves before requiring replacement, and the built-in scrap collector conveniently stores fiber shards until they can be safely discarded.
Features:
1. Compact body & light weight.
2. Applicable up to 12-fiber cleaving.
3. Replaceable blade.
4. Simple operation and Easy maintenance.
5. 48,000 fiber blade life (height and 16 rotating positions).
6. Fiber scrap collection-free.
Specifications:
Applicable fibers |
Silica optical fiber |
Bare fiber diameter |
125mm |
Cleaving angle |
0.5 degrees with single fiber |
Blade life |
48,000 fibers (1,000 fibers x 3 height x 16 positions) |
Blade positions |
3 height and 16 rotating positions |
Dimensions |
102W x 82D x 46H (mm) with FC-02 and FDB-03 |
Weight |
210g with FC-02 and FDB-03 |
Variation:
| Model | Cladding diameter | Fiber count | Cleaving length | Fiber placing |
| CT-30 | 125mm | Up to 12 | 10mm | Fiber holder |
| CT-30A | 125mm | Single | 6 to 20mm | Fiber plate (AD-30A) |
| CT-30B | 125mm | Single | 16mm | Fiber plate (AD-30B) |
pictures:
Payment and Delievery:
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
