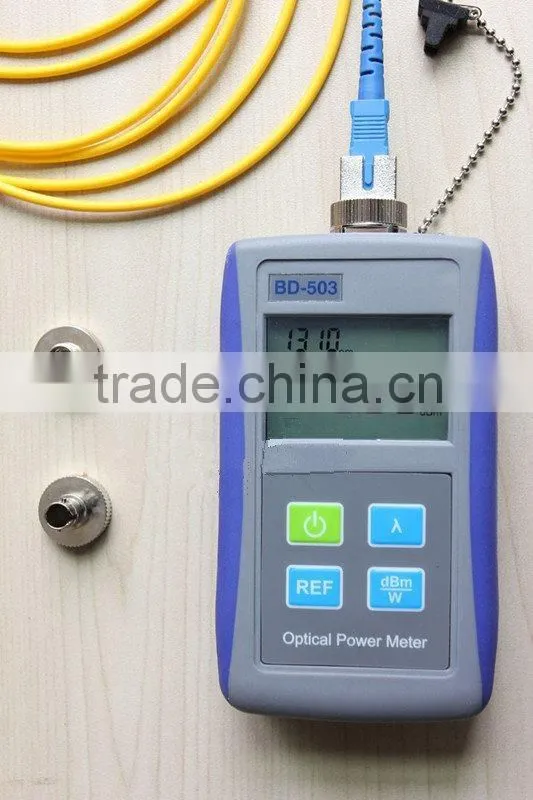

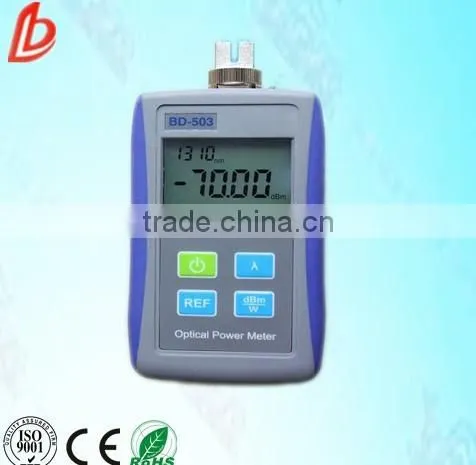

Handheld fibra optica power meter optical fiber tester meter
Description:
BD503 Handheld Optical Power Meter is a selfdeveloped test instrument which is widely used for installation, operation and maintenance of fiberoptic network. It features smart appearance, backlight, autoshutdown and widely dynamic range, good testing precision and universal optical connector for FC/SC/ST.
Features:
---High sensitivity, large dynamic range
---Universal connector interface: FC/SC/ST (option LC/MU.)
---Quick response, without warm-up and reduce testing time
---Low-voltage display function
---Optional auto-shutdown feature
---Automatic calibration function
---Directly displaying relative ratio test
---The relative reference value and the relative value displaying simultaneity
---Large LCD display and backlight
Applications :
---Maintenance Telecom
---Maintenance CATV
---Test Lab of Fiber Optic
---Optical fiber sensors
Specifications:
Type |
BD503 |
|
Wavelength (nm) |
800~1650 |
|
Detector |
InGaAs |
|
Optical Connector |
FC SC ST/ Universal 2.5mm adaptor (LC,MU can be optional ) |
|
Measurement Range (dBm) |
-70~+10 |
|
Uncertainty |
±5% |
|
Standard Wavelength (nm) |
850/ 1300/ 1310/ 1490/ 1550/ 1625 |
|
Resolution (dB) |
0.01 |
|
Power Supply |
3pcs AAA 1.5V batteries |
|
working time (h) |
120 |
|
Operating Temperature (°C) |
-10~+50 |
|
Storage Temperature (°C) |
-20~+70 |
|
Automatic shutdown (min) |
10 |
|
Dimension (mm) |
125 (L)*65 (W)*29 (H) |
|
Weight (g) |
160 (include batteries) |
|

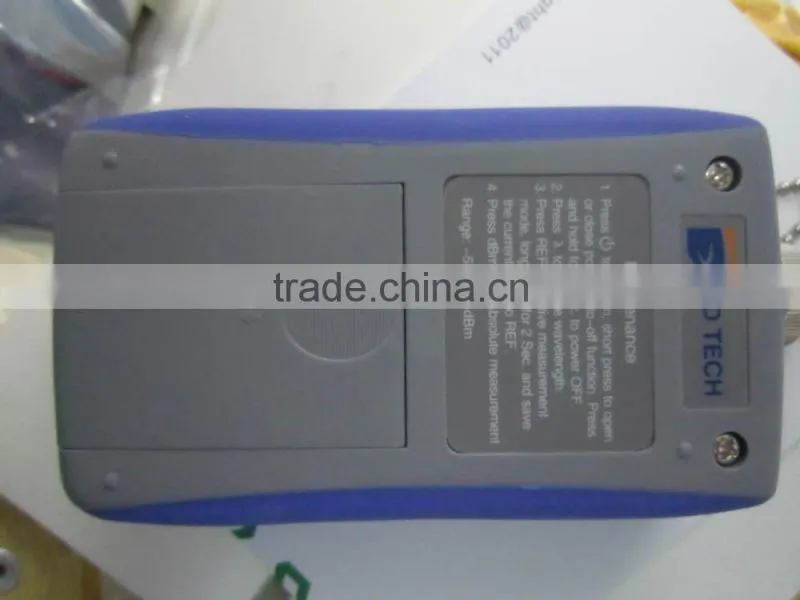

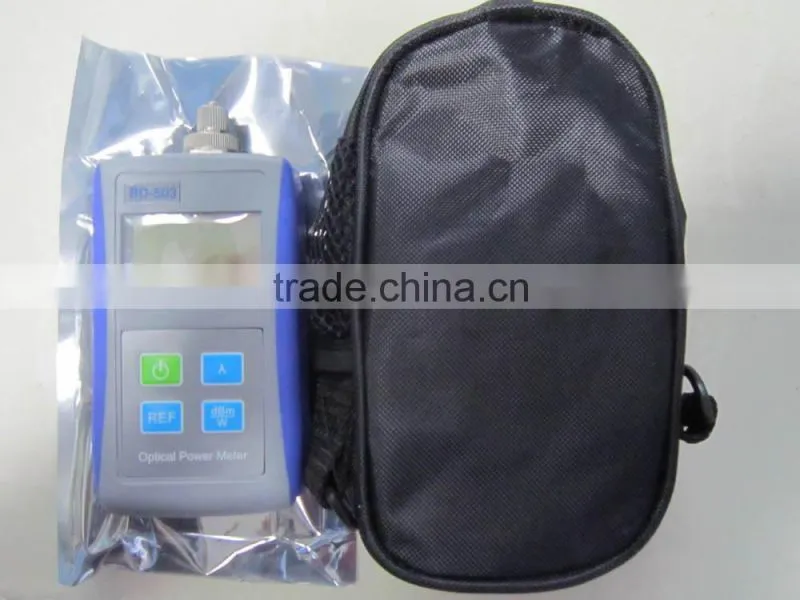

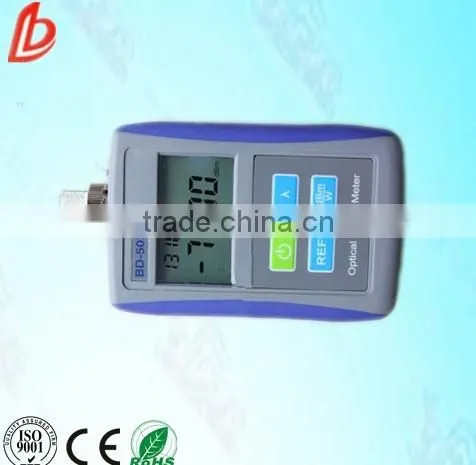

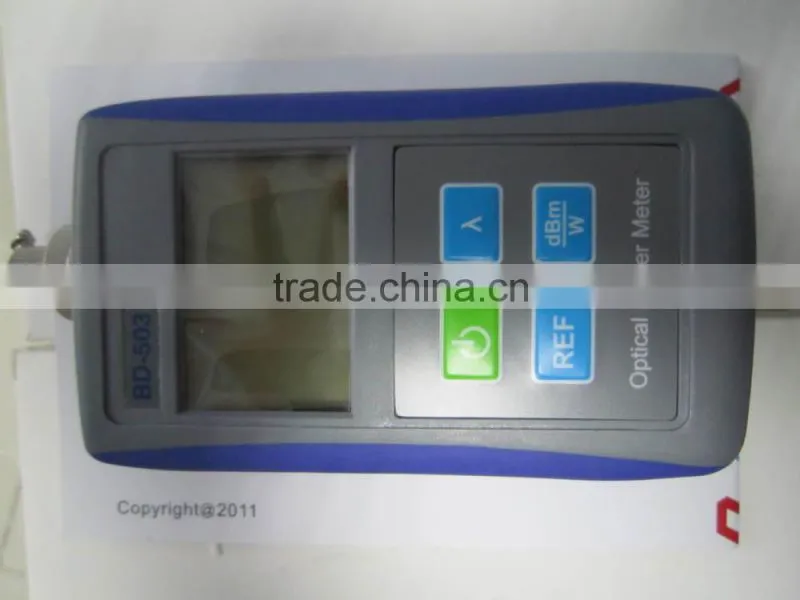

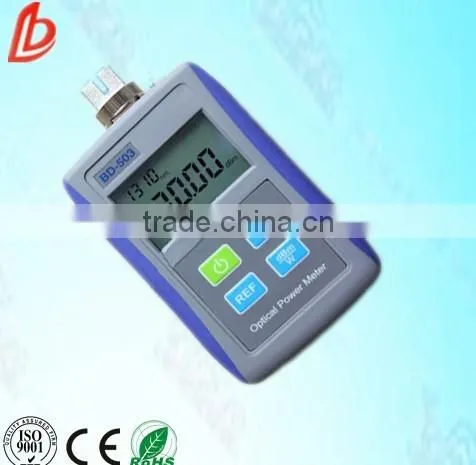

pictures:
Payment and Delievery:
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
