Specifications
Optical power meter1.High accuracy
2.Compact,ingenious appearance
3.Wide range of power measurement
4.Fast deliver
High quality fiber Optical power meter, FTTH fiber optic power meter,optical detector/laser light source
Description:
optical power meter is a tester designed for design, operation and maintenance of FTTH network. It is able to concurrently measure the optical power values of voice, data and video signals. It is an ideal choice for the construction and maintenance of FTTH network works.
Features:
1. Providing simultaneous measurement at all three wavelengths on the fiber (1490nm,1550nm,1310nm ).
2. Used in Burst mode measurement of 1310nm upstream.
3. Dual-port through the design, guarantee the full communication testing from the OLT to the ONT
4. Easy to use, simply connect the fiber to read the results
5. 200 measurement items can be saved in PON power meter or computer for data review.
6. Through the background software setting threshold, upload data, calibration wavelength
7. Auto power off function, and time settings on the device,the threshold setting
Specification:
| Item: | Specification: |
| Product Name | Power Meter |
Calibration Wavelength(nm) |
800~1700 |
Detector type: |
InGaAs |
Measurement Range(dBm) |
-60 |
Uncertainty (dB) |
+0.2(5%) |
linearity (dB): |
0.01 |
Display resolution(dB) |
0.03 |
Frequency ID Hz |
270 330 1K 2K |
Wave ID nm |
85,098,013,001,310,100,000,000,000 |
Date Storage Capacity |
1000 |
Communication Port |
USB |
Connector |
FC/SC/ST |
Alkaline battery |
3AAA 1.5V or Li battery (9V) |
Power Adapter(V) |
8.4 |
Battery Operating time (h) |
240 without backlight |
Operation Temperature(oC) |
-10°c ~ +60°c |
Storage Temperature(oC) |
-25°c ~ +70°c |
Dimension(mm) |
172 x 82 x 33 |
Weight(g) |
310 |
4.Application:
Maintenance Telecom
Maintenance CATV
Test Lab of Fiber Optic
Optical fiber sensors

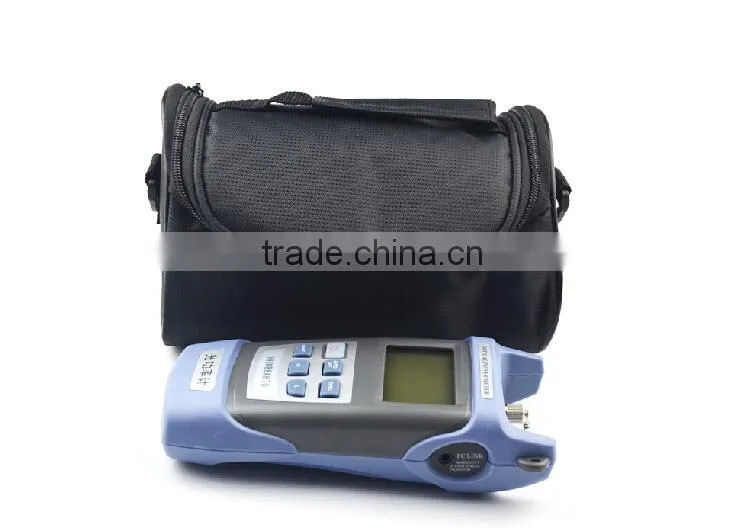

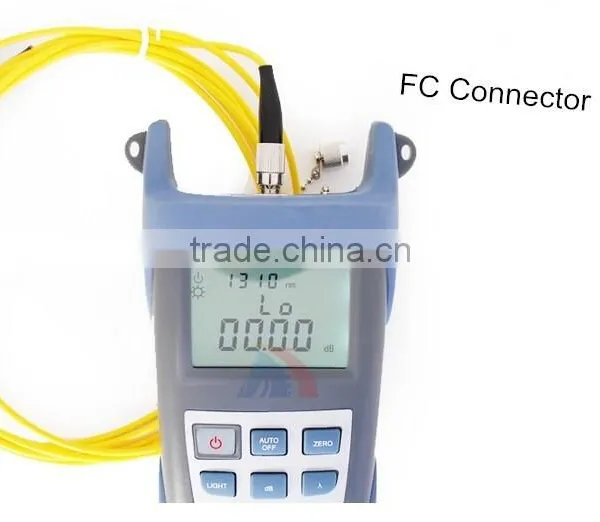

Pictures:
Papyment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
Contact me:
Our company is a professional manufacter in fiber optic equipment more than seven years,we are confident our products will satisfy you.
I will be here to solve your any problems,so welcome to contact me anytime,And i promise i will reply you in 24 working hours.
Our goal is to satisfy you as a customer and in return matanin our excellent reputation.
