Specifications
optical light power meter1.100% professional manufacturer
2.100% full tested before delivery
3.Fast delivery
3.CE,ROHS

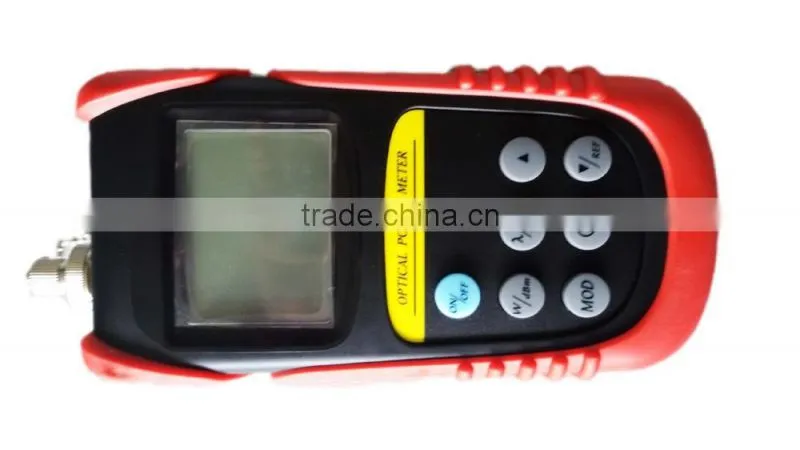

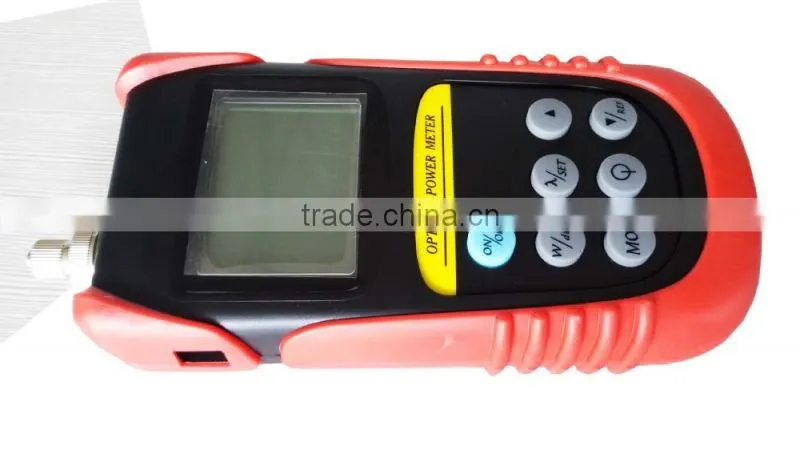

fiber optical light power meter
Features:
---Self-calibration function.
---High performance import laser detector.
---High sensitivity and large dynamic range
---0.01 dBm precision
---Automatically converted Range
---Small size, light weight, high reliability
---Battery-powered, convenient field work
---Line display or relative loss displayed.
Applications :
---Fiber optic production and research
---Testing and maintenance of fiber-optic network
--Teaching and testing in optical communication
Specifications:
Type |
6070 |
6070B |
Detector |
InGaAs |
Fitered InGaAs |
Wavelength Range(nm) |
850,1300,1310,1490,1550,1625 |
850,1300,1310,1490,1550,1625 |
Power Measurement range(dBm) |
+6 ~ -70 |
+26 ~ -50 |
Uncertainty |
+5% |
|
Resolution Ratio |
0.01dBm |
|
Power Supply |
2 AA1.5V Batteries or (Chargable battery) |
|
Optical Connector |
FC-type adapter (SC,ST is optional) |
|
Operating Temperature |
-10℃ to 60℃ |
|
Storage Temperature |
-20℃ to 70℃ |
|
Work Humidity |
<95% |
|
APO |
10min |
|
Dimensions |
16.5×8.0×3.5cm |
|
Weight(g) |
280g |
|

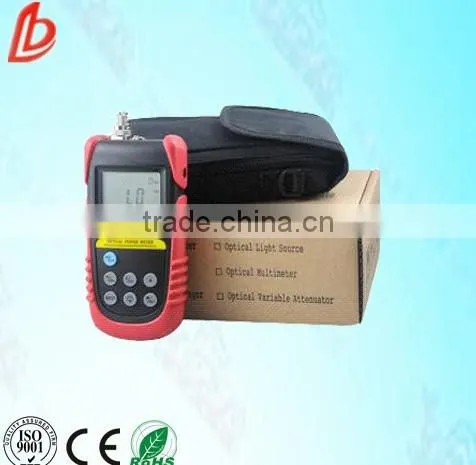

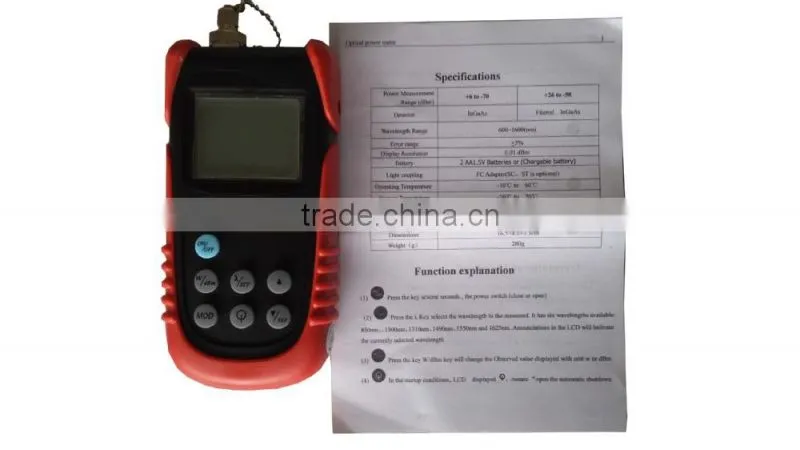

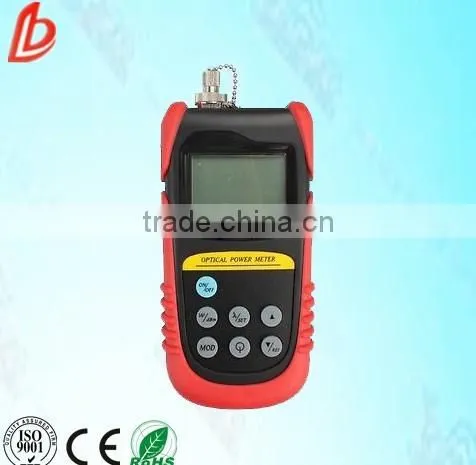

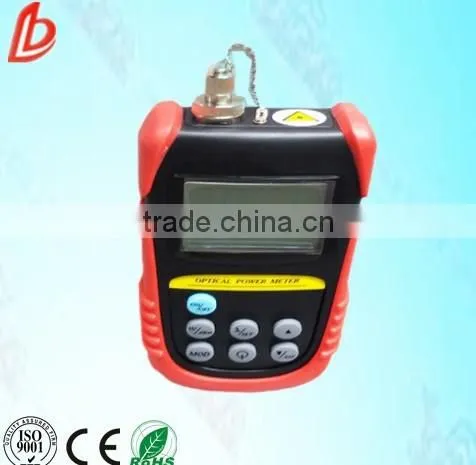

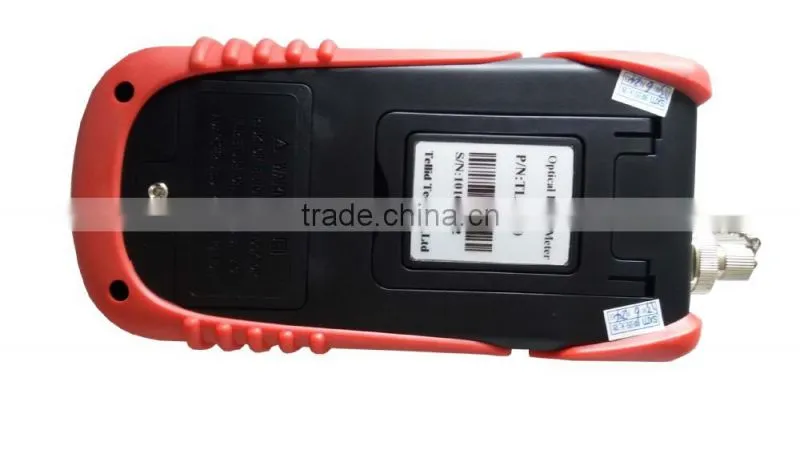

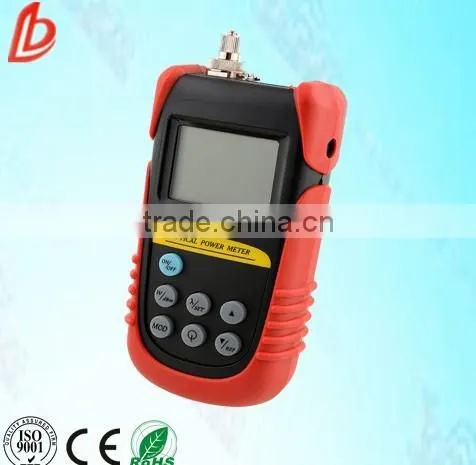

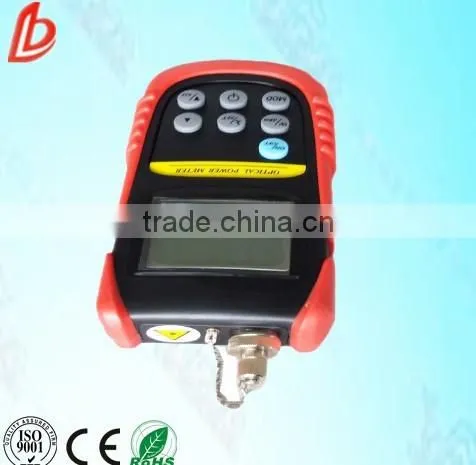

pictures:
Payment and Delievery:
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
