Product Details
Place of Origin: | Guangdong, China | Brand Name: | OEM | Model Number: | BLH-3200, Optical Power Meter |
Product Description
Specifications
Optical power meter1.High accuracy
2.Compact,ingenious appearance
3.Wide range of power measurement
4.Fast delivery
Optical power meter fiber optic laser power meter,optical power detector for cable testing Equipment
Description:

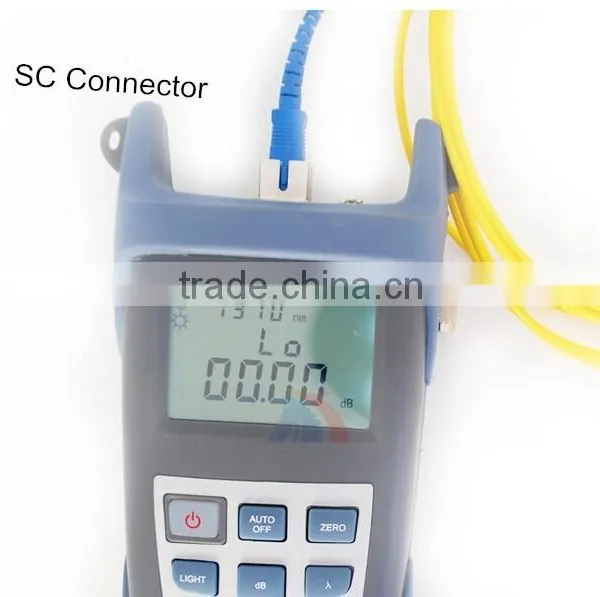

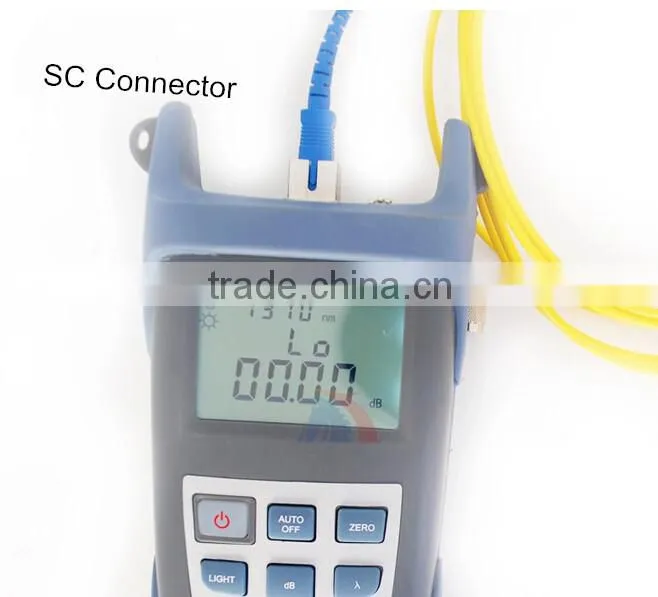

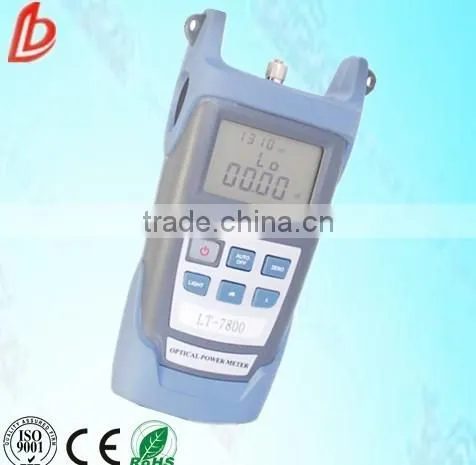

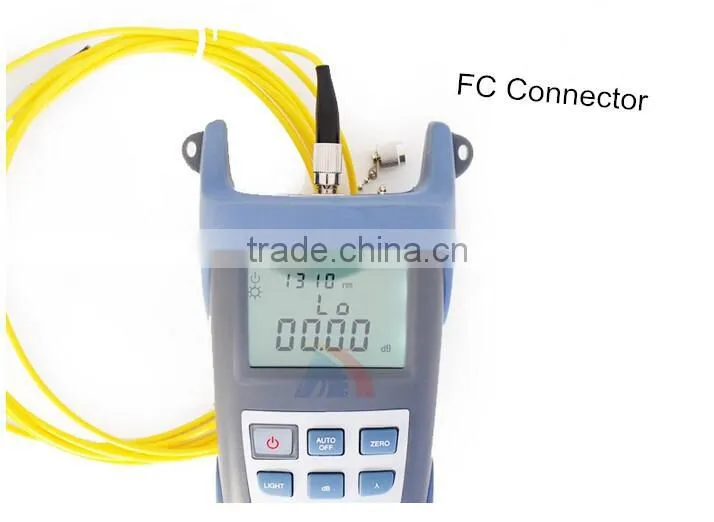

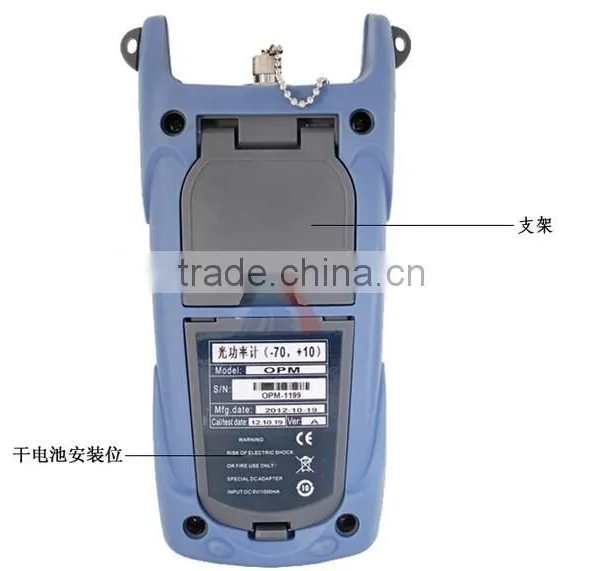

BLH-3200 type Handheld Optical Power Meter is a newly designed fiber optic tester, which aims at the installation, engineering acceptance and maintenance of fiber network.
Compared with other usual power meters, the 3200 has more functions, like automatic wavelength identification, auto wavelength switching, intelligent backlight, data saving via USB port.
Combined with 3200 handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers.
Features:
2.Frequency ID ---Auto frequency identification
3.2 types of backlight modes, manual or outside light intensity, which indicated by light red or blue color.
4.Intelligent backlight
5.Download via USB cable
6.USB communication port for saved testing records download
7.Reference power level can be set up and stored
8.User self-calibrating function
9.Auto-off function
10.Up to 240hrs battery life
Specification:
Item: | Specification: |
Product Name | Power Meter |
Calibration Wavelength(nm) | 800~1700 |
Detector type: | InGaAs |
Measurement Range(dBm) | -60 |
Uncertainty (dB) | +0.2(5%) |
linearity (dB): | 0.01 |
Display resolution(dB) | 0.03 |
Frequency ID Hz | 270 330 1K 2K |
Wave ID nm | 85,098,013,001,310,100,000,000,000 |
Date Storage Capacity | 1000 |
Communication Port | USB |
Connector | FC/SC |
Alkaline battery | 3AAA 1.5V or Li battery (9V) |
Power Adapter(V) | 8.4 |
Battery Operating time (h) | 240 without backlight |
Operation Temperature(oC) | -10°c ~ +60°c |
Storage Temperature(oC) | -25°c ~ +70°c |
Dimension(mm) | 172 x 82 x 33 |
Weight(g) | 310 |
Application:
Maintenance Telecom
Maintenance CATV
Test Lab of Fiber Optic
Optical fiber sensors
Pictures:
