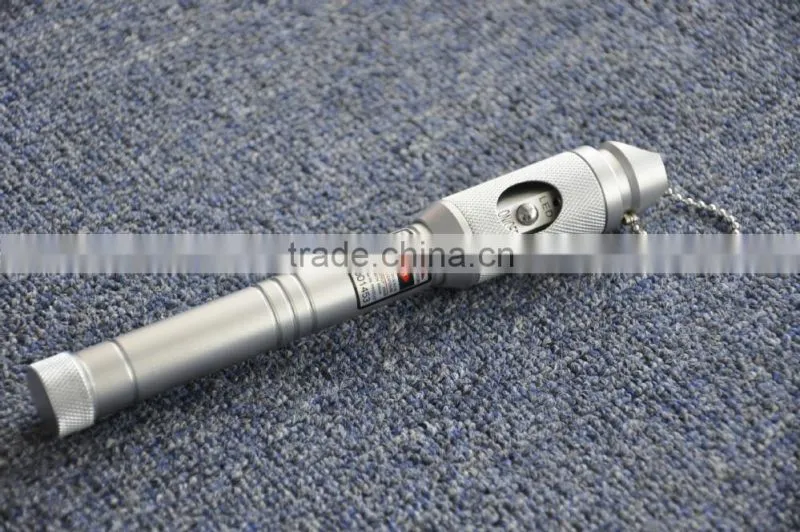

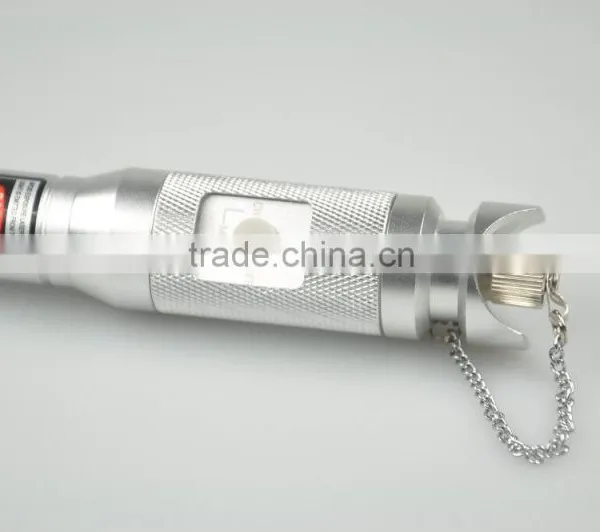

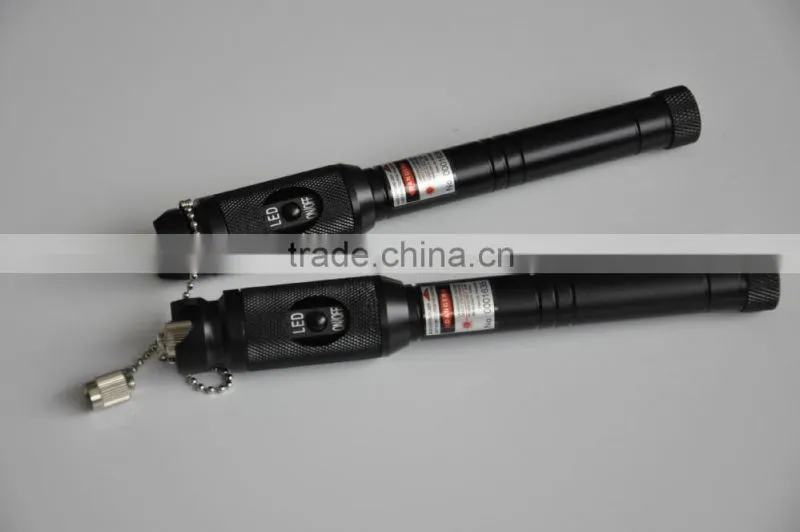

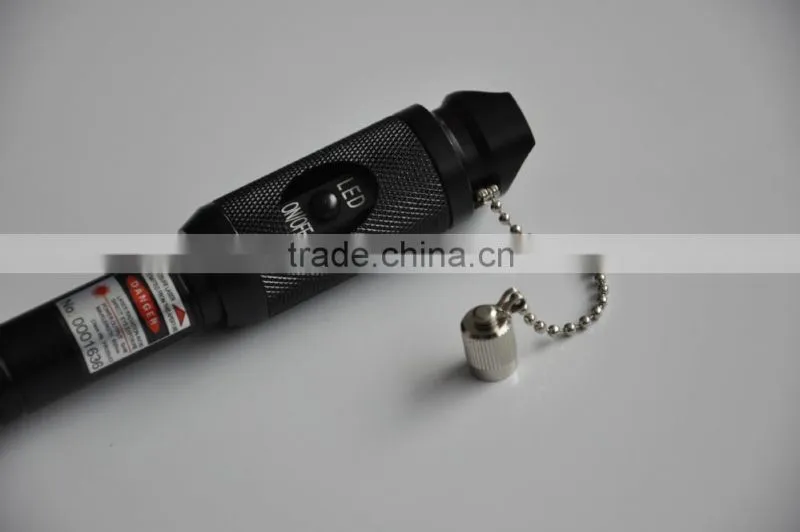

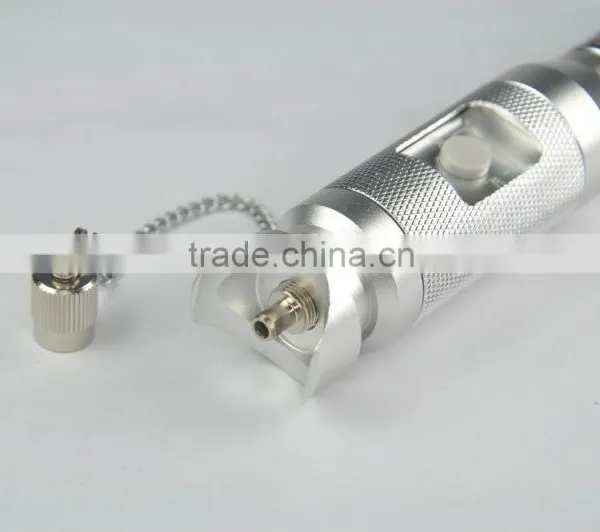

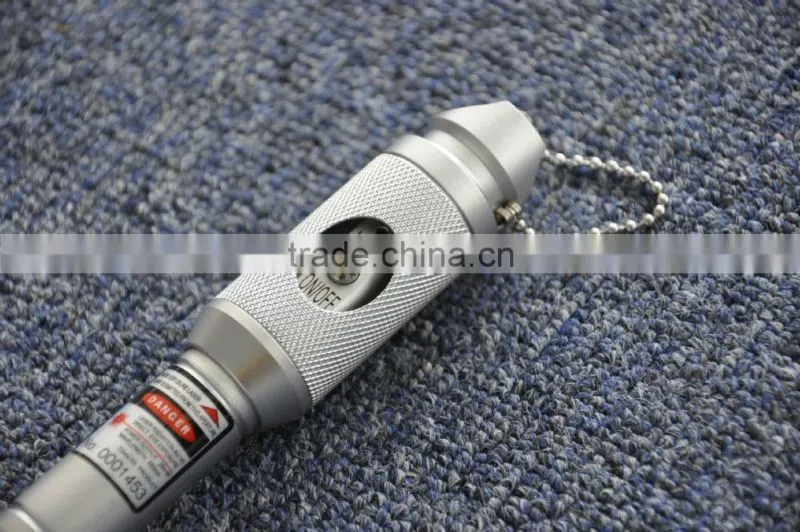

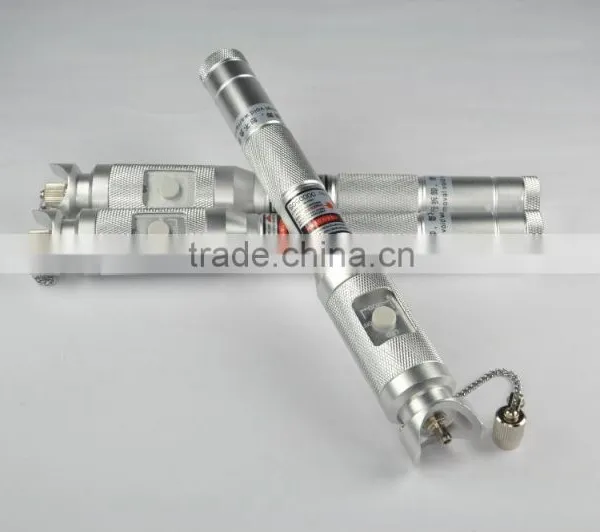

OEM mini tool portable cable visual fault locator underground cable fault locator
Description:
VFL650 Series is high quality of Optical Fiber visual fault locator,It contains the most advanced laser technology and microelectronics technology, and can be measured with various fiber optic adapter with ø2.5mm common Interface. It is very convenient for them to check the single-mode and multimode fiber
Features:
--LD laser source
--FC SC and ST interface
--Test far distance
--High reliability power output
--Low power consumption
--Nanotechnology multi-static protection
--Shell durable
--Pen-shaped design, portable and easy to use

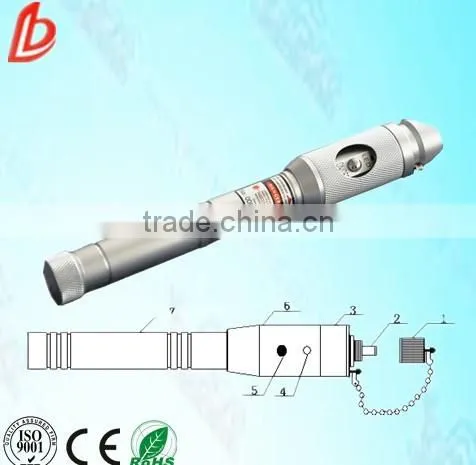

Outer Structure:
1-dust cap 2-optical interface 3-head of the indicator
4-LED 5-switich 6-body 7-tail
Applications :
1. Communication Workshop
2. Integrated wiring construction and Maintenance
3. Local Area Network
4. CATV engineering and maintenance
5.Fiber Optical Communication System
6.Other fiber projects
Usage:
1. Screw off the tail, then put batteries into the tail(Caution: anode of batteries point to bottom of the indicator, cathode of the batteries contact cathode of the indicator).
2. Connect the body with the tail, abd open dust cap, then press the switch. You will see the red laser emitting from the optical interface, at the same time, LED will be lighted up (Please don's stare at the beam, for fear of damaging your eyes).
3. Press the switch again, lightemitting changes to pulse mode, and the LED synchronize with lightemitting
(pulse frequency will be controlled at 2-3 Hz)
4. Press the switch again, the optical source will shut, and there is no more light. Meanwhile, LED put out (switching cycle mode is: continuous-pulse-shut).
5.Insert the fiber which you want to inspect into optical interface, then press the switch to choose working
mode of the light source (continuous or pulse).
6. When finish the working, please screw on the dust cap. If you don't use the indicator for a long time, you must take out the batteries, in case that batteries rot and destroy light source.
Maintenance and attentions:
1. Laser is harmful, so especially, you must protect your eyes. When the LD working, please do not exposure eyes to laser.
2. Generally, the higher temperature, the shorter life of the LD. Avoiding high temperature when you use it.
3. The head of fiber must be cleared up while the LED operates.
4. If don't use this light source, please screw on the dust cap in case that the dust fall into.
5. Take out the batteries when you don's use it.
Specification:
Model |
VFL650-2S |
||||||
Central wavelength |
650nm±10nm (635nm is available on request) |
||||||
Emitter type |
FP-LD |
||||||
Output power |
5mw |
10mw |
20mw |
30mw |
40mw |
50mw |
|
Laser Range |
≥5km |
≥10km |
≥20km |
≥30km |
>35km |
>40km |
|
Optical connector |
2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC. (Female) convertor can be provided on request |
||||||
Operating model |
Both CW and Pulse available |
||||||
Pulse frequency |
2Hz to 3Hz / 9Hz |
||||||
Power supply |
2AA alkaline batteries |
||||||
Operating temperature |
-20°C to 60°C |
||||||
Storage temperature |
-40°C to 85°C |
||||||
Dimension |
25 x 190mm |
||||||
Weight |
114.5g (without battery) |
||||||
Payment and Delievery:
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
