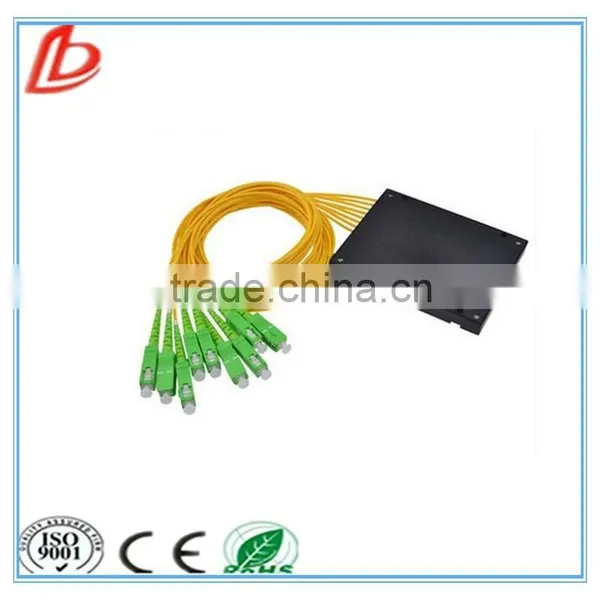

GPON EPON 1x8 ABS Box Module Type SC/APC Fiber Optical PLC Splitter Module
Description:
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. FCST provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
Features:
1. Low insertion loss and Low PDL
2. Uniform power splitting
3. High reliability
4. Excellent ervironmental stability
5. Compact size and various package
Application:
1.FTTx Systems
2.Digital,hybrid and AM-Video systems LAN,WAN and Metro Networks
3.CATV systems
4.Other applications in fiber optic systems
| Operating Wavelength(nm) | 1260~1650 | ||||
| Fiber Type | G657A1 or as customers' order | ||||
| Port Configuration | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
| Insertion Loss (dB) | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.6 | 0.8 | 1.2 | 1.5 | 2 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Dependent Loss (-40~85 ) (dB) | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Return Loss (dB) | 55/50 | ||||
| Operating Temperature | -40~+85 | ||||
| Directivity (dB) | ≥ 55 | ||||
| Storage Temperature | -40~+85 | ||||

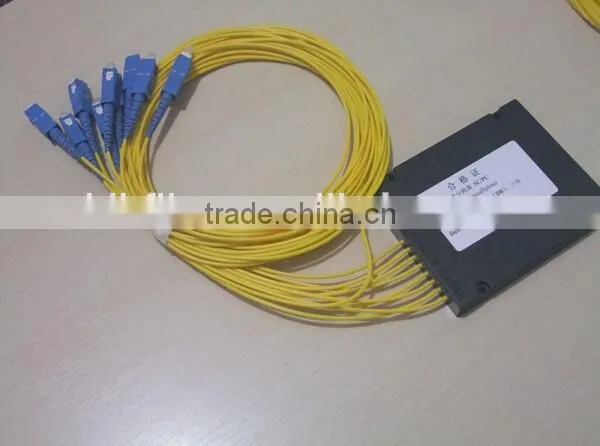

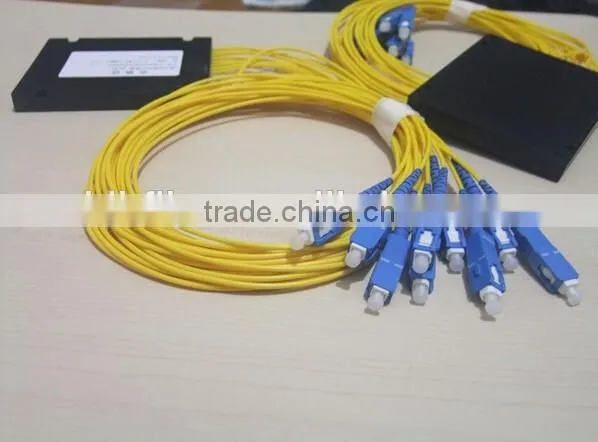

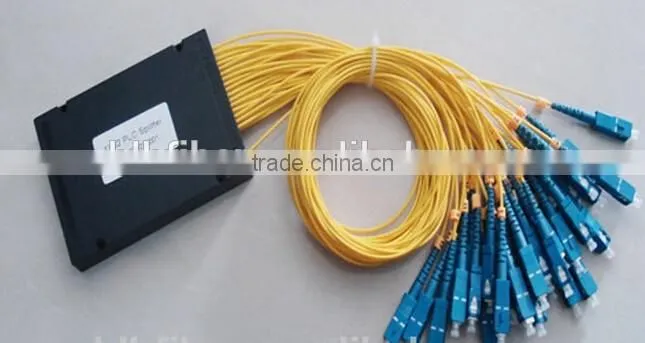

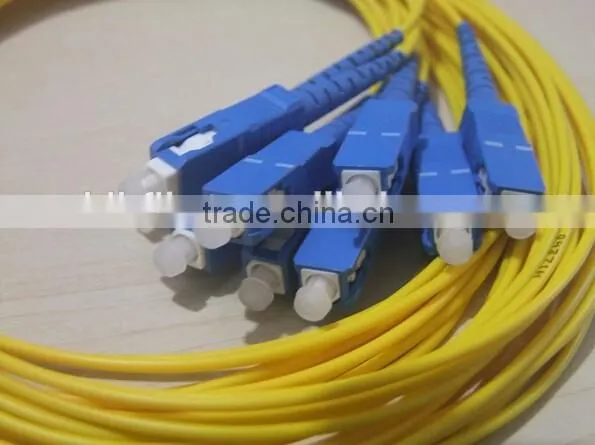

Pictures:
Payment and Delievey:
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
