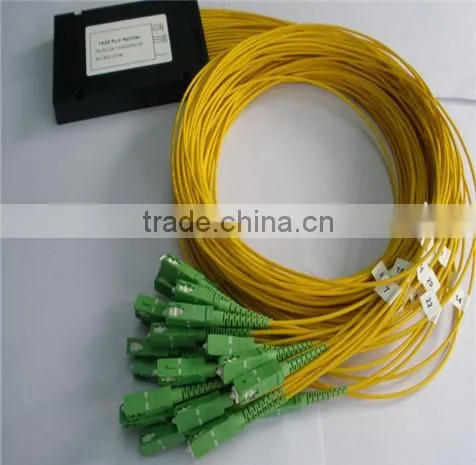

Supply 1*64 ABS Box Type PLC Fibre Optic Splitter / Fiber Obtic Splitter
Specifications
1.1260-1650nm
2.1x4/1x8/1x16/1x32/1x64
3.2x2/2x4/2x8~2x64
3.high reliability, cost-effective
Features
1.Low Insertion loss
2.Low PDL
3.Compact Design
4.Good channel-to-channel uniformity
5.Wide Operating Wavelength:From 1260nm to 1650nm
6.Wide Operating Temperature: From -40°C to 85°C
7.High Reliability and Stability
Description
| Item | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
| Fiber Type | SC | ||||||
| Working Wavelength | 1260nm~1650nm | ||||||
| Max. Insertion Loss (dB) | ≤4.1 | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.1 | ≤20.4 | ≤23.8 |
| Uniformity (dB) | ≤0.8 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
| PDL (dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
| Wavelength Dependent Loss (dB) | ≤0.8 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.2 |
| Return Loss (dB) | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
| Directivity (dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
| Item | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | 2x128 |
| Fiber Type | SC | ||||||
| Working Wavelength | 1260nm~1650nm | ||||||
| Max. Insertion Loss (dB) | ≤4.4 | ≤7.7 | ≤10.8 | ≤14.1 | ≤17.4 | ≤20.7 | ≤24.1 |
| Uniformity (dB) | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.5 | ≤2.5 |
| PDL (dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
| Wavelength Dependent Loss (dB) | ≤0.8 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.2 |
| Return Loss (dB) | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
Pictures
Payment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement
