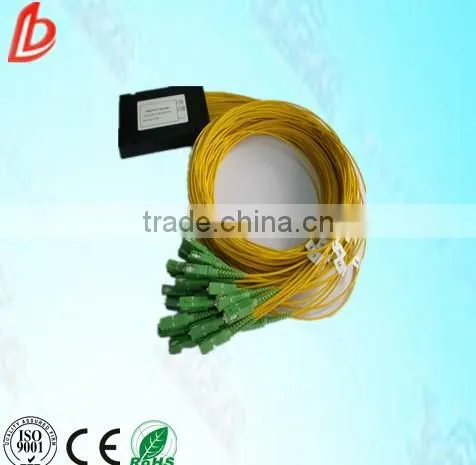

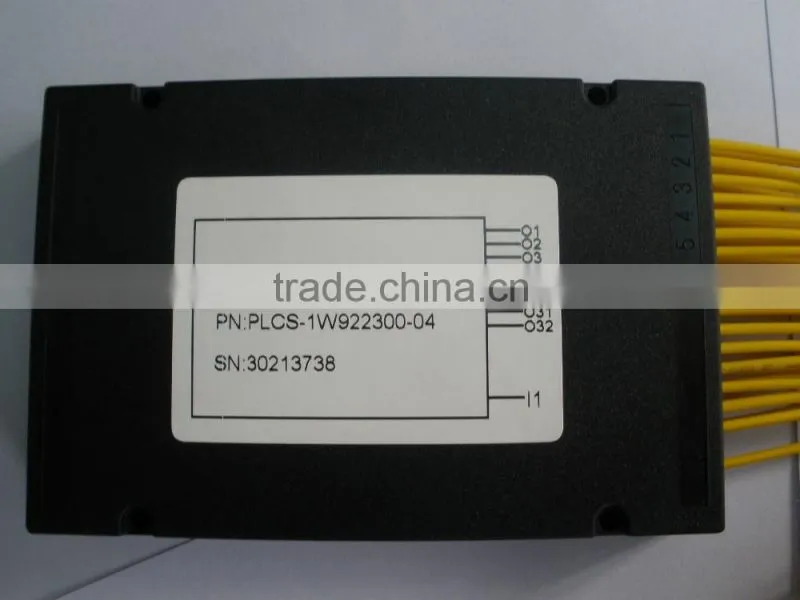

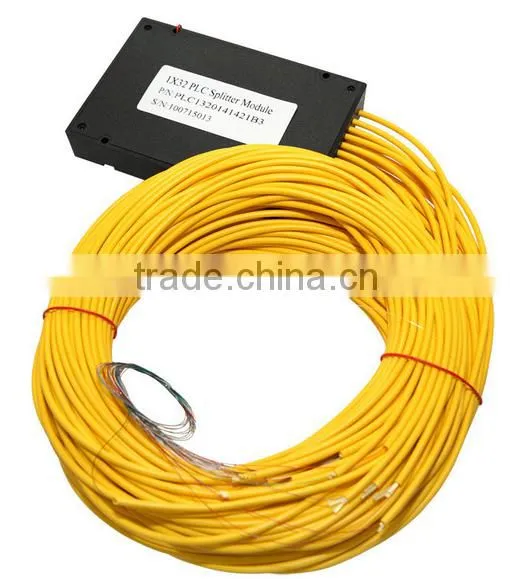

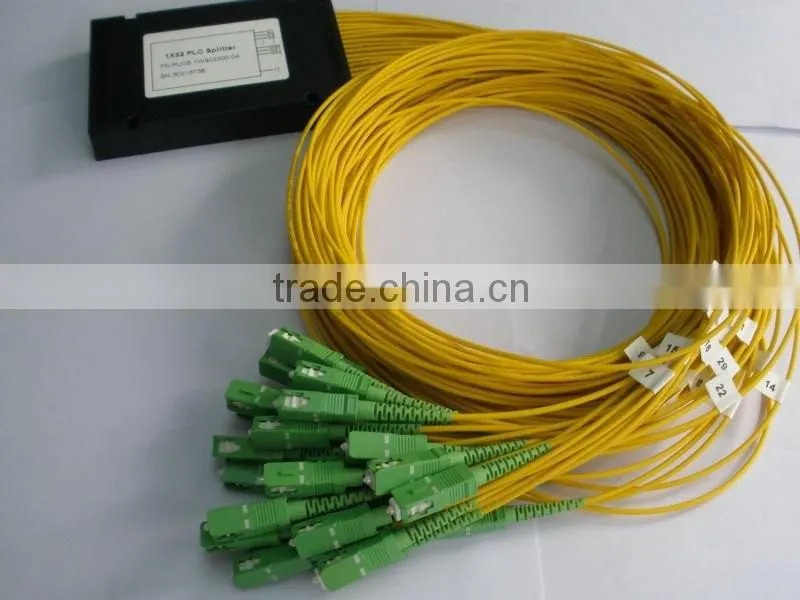

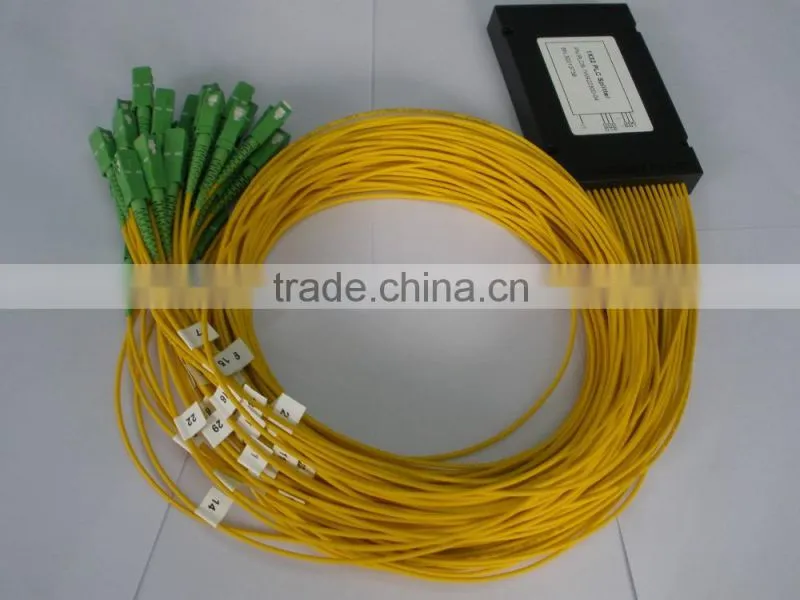

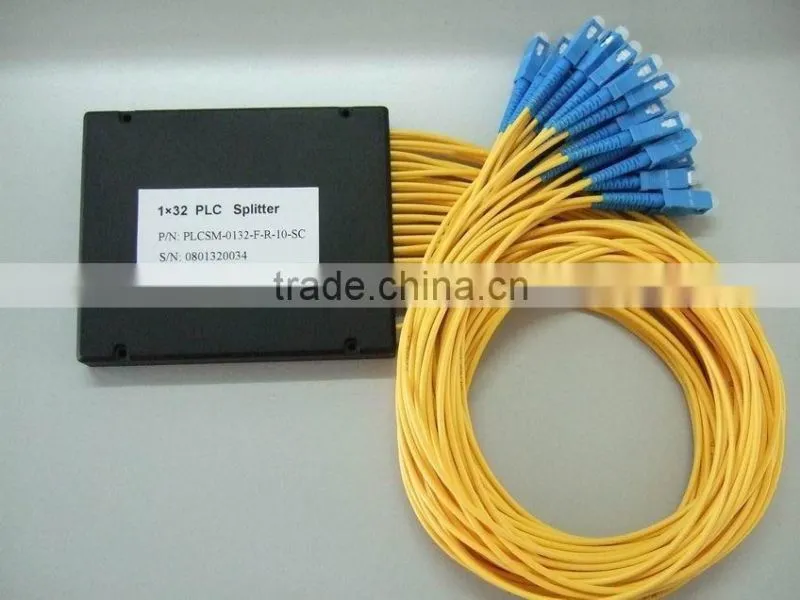

Fiber Optic 1*32 PLC Splitter,1*32 optical splitter,1 32 fiber optic splitter
Specifications
1.1260-1650nm
2.1x4/1x8/1x16/1x32/1x64
3.2x2/2x4/2x8~2x64
3.high reliability, cost-effective
Features
1.Low Insertion loss
2.Low PDL
3.Compact Design
4.Good channel-to-channel uniformity
5.Wide Operating Wavelength:From 1260nm to 1650nm
6.Wide Operating Temperature: From -40°C to 85°C
7.High Reliability and Stability
Description
| Item | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
| Fiber Type | SC | ||||||
| Working Wavelength | 1260nm~1650nm | ||||||
| Max. Insertion Loss (dB) | ≤4.1 | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.1 | ≤20.4 | ≤23.8 |
| Uniformity (dB) | ≤0.8 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
| PDL (dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
| Wavelength Dependent Loss (dB) | ≤0.8 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.2 |
| Return Loss (dB) | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
| Directivity (dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
| Item | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | 2x128 |
| Fiber Type | SC | ||||||
| Working Wavelength | 1260nm~1650nm | ||||||
| Max. Insertion Loss (dB) | ≤4.4 | ≤7.7 | ≤10.8 | ≤14.1 | ≤17.4 | ≤20.7 | ≤24.1 |
| Uniformity (dB) | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.5 | ≤2.5 |
| PDL (dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
| Wavelength Dependent Loss (dB) | ≤0.8 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.2 |
| Return Loss (dB) | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
Payment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement
Why we can choose you?
1): Reliable---we are the real company, we dedicate in win-win
2): Professional---we offer the products exactly you want
3): Factory---we have factory, so have reasonable price
How about the shipping cost?
If your goods is not large, we can send goods to you via counier, such as FEDEX, DHL,we cooperated with them for long time, so we have good price.If your goods is large, we will send to you via sea, we can quote the price to you, then you can choose whether use our forwarder or yours.
How about the price?Can you make it cheaper?
The price depends on the item your demand(quantity)
Beat quotation after receving full description of the item you want.
How about the sample time?What is the payment?
Sample time:3~10days after order & samples confirmed.
T/T,30% deposit, and balance is after the order is finished. Also we accept the PAYPAL, west union.
