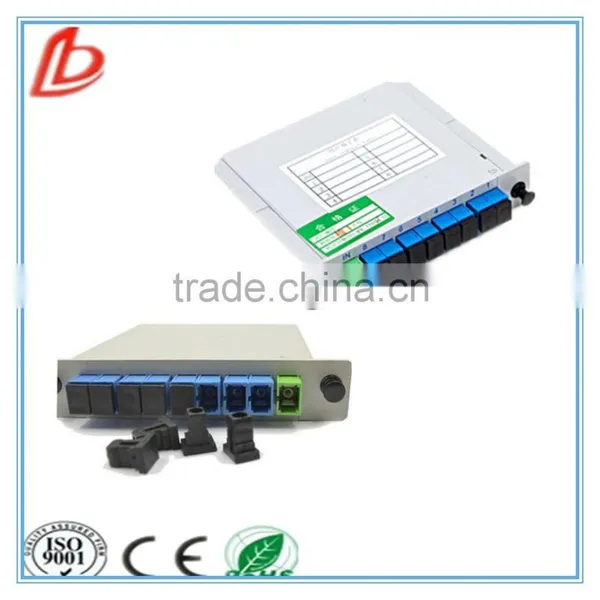

sc/upc 1x8 insertion type plc splitter ,insertion module pls optical splitter

1xN PLC Splitter Specification

Operating Wavelength(nm)

1260~1650

Fiber Type

G657A1 or as customers' order

Port Configuration

1x2

1x4

1x8

1x16

1x32

1x64

1x128

Insertion Loss (dB)

3.8/4.0

7.1/7.3

10.2/10.5

13.5/13.7

16.5/16.9

20.5/21.0

23.8/24.2

Loss Uniformity (dB)

0.4

0.6

0.8

1.2

1.5

2.0

2.5

Polarization Dependent Loss(dB)

0.2

0.2

0.2

0.25

0.3

0.35

0.4

Wavelength Dependent Loss(dB)

0.3

0.3

0.3

0.5

0.5

0.5

0.5

Temperature Dependent Loss (-40~85 ) (dB)

0.4

0.4

0.4

0.5

0.5

0.5

0.5

Return Loss (dB)

55/50

Operating Temperature

-40~+85

Directivity (dB)

≥ 55

Storage Temperature

-40~+85
