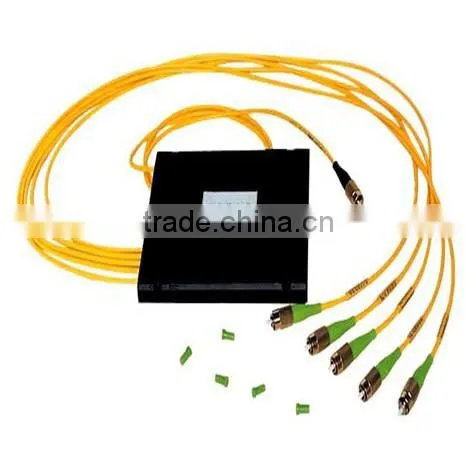

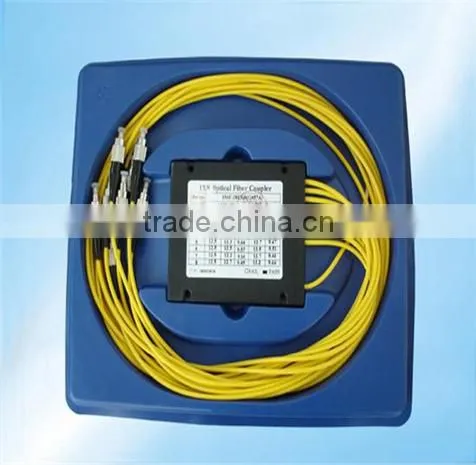

China Wholesale Rack Mount 1*6 Plc Fiber Optic Splitter and fc Fibre Coupler

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

PLC splitter

Shenzhen BLH Communication Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number PLC splitter

China Wholesale Rack mount 1*6 plc fiber optic splitter and fc fibre coupler

Specifications

1.1260-1650nm
2.1x4/1x8/1x16/1x32/1x64
3.2x2/2x4/2x8~2x64
3.high reliability, cost-effective

Features

1.Low Insertion loss

2.Low PDL

3.Compact Design

4.Good channel-to-channel uniformity

5.Wide Operating Wavelength:From 1260nm to 1650nm

6.Wide Operating Temperature: From -40°C to 85°C

7.High Reliability and Stability

Description

Item	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Fiber Type	SC
Working Wavelength	1260nm~1650nm
Max. Insertion Loss (dB)	≤4.1	≤7.4	≤10.5	≤13.8	≤17.1	≤20.4	≤23.8
Uniformity (dB)	≤0.8	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
PDL (dB)	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Wavelength Dependent Loss (dB)	≤0.8	≤0.8	≤0.8	≤1.0	≤1.0	≤1.0	≤1.2
Return Loss (dB)	≥50	≥50	≥50	≥50	≥50	≥50	≥50
Directivity (dB)	≥55	≥55	≥55	≥55	≥55	≥55	≥55

Item	2x2	2x4	2x8	2x16	2x32	2x64	2x128
Fiber Type	SC
Working Wavelength	1260nm~1650nm
Max. Insertion Loss (dB)	≤4.4	≤7.7	≤10.8	≤14.1	≤17.4	≤20.7	≤24.1
Uniformity (dB)	≤0.8	≤1.0	≤1.0	≤1.5	≤2.0	≤2.5	≤2.5
PDL (dB)	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Wavelength Dependent Loss (dB)	≤0.8	≤0.8	≤0.8	≤1.0	≤1.0	≤1.0	≤1.2
Return Loss (dB)	≥50	≥50	≥50	≥50	≥50	≥50	≥50
