GPON fiber optic 1x16 PLC splitter / Fiber Optical PLC Splitter Singlmode
Description:
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. FCST provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
Features:
1.Low insertion loss and Low PDL
2.Uniform power splitting
3.High reliability
4.Excellent ervironmental stability
5.Compact size and various package
Application:
1.FTTx Systems
2.Digital,hybrid and AM-Video systems LAN,WAN and Metro Networks
3.CATV systems
4.Other applications in fiber optic systems
Performance Index:
| TYPE | 850-MMC-1×5 | |||||||||||
| Test Wavelength | nm | 850 | ||||||||||
| Coupling Ratio | Equal | |||||||||||
| OutPut | OUT1 | Out2 | Out3 | Out4 | Out5 | |||||||
| Insertion Loss | dB | |||||||||||
| Coupling Ratio | % | 20.00% | 20.00% | 20.00% | 20.00% | 20.00% | ||||||
| PDL | dB | ≤0.25 | ||||||||||
| Directional | dB | ≥45 | ||||||||||
| Operating Temperature | ℃ | -20~+70 | ||||||||||
| Storage Temperature | ℃ | -40~+85 | ||||||||||
| Fiber Length | m | 1.0 | ||||||||||
| Dimension | mm | 100×80×10 | ||||||||||
| Fiber Type | MMC,50/125,3.0mm | |||||||||||
| Connector | SC,LC,ST,FC,etc. | |||||||||||

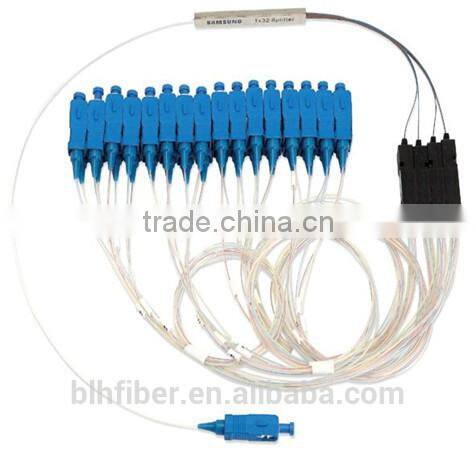

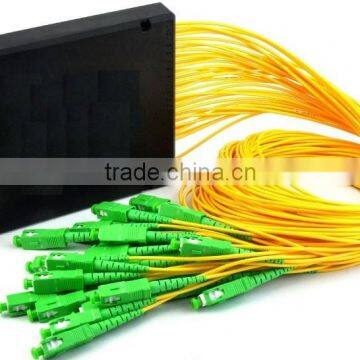

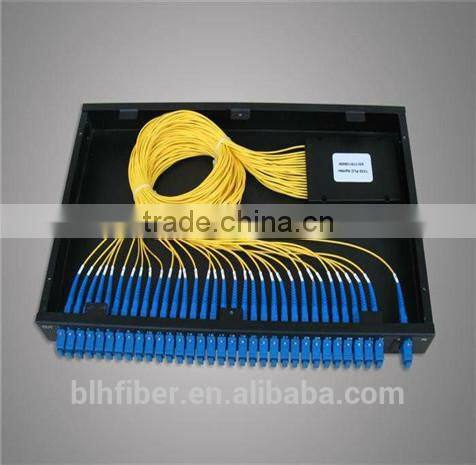

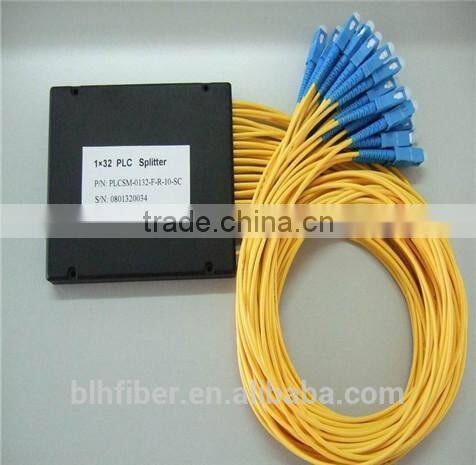

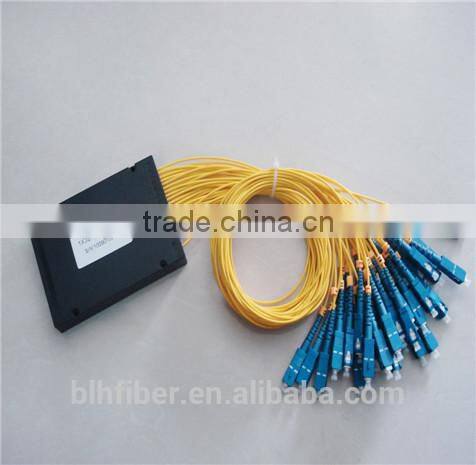

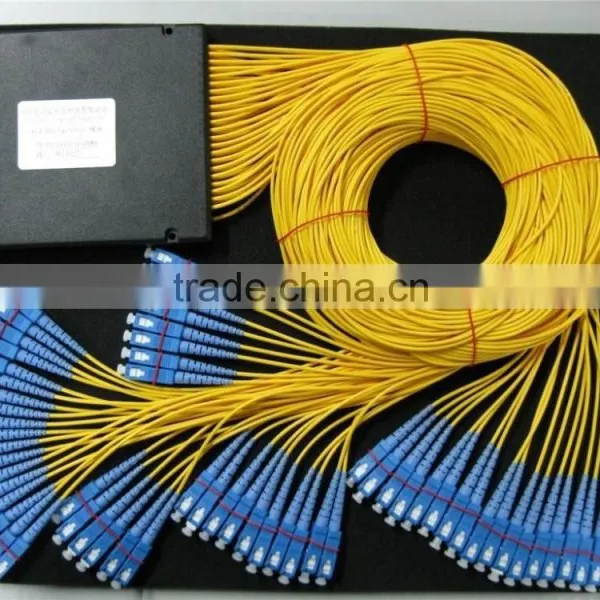

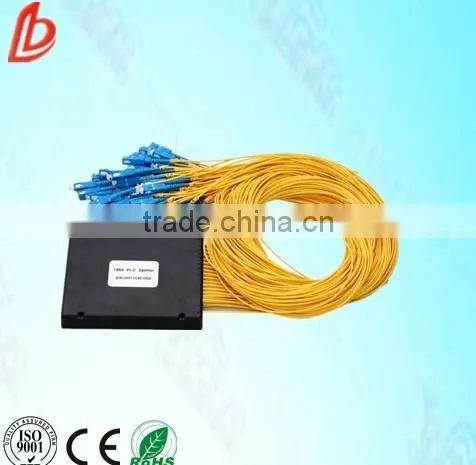

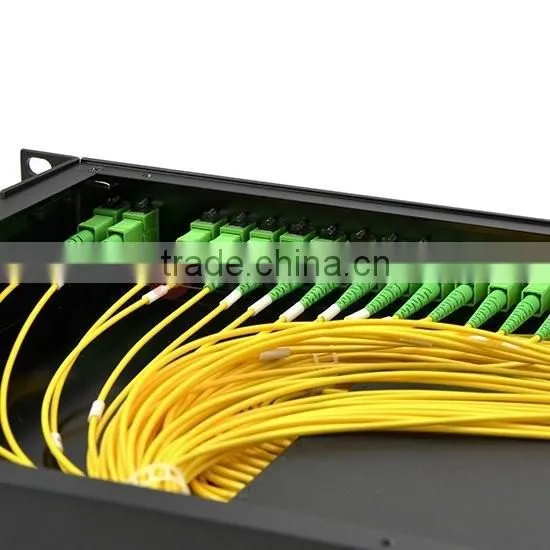

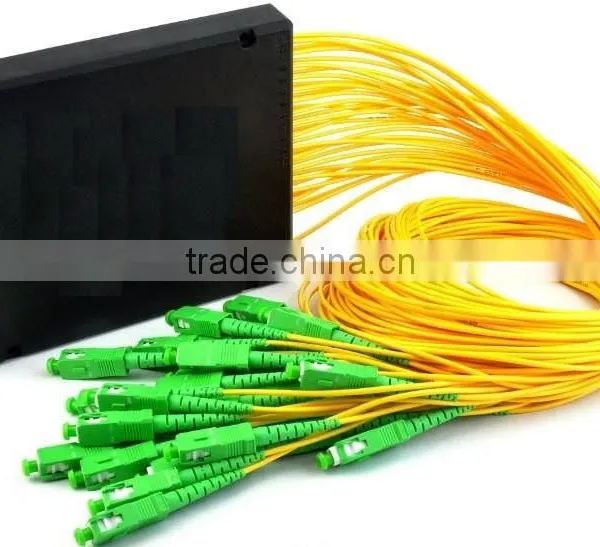

Pictures:
Payment and Delievey:
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
