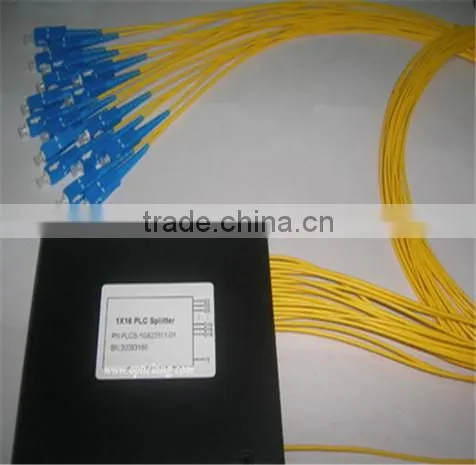

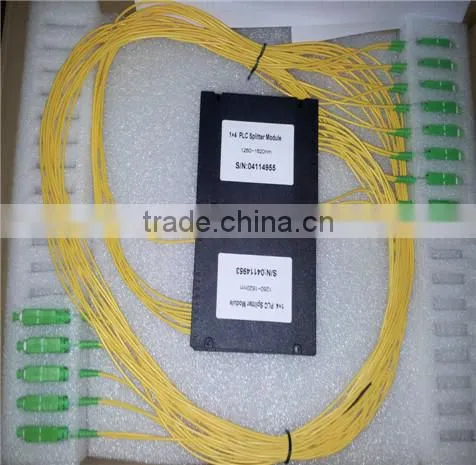

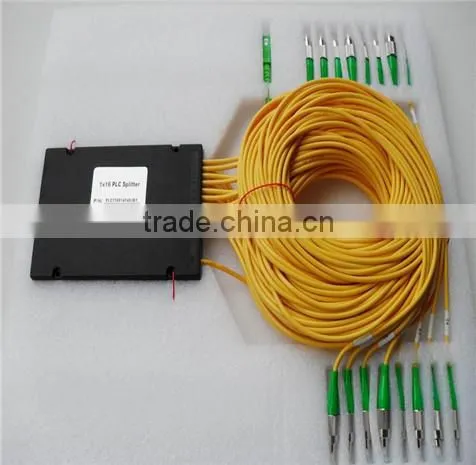

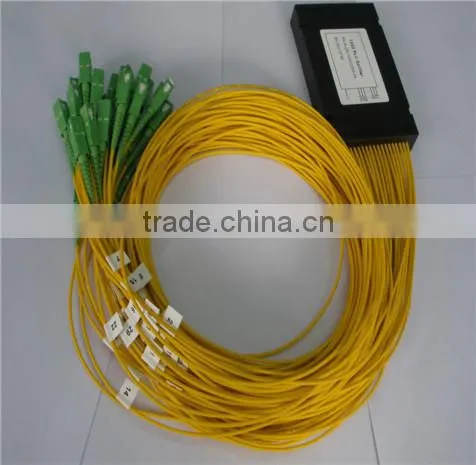

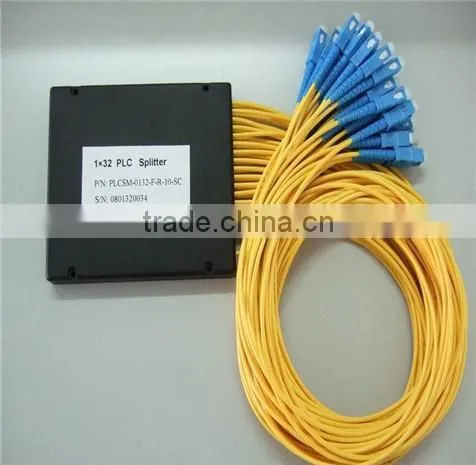

Fiber optic sc/ apc upc box FTTH 1x4 plc splitter,1x4 singlemode fiber optic splitter coupler
Description:
1,features:
PLC optical fiber Splitter (1x4; 1x8; 1x16; 1x32; 2x16; 2x32)
1.smaller size
2.lower loss of polarization and insertion
3.good directing fuction
4.stable and reliable
5.years' gold supplier and 7 years' factory experienc
6. full tested for all of productes customers’ ordered
7. free samples provided
2.Application
• Fiber Optic CATV;
• Fiber to home (FTTH);
• Passive Optical Networks;
• Fiber communication systems;
• Local Areal Networks (LAN)
Technical Parameters
| 1×N SPLITTER MODULES | ||||||||
| MODEL | Type | |||||||
| 1xN | 1x2 | 1x3 | 1x4 | 1x8 | 1x12 | 1x16 | 1x32 | 1x64 |
| Packing size | 40x4x4 | 40x4x4 | 40x4x4 | 40x4x4 | 40x4x4 | 4x4x40 | 55x7x4 | 55x12x4 |
| Directivity | Better than 55dB | |||||||
| Operating wavelength | 1260nm~1650nm | |||||||
| Temperature | -40~80°C | |||||||
| Pigtail | Input 250um dia. and output/ribbon fiber normal length:1m or customer specified | |||||||
| others | Customized specification available | |||||||
| 2×N SPLITTER MODULES | ||||||
MODEL |
Type | |||||
| 1xN | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 |
| Packing size | 40x4x4 | 40x4x4 | 40x4x4 | 55x7x4 | 55x7x4 | 65x12x4 |
| Or55x7x4 | ||||||
| Return loss | Better than 55dB | |||||
| Directivity | Better than 55dB | |||||
| Operating wavelength | 1260nm~1650nm | |||||
| Temperature | -40~80°C | |||||
| Pigtail | Input 250um dia. and output/ribbon fiber normal length:1m or customer specified | |||||
| others | Customized specification available | |||||
Papyment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
