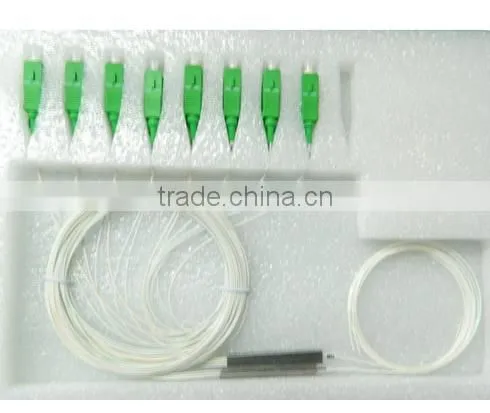

Mini plc splitter 1x8 steel tube 0.9mm ,bare fiber optical 1x8 splitter
PLC (Planar Lightwave Circuit) splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly,while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs.
The bare PLC splitters are used for small spaces that can be easily placed in a formal joint boxes and splice closure. In order to facilitate welding, it does not need specially designed for space reserved.
- Good uniformity and low insertion loss
- Low Polarization Dependent Loss
- Excellent Mechanical
- Stability Telecordia GR-1221 and GR-1209
- Components through TLC-Certified,Conform to YD1117-2001
- Operating environment: -40ºC to +85ºC
- High Polarization Extinction Ratio & Excellent Uniformity
- Fiber input: 0.9mm or 250μm fiber for choice
- Fiber output: 250μm bare fiber (It is benefit for splicing)G.657A Fiber
- full tested for all of productes customers’ ordered, free samples provided
Item |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
1x128 |
Fiber Type |
G.657.A |
||||||
Working Wavelength |
1260nm~1650nm |
||||||
Standard Insertion Loss (dB) |
≤4.2 |
≤7.4 |
≤10.6 |
≤13.9 |
≤17.2 |
≤20.8 |
≤24.0 |
P- Grade Insertion Loss (dB) |
≤4.0 |
≤7.1 |
≤10.4 |
≤13.7 |
≤16.9 |
≤20.4 |
≤23.7 |
Uniformity (dB) |
≤0.6 |
≤0.8 |
≤0.8 |
≤1.0 |
≤1.5 |
≤2.0 |
≤2.0 |
PDL (dB) |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.4 |
≤0.5 |
Wavelength Dependent Loss (dB) |
≤0.6 |
≤0.8 |
≤0.8 |
≤1.0 |
≤1.5 |
≤2.0 |
≤2.0 |
Return Loss (dB) |
≥50 |
||||||
Directivity (dB) |
≥55 |
||||||
Operating Temp. Gange |
-40℃~ +85℃ |
||||||
Note: The above parameter is for Splitter with connector. If w/o connector, insertion loss will reduce by 0.2dB. | |||||||
- Fiber to the point (FTTX)
- Fiber to the home (FTTH)
- Passive optical networks(PON, GEPON)
- Local area networks (LAN)
- Cable television (CATV)
- Test equipment
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
