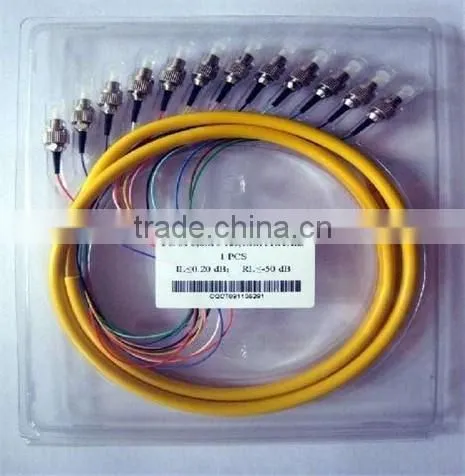

FC/UPC SM Simplex 2.0mm G.652D Fiber Optic Pigtail with Loose tube cable
Description:
A patchcord is a fiber optic cable used to attach one device to another for signal routing.
Two ends with connectors be named patchcord or jumpter , only one end with the connector be named pigtail.
SC stands for Subscriber Connector- a general purpose push/pull style connector. It is a square, snap-in connector latches with a simple push-pull motion and is keyed.
Features:
1.Low insertion loss,
2.High return loss
3.Manufactured by our own factory
4.Good repeatability and exchangeability
Applications:
1. Communication Workshop
2. FTTH
3. Local Area Network
4. Fiber Sensor
5. CATV
6. Fiber Optical Communication System
Specifications:
Optical Performance |
Single Mode | |
| Insertion Loss (dB) | ≤0.3dB | |
| Return Loss (dB) | ≥ 45dB (PC) | |
| ≥ 60dB (APC) | ||
| Repeatability (dB) | ≤0.1dB | |
| Durability ( dB) | ≤0.2dB Typical Change, 1000matings | |
| Tensile Strength(N) | 100N | |
| Operating Temperature(°C ) | -40~+80 °C | |
| Storage Temperature(°C) | -40~+85 °C | |
| Endface Geometry | ||
| Parameter | 2.5um Ferrule | |
| UPC | APC | |
| Radius of Curvature(mm) | 10~25mm | 5~15mm |
| Apex Offset(nm) | 0~50mm | 0~50mm |
| Fiber Height(nm) | ±50nm | ±50nm |
| Angle(°) | ---- | 7.7-8.3Degree |

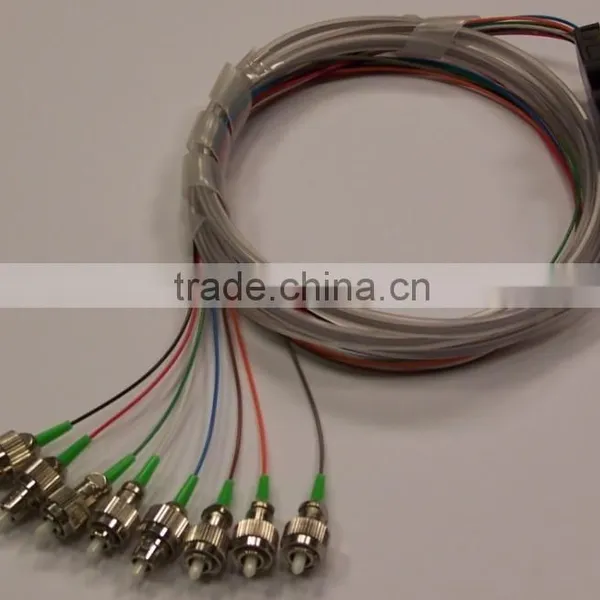

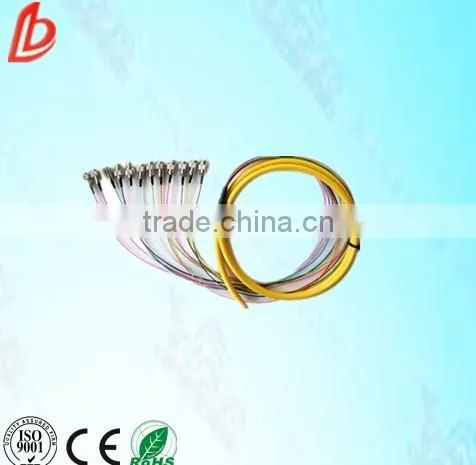

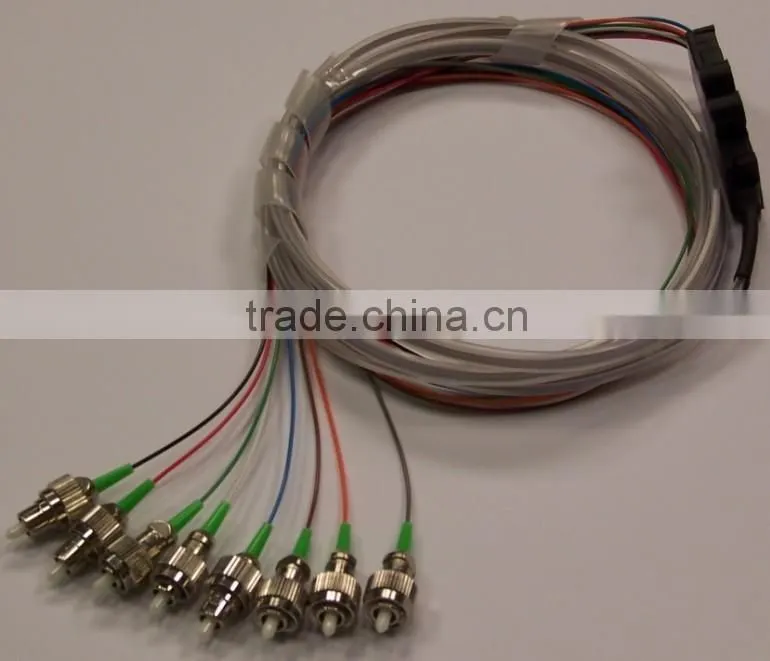

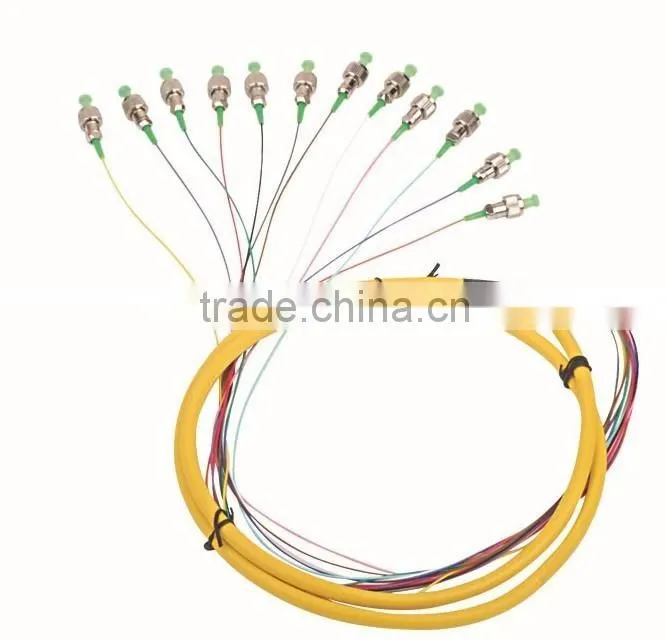

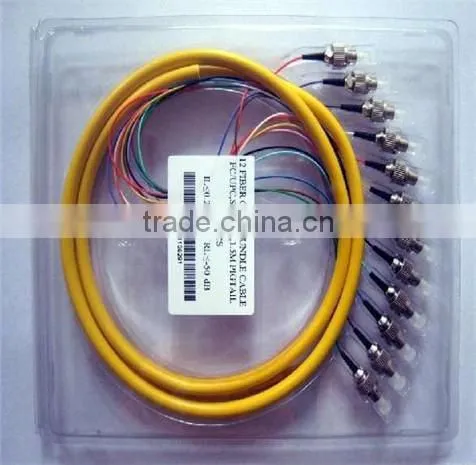

Pictures:
Payment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
