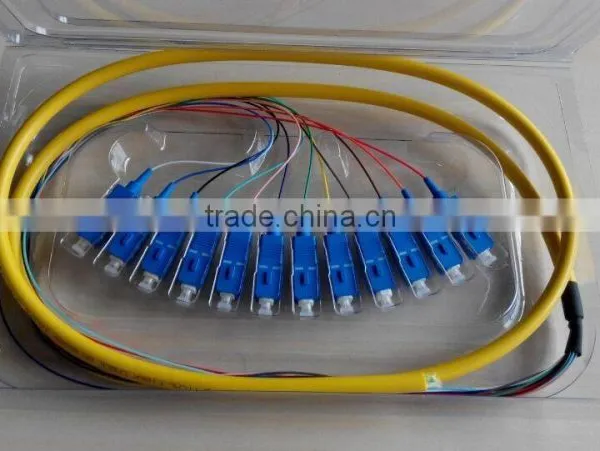

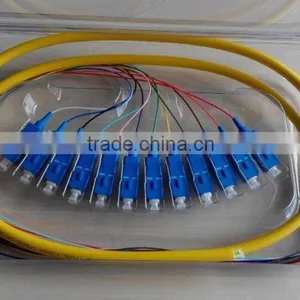

900um SM 12 core fiber optical pigtail with sc upc connctor
Description:
A patchcord is a fiber optic cable used to attach one device to another for signal routing.
Two ends with connectors be named patchcord or jumpter , only one end with the connector be named pigtail.
SC stands for Subscriber Connector- a general purpose push/pull style connector.
It is a square, snap-in connector latches with a simple push-pull motion and is keyed.
Features:
1. Compliant with Telcordia,GR-326-CORE, TIA/EIA and IEC
2. Low Insertion Loss & Back Reflection
3. Environmentally Stable
4. 2,4,6,8, 12 and 24 Channels Avaliable
5. Save Duct Space,Cost and Installation time
6. Easy Push/Pull Operation
7 Breakout Cable/Bundle Distribution Cable/ Ribbon Cable/Outdoor Waterproof cable optional
Applications:
1.Telecommunication
2.Computer networks
3.CATV networks
4.Active device termination
5.Instrumentation
Specifications:
| SPECIFICATIONS | ||||||
| Items | Single mode | Multimode | ||||
| PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |
| Insertion Loss | < 0.2dB | < 0.3dB | ||||
| Return Loss | ≥ 45dB | ≥ 50dB | ≥ 60dB | ≥ 35dB | ||
| Durability | < 0.1dB typical change, 1000 times |
|||||
| Operating Temperature | -40 to +75 | -40 to +75 | ||||
| Ferrule Hole Sizes | 125.0+1/-0um, Conentricity: ≤ 1um | 125um, Conectricity: 1≤ 3um | ||||
| 125.3+1/-0um, Conentricity: ≤ 1um | 127um, Conectricity: 1≤ 3um | |||||
| 125.5+1/-0um, Conentricity: ≤ 1um | 128um, Conectricity: 1≤ 3um | |||||
| 126.0+1/-0um, Conentricity: ≤ 1um | ||||||
Pictures:
Our factory:
Certification:
Papyment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
Contact me:
Our company is a professional manufacter in fiber optic equipment more than seven years,we are confident our products will satisfy you. Our goal is to satisfy you as a customer and in return matanin our excellent reputation
I will be here to solve your any problems,so welcome to contact me anytime,And i promise i will reply you in 24 working hours.
