Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > OM3 SC 0.9mm Multimode Fiber Optic Pigtail,simplex 50/125um Optical Fiber Pigtails

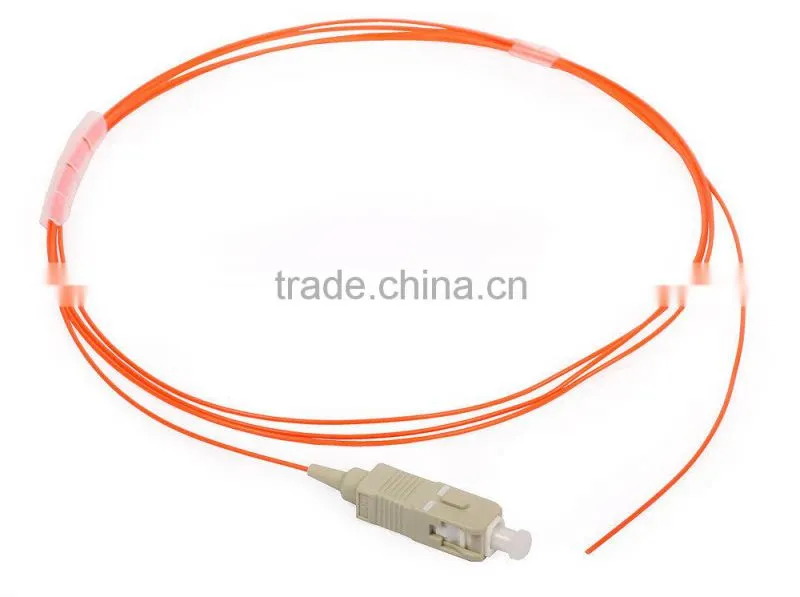

OM3 SC 0.9mm Multimode Fiber Optic Pigtail,simplex 50/125um Optical Fiber Pigtails

OM3 SC 0.9mm Multimode Fiber Optic Pigtail,simplex 50/125um Optical Fiber Pigtails thumbnail-3

OM3 SC 0.9mm Multimode Fiber Optic Pigtail,simplex 50/125um Optical Fiber Pigtails thumbnail-4

OM3 SC 0.9mm Multimode Fiber Optic Pigtail,simplex 50/125um Optical Fiber Pigtails thumbnail-5

OM3 SC 0.9mm Multimode Fiber Optic Pigtail,simplex 50/125um Optical Fiber Pigtails thumbnail-6

OM3 SC 0.9mm Multimode Fiber Optic Pigtail,simplex 50/125um Optical Fiber Pigtails photo-1

OM3 SC 0.9mm Multimode Fiber Optic Pigtail,simplex 50/125um Optical Fiber Pigtails photo-2

OM3 SC 0.9mm Multimode Fiber Optic Pigtail,simplex 50/125um Optical Fiber Pigtails photo-3

OM3 SC 0.9mm Multimode Fiber Optic Pigtail,simplex 50/125um Optical Fiber Pigtails photo-4

OM3 SC 0.9mm Multimode Fiber Optic Pigtail,simplex 50/125um Optical Fiber Pigtails photo-5

OM3 SC 0.9mm Multimode Fiber Optic Pigtail,simplex 50/125um Optical Fiber Pigtails photo-6

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

OM3

Contact Supplier Request Quote Chat Now

Shenzhen BLH Communication Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name OEM

Model Number OM3

OM3 SC 0.9mm multimode fiber optic pigtail,simplex 50/125um optical fiber pigtails

Description:

The optical Fiber Connectors (Commonly we call Patch Cords) is a length of optical cable with

connectors fixed on two ends to realize the optical path active connection. Pigtail is a length fiber

cable with only one connector fixed on one end. If both sides of the connector or its end-face are

different, we call it hybrid patch cord. According to the transmission medium, it divides Single Mode

and Multi Mode; according to the connector structure type, it divides FC, SC, ST, MU, D4, E2000,

LC etc.; according to the polished ceramic end-face, it divides PC, UPC and APC.

Features:

Compliance with Telcordia, ANSI, IEC, TIA/EIA, NTT and JIS specifications*

Low insertion loss & back reflection

One-piece construction & pull-proof design

Free-floating ceramic ferrule

Precision anti-rotation key and corrosion resistant body

UL-rated plastic housing and boots in a variety of colors

Telcordia style boots

Adapters with choice of metal or plastic housing, mount styles & flange options

Applications:

1. Communication Workshop
2. FTTH
3. Local Area Network
4. Fiber Sensor
5. CATV
6. Fiber Optical Communication Systemy

Specification:

Item	SM			MM
Connector Type	LC SC ST FC fiber optic pigtail
Fiber Diameter(um)	9/125um			50/125um	62.5/125um
Cable OD(mm)	0.9
length
Endface Type	PC	UPC	APC	PC	PC
Typical Insertion Loss(dB)	<0.30dB	<0.30dB	<0.30dB	<0.30dB	<0.30dB
Return Loss(dB)	>45dB	>50dB	>60dB
angle	N/A	N/A	8±0.3°	N/A	N/A
Insert-pull Test(dB)	<0.20dB	<0.20dB	<0.20dB	<0.20dB	<0.20dB
Interchangeability(dB)	<0.20dB	<0.20dB	<0.20dB	<0.20dB	<0.20dB
Anti-tensile Force(N)	>10
Temperature Range(ºC)	-40ºC~+80ºC

Pictures:

Factory & Certificate:

Papyment and Delievery

Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable

Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
