Specifications
drawer fiber optic patch panelfessional manufacturer
2.High reliablility
3.CE,FCC,ROSH,ISO9001

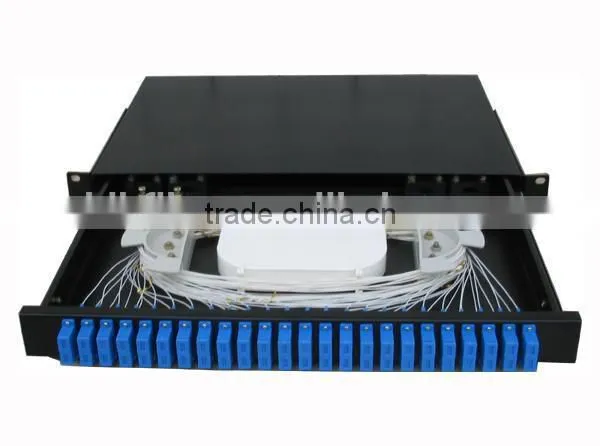

Rack-mount drawer type fiber optic patch panel 12 ports/24 ports optical fiber patch panel
1.Description:
Fiber optic patch panel ,Fiber optic distribution frame, fiber optic distribution Box, ODF ,fiber optic Indoor wall box, Fiber optic Outdoor wall box,Optical Terminal Box (OTB) is mainly used for connecting the indoor/outdoor optical cables, optical patch cords and optical pigtails.
Types:
1 Rack-mount fixed type
2 Rack-mount drawer type
3 Rack mount ODF
4 indoor wall-mount type
5 Outdoor waterproof wall-mount type
2.Features:
-Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation
--The box are Rack Mounted, which is convenient to install and dismantle;
--The splice tray could be piled one upon another, flexible to turn;
--The curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray;
--The box is of unique structure, reasonable layout, and has adequate room for operation
--Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to
make sure the cables are clamp tightly;
--The indoor type is of excellent seal performance, which could prevent water from entering effectively;
3.Specification:
Environmental temperature: |
-25- 55°C |
Relative humidity: |
<85%(when the temperature is below 30°C) |
Atmosphere pressure: |
70~106Kpa |
Insulating resistance: |
>2×104 MΩ/500VDC |
Voltage-resistance strength: |
Under the effect of 15kv/DC/1min, non-puncture, and no arc-over. |
4.Applications:
---Single-mode and multimode fibers
---Both Construction and maintenance
---Aerial, buried, underground, pedestal
---Insert or outside buildings
---FTTx, Metro and Enterprise networks
---Up to qo Gigabit data rates
---High density substitute for connectors

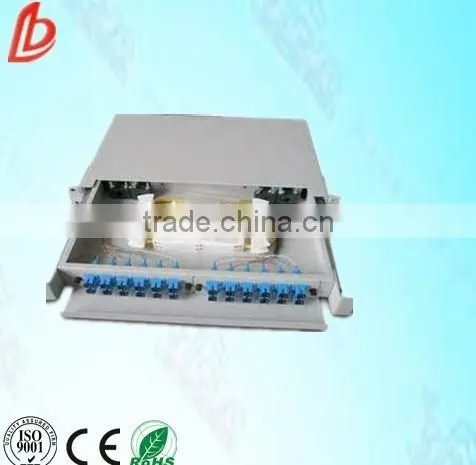

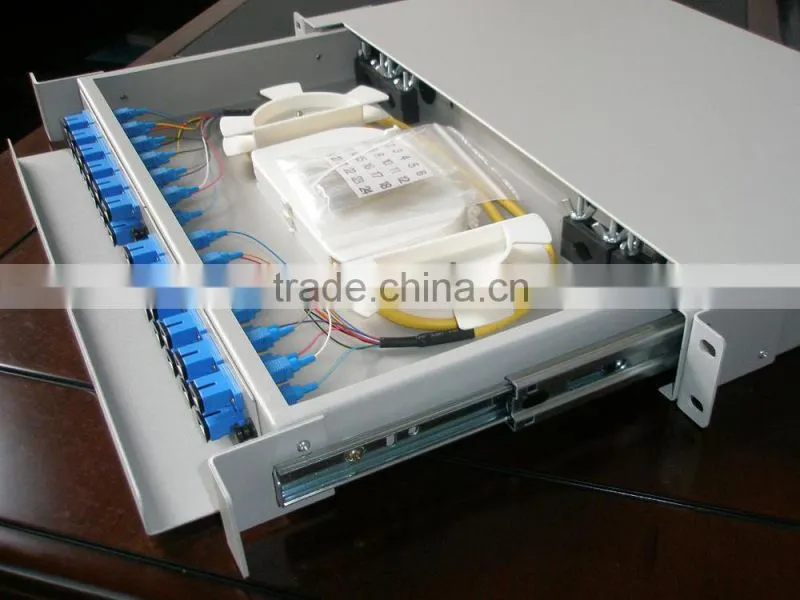

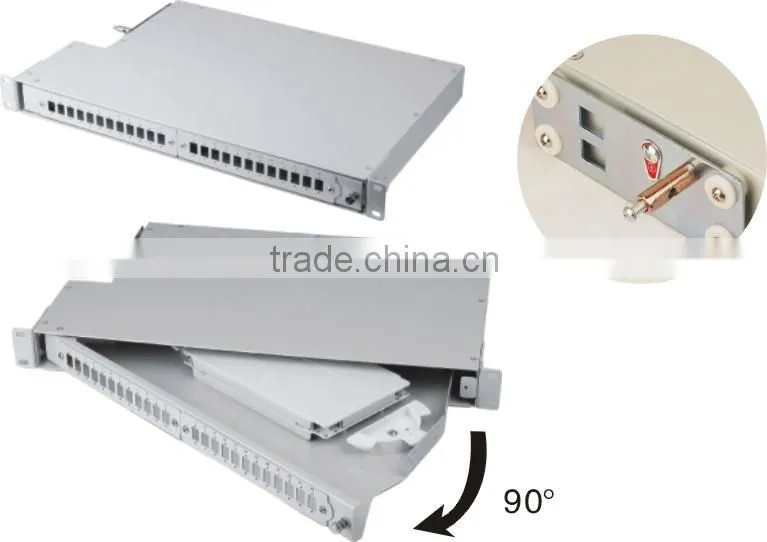

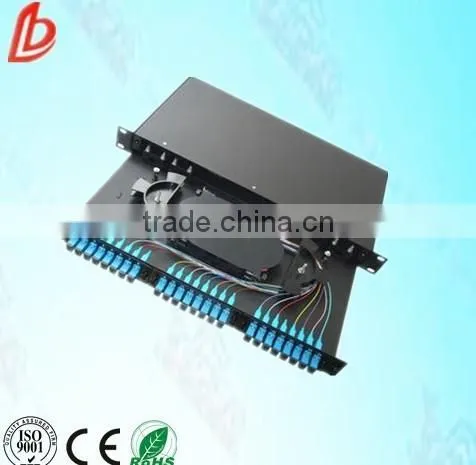

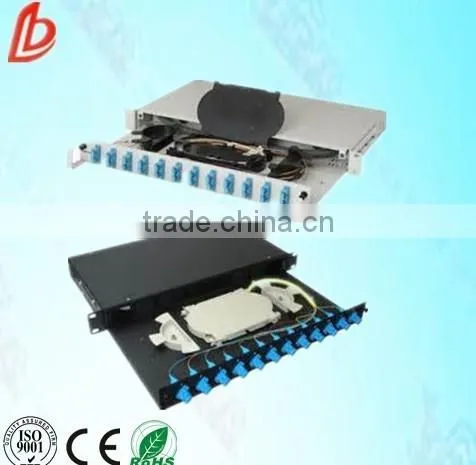

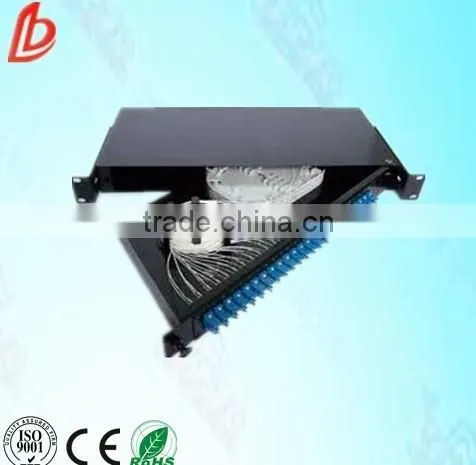

5.Pictures:
6.Papyment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
