Free sample rack mount or wall mount fiber patch panel/lc fiber patch panel

Specifications

fiber patch panel
fessional manufacturer
2.High reliability
3.free sample&fast delivery
4.CE,FCC,ROSH,ISO900

        Free sample rack mount or wall mount fiber patch panel/lc fiber patch panel

Description:

Fiber optic patch panel ,Fiber optic distribution frame, fiber optic distribution Box, ODF ,fiber optic Indoor wall box, Fiber optic Outdoor wall box,Optical Terminal Box (OTB) is mainly used for connecting the indoor/outdoor optical cables, optical patch cords and optical pigtails.

Features:

--Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation

--The box are pull-push, which is convenient to install and dismantle;

--The curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray;

--The box is of unique structure, reasonable layout, and has adequate room for operation

--The indoor type is of excellent seal performance, which could prevent water from entering effectively;

Application:

---Single-mode and multimode fibers

---Both Construction and maintenance

---Aerial, buried, underground, pedestal

---Insert or outside buildings

---FTTx, Metro and Enterprise networks

---Up to qo Gigabit data rates

---High density substitute for connectors

Specifications:

Environmental temperature:	-25- 55°C
Relative humidity:	<85%(when the temperature is below 30°C)
Atmosphere pressure:	70~106Kpa
Insulating resistance:	>2×104 MΩ/500VDC
Voltage-resistance strength:	Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.

Types:

1 Rack-mount fixed type

2 Rack-mount drawer type

3 Rack mount ODF

4 indoor wall-mount type

5 Outdoor waterproof wall-mount type

Material:

All components of the box should be made of materials which are of excellent anticorrosion performance, if not, then it should be static plastic sprayed; the physical and chemical capabilities of the material should be stable and should be compatible.

• The melting temperature for the material used for the heat shrinkable protective sleeves and the
• stuffingshould be no less than 120°C, the intenerate temperature should be higher than 90°C, and could be used under -25 - 40°C;
• 4.2 All material should be innocuous, no-corrosion, no side effects to human being or other equipments.

Properties:

• Suitable for the protective connection between cables and pigtails
• Suitable for the connection between optical cables and optical communication device
• Unique structure, easy installation, for indoor use

Components:

Cover, inner components, fiber connecting protector Inner components

a. Cover: the cover should be easily opened for easy installation; it should be provided with an outlet device

for fiber metal high voltage protective earthing;

b. Inner components as follows:

• Bracket: supporting the inner structure.
• Fiber Optic Splice Tray: storing fiber connectors (together with the protective components) and the spare fibers, with the length being about no less than 1.6m; the curve radius of the coiled spare fiber should be no less than 37.5mm; makes that are easily recognizable should be provided for reconnection of fibers; should have adequate room for convenient operation;
• Fixing Device: used for the fixation of fiber protective tubes and the fixation of pigtails.

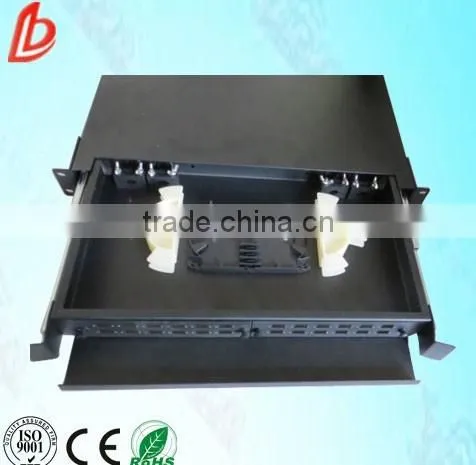

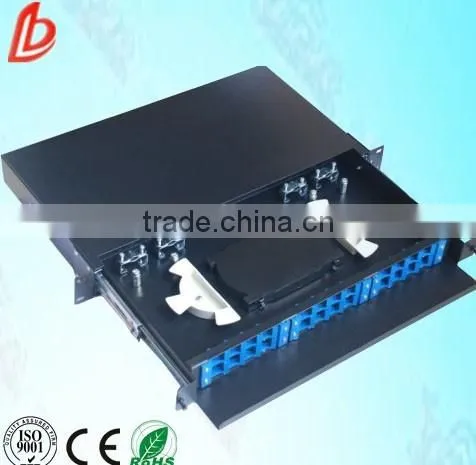

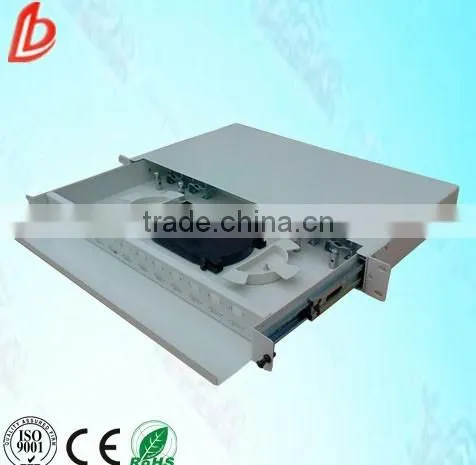

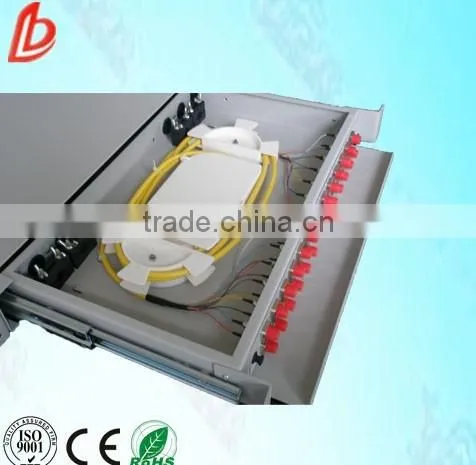

 Pictures:
