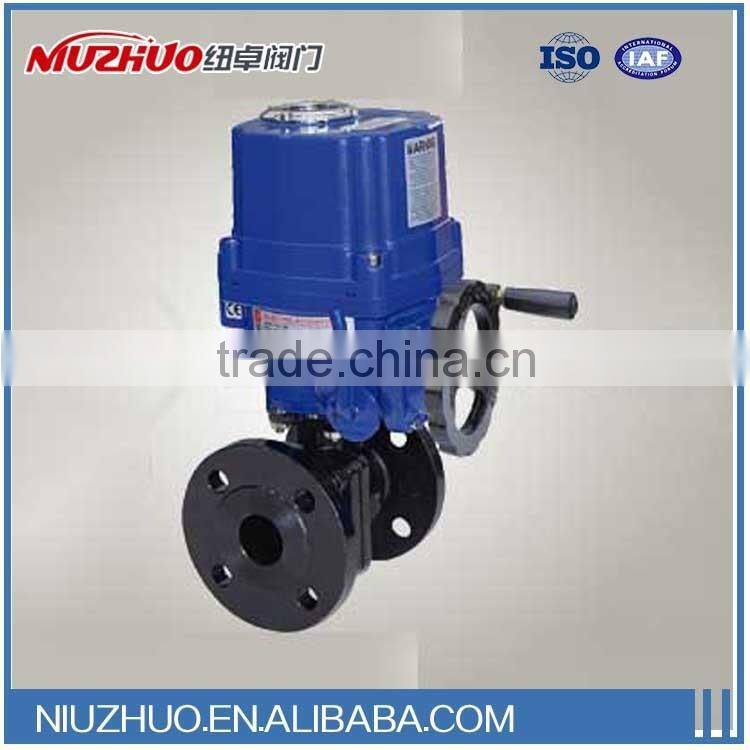

Latest Innovative Products Electric O-type Ball Valve Bulk Buy From China

Custom processing:Yes

Brands:NZ

model:ZKRR

Material:Stainless steel, carbon steel

Connection Type:Flange

Nominal diameter:DN15-DN200(mm)

Applicable medium:Water, steam, oil, a variety of highly corrosive chemical media, weak acid medium, ammonia, nitrogen, oxygen, hydrogen, liquefied petroleum gas, air

Environmental pressure:Atmospheric pressure

Operating temperature:Room temperature

Flow direction:unidirectional

Drive mode:Manually

Parts and accessories:Actuator

form:spiral

Type (channel position): Second formula

standard:GB, American standard, Japanese standard

Seal type:Hard seal, soft seal

Configuration features and applications

ZDRR electric O type cut off ball valve,It is composed of an electronic rotary electric actuator 3610R or 3410R series ball valve adjustment mechanism. It has a simple structure, fast switching, flow capacity, zero leakage characteristics, suitable for high viscosity, fibrous, solid particles from fluid occasions, widely used in industrial automation field of petrochemical, metallurgy, light industry and other gas and liquid pipelines in the medium to cut off or circulation.
Implementation of standards

1,Design and Manufacturing:GB12237-89,API608,API 6D,JPI 7S-48,BS5351,DIN3357.
2,Flange size:JB/T74~90(JB74~90),GB9112~9131,HGJ44~76,SH3406,ANSI B16.5,JIS B2212~2214,NF E29-211,DIN2543.
3,Length of the structure:GB12221-89,ANSI B16.10,JIS B2002,NF E29-305,DIN3202.
4,Verify that the primary test:JB/T 9092,API 598.

Technical parameters and performance indicators

The main technical parameters regulating valve mechanism

Note: 1. According to the site conditions of use, can be equipped with explosion-proof actuators.

       2. Can provide users with GB, ANSI, JIS, JIS, DIN standard flanges and other foreign products, the flange distance is determined by the user.

Rotary actuator main technical parameters

Performance indicator

Leakage: completely cut off does not leak tight (test medium is water).

Dimensions

PN16 Electric O-type ball off Dimensionsmm

PN64 Electric O-type ball off Dimensionsmm
