Excellecnt in network SC/UPC - SC/UPC 2 Meters odc2 fiber optic patchcord/jumper
- 10000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card PayPal
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Guangdong, China | Brand Name: | OEM | Model Number: | sc |
Product Description

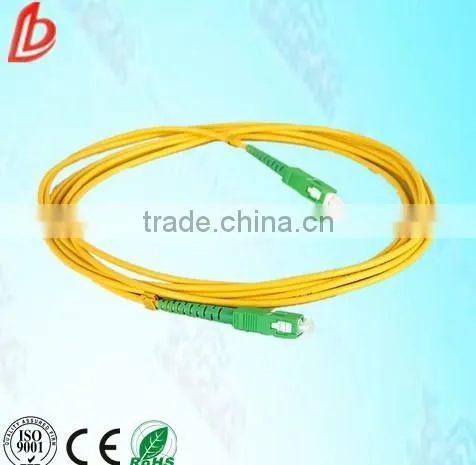

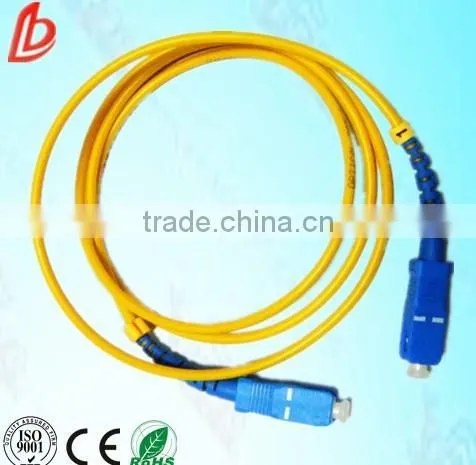

Excellecnt in network SC/UPC - SC/UPC 2 Meters odc2 fiber optic patchcord/jumper
Specification:
*Single mode and Multimode
*Cable 0.9mm,2.0mm,2.4mm or 3.0mm with simplex or duplex and 4,6,8,12,24,48 cores
*Custom order length
*Cable color green , yellow , orange and customized
*All parts compliant with RoHS
*IEC standard compatible
*GR-326-CORE Compliant
Features:
Low insertion loss, high return loss
High dense connection, easy for operation
High credibility and stability
Good in repeatability and exchangeability
Applications :
1. Communication Workshop
2. FTTH
3. Local Area Network
4. Fiber Sensor
5. CATV
6. Fiber Optical Communication System
Performance index:
Parameter | Unit | FC, SC, LC,ST fiber optic patch cord | ST, MU | MT-RJ, MPO | E2000 | ||||||||
SM | MM | SM | MM | SM | MM | SM | |||||||
PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
Insertion loss(typical) | dB | ≤ 0.3 | ≤ 0.2 | ≤ 0.3 | ≤ 0.2 | ≤ 0.3 | ≤ 0.2 | ≤ 0.2 | ≤ 0.3 | ≤ 0.2 | ≤ 0.2 | ≤ 0.3 | ≤ 0.3 |
Return loss | dB | ≥ 45 | ≥ 50 | ≥ 60 | ≥ 30 | ≥ 45 | ≥ 50 | ≥ 30 | ≥ 45 | ≥ 50 | ≥ 35 | ≥ 55 | ≥ 75 |
Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 | ||||||||
Exchangeability | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ||||||||
Vibration | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ||||||||
Operating temperature |
| -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
Storage temperature |
| -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
Cable diameter | mm | 3.0, 2.0, 0.9 | 3.0, 2.0, 0.9 | 3.0, 2.0, 0.9 | 3.0, 2.0, 0.9 |
Availabilities:

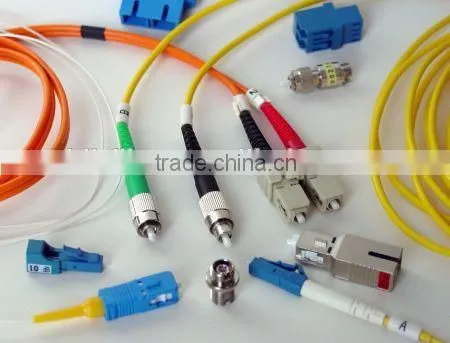

- Full specifications, FC, SC, ST, LC, MTRJ, E2000, etc.
- Simplex and Duplex assemblies available
- Singlemode and multimode available
- PC, UPC and APC polishing available
- PVC and LSZH outer sheath.
- 0.9mm, 2.0mm and 3.0mm cable size.
- Hybrid patch cords are available upon request

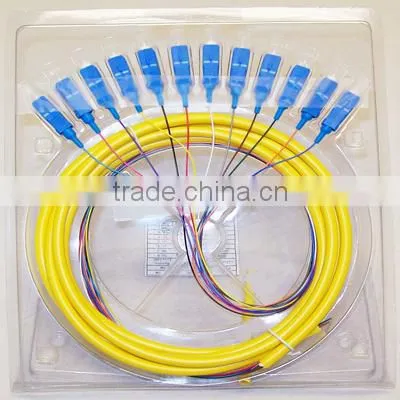

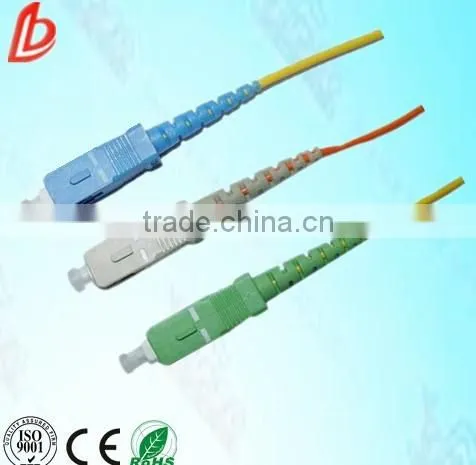

- Pigtail available
- Loopback available
- Customized length
Ordering Information:

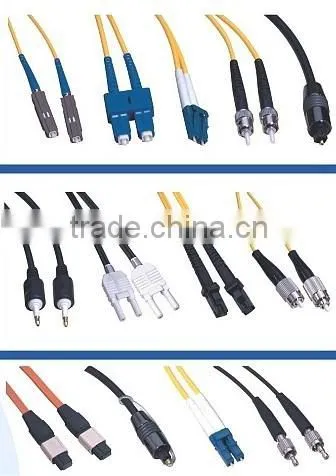

(1)Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA, FDDI, ESCON
(2)Ferrule End-face: PC, UPC, APC
(3)Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3(10G)fiber
(4)Cable Quantity: Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
(5)Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
(6)Cable Length: 1, 2, 3 meter or customized(7)Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
Pictures
Payment and Delievery:
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
