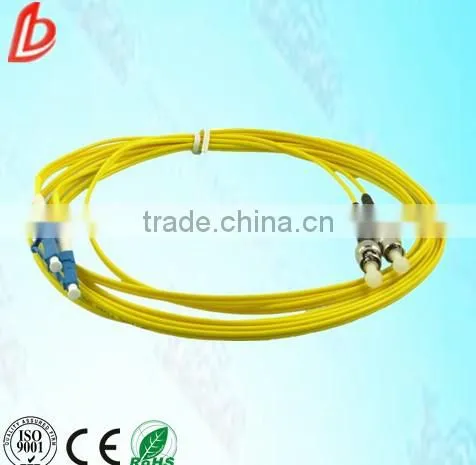

0.9 2.0 3.0mm singlemode 9/125um st-lc pvc jacket fiber optic patch cord pvc jacket
Specification:
1.Single mode and Multimode
2.Cable 0.9mm,2.0mm,2.4mm or 3.0mm with simplex or duplex and 4,6,8,12,24,48 cores
3.Custom order length
4.Cable color green , yellow , orange and customized
5.All parts compliant with RoHS
Features:
1.Low insertion loss, high return loss
2.High dense connection, easy for operation
3.High credibility and stability
4.Good in repeatability and exchangeability
Applications:
1.CATV
2.Active dvice termination
3.Telecommunication networks
4.Metro
5.Local Area Networks(LANs)
6.Data Processing networks
7.Test Equipment
8.Premise installations.
9.Wide Area Networks(WANs)
Performance index:
Parameter |
Unit |
FC, SC, LC,ST fiber optic patch cord |
ST, MU |
MT-RJ, MPO |
E2000 |
||||||||
SM |
MM |
SM |
MM |
SM |
MM |
SM |
|||||||
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
||
Insertion loss(typical) |
dB |
≤ 0.3 |
≤ 0.2 |
≤ 0.3 |
≤ 0.2 |
≤ 0.3 |
≤ 0.2 |
≤ 0.2 |
≤ 0.3 |
≤ 0.2 |
≤ 0.2 |
≤ 0.3 |
≤ 0.3 |
Return loss |
dB |
≥ 45 |
≥ 50 |
≥ 60 |
≥ 30 |
≥ 45 |
≥ 50 |
≥ 30 |
≥ 45 |
≥ 50 |
≥ 35 |
≥ 55 |
≥ 75 |
Operating wavelength |
nm |
1310, 1510 |
1310, 1510 |
1310, 1510 |
1310, 1510 |
||||||||
Exchangeability |
dB |
≤ 0.2 |
≤ 0.2 |
≤ 0.2 |
≤ 0.2 |
||||||||
Vibration |
dB |
≤ 0.2 |
≤ 0.2 |
≤ 0.2 |
≤ 0.2 |
||||||||
Operating temperature |
|
-40~75 |
-40~75 |
-40~75 |
-40~75 |
||||||||
Storage temperature |
|
-45~85 |
-45~85 |
-45~85 |
-45~85 |
||||||||
Cable diameter |
mm |
3.0, 2.0, 0.9 |
3.0, 2.0, 0.9 |
3.0, 2.0, 0.9 |
3.0, 2.0, 0.9 |
||||||||
Availabilities:
1.Full specifications, FC, SC, ST, LC, MTRJ, E2000, etc.
2.Simplex and Duplex assemblies available
3.Singlemode and multimode available
4.PC, UPC and APC polishing available
5.PVC and LSZH outer sheath.
6.0.9mm, 2.0mm and 3.0mm cable size.
Payment and Delievery:
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
