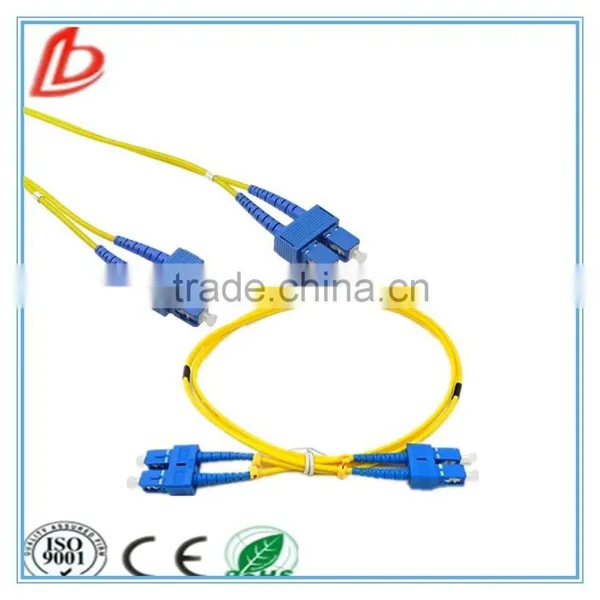

singlemode 9/125 duplex sc/upc-sc/upc optical fiber patch cord/jumper
Description:
Fiber optic patch cord is popular for many years. It uses a 2.5 mm ferrule, but some of the early ones use ceramic inside stainless steel ferrules. Its' screws on firmly, but you must make sure you have the key aligned in the slot properly before tightening. As a result of this characteristics for easy assemblies and installation.
Features:
1.Fiber optic patch cord
2.Low insertion loss,
3.High return loss
4.Good repeatability and exchangeability
Applications:
1.Communication Workshop
2.FTTH
3.Local Area Network
4.Fiber Sensor
5.CATV
6.Fiber Optical Communication System
Specifications:
Parameter |
Unit |
FC, SC, LC,ST fiber optic patch cord |
ST, MU |
MT-RJ, MPO |
E2000 |
||||||||
SM |
MM |
SM |
MM |
SM |
MM |
SM |
|||||||
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
||
Insertion loss(typical) |
dB |
≤ 0.3 |
≤ 0.2 |
≤ 0.3 |
≤ 0.2 |
≤ 0.3 |
≤ 0.2 |
≤ 0.2 |
≤ 0.3 |
≤ 0.2 |
≤ 0.2 |
≤ 0.3 |
≤ 0.3 |
Return loss |
dB |
≥ 45 |
≥ 50 |
≥ 60 |
≥ 30 |
≥ 45 |
≥ 50 |
≥ 30 |
≥ 45 |
≥ 50 |
≥ 35 |
≥ 55 |
≥ 75 |
Operating wavelength |
nm |
1310, 1510 |
1310, 1510 |
1310, 1510 |
1310, 1510 |
||||||||
Exchangeability |
dB |
≤ 0.2 |
≤ 0.2 |
≤ 0.2 |
≤ 0.2 |
||||||||
Vibration |
dB |
≤ 0.2 |
≤ 0.2 |
≤ 0.2 |
≤ 0.2 |
||||||||
Operating temperature |
|
-40~75 |
-40~75 |
-40~75 |
-40~75 |
||||||||
Storage temperature |
|
-45~85 |
-45~85 |
-45~85 |
-45~85 |
||||||||
Cable diameter |
mm |
3.0, 2.0, 0.9 |
3.0, 2.0, 0.9 |
3.0, 2.0, 0.9 |
3.0, 2.0, 0.9 |
||||||||
Availabilities:
1.Full specifications, FC, SC, ST, LC, MTRJ, E2000, etc.
2.Simplex and Duplex assemblies available
3.Singlemode and multimode available
4.PC, UPC and APC polishing available
5.PVC and LSZH outer sheath.
pictures:
Company information:
Payment and Delievery:
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
