SC apc fiber optic fast connector, FTTH optical fiber fast SC connector
Specifications
1.SC/APC Optical Fast Connector
2.No epoxy, no polishing, no splicing, no heating
3.Field installable, cost effective, user friendly
Features
1.No special tools needed when installed;
2.Can be made on-site without splicing connectors ;
3.Only 30 seconds needed to learn the process of installation and making;
4.Can be intalled and maked repeatedly thus avoiding loss
Desciption
Item |
Parameter |
Cable Scope |
3.0 x 2.0 mm Bow-type Drop Cable |
Fiber Diameter |
125μm ( 652 & 657 ) |
Coating Diameter |
250μm |
Mode |
SM |
Operation Time |
about 15s(exclude fiber presetting) |
Insertion Loss |
≤ 0.25dB(1310nm & 1550nm) |
Return Loss |
≤ -45dB |
Success Rate |
>98% |
Reusable Times |
>10 times |
Tensile Strength |
>5 N |
Tighten Strength of Coating |
>10 N |
Temperature |
-40~+85°C |
On-line Tensile Strength Test (20 N) |
IL ≤ 0.3dB |
Mechanical Durability(500 times) |
IL ≤ 0.3dB |
Drop Test(4m concrete floor, once each direction, three times total) |
IL ≤ 0.3dB |

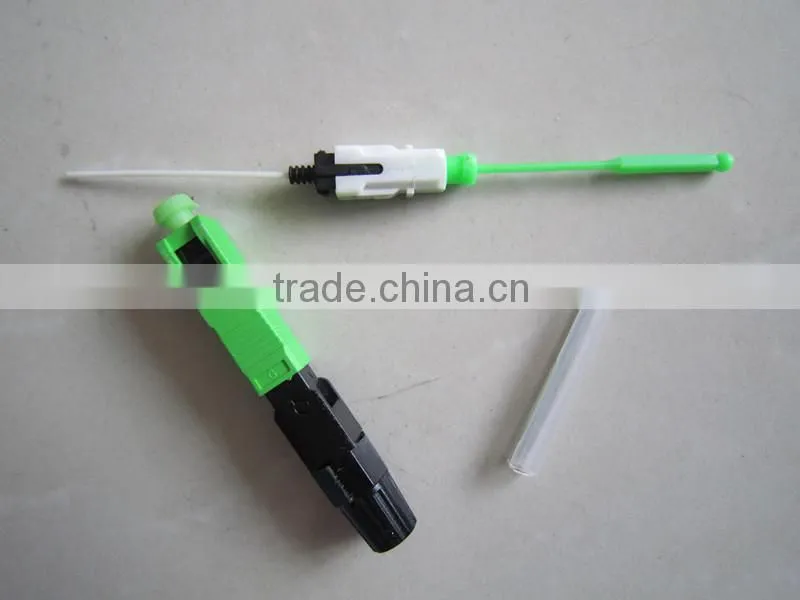

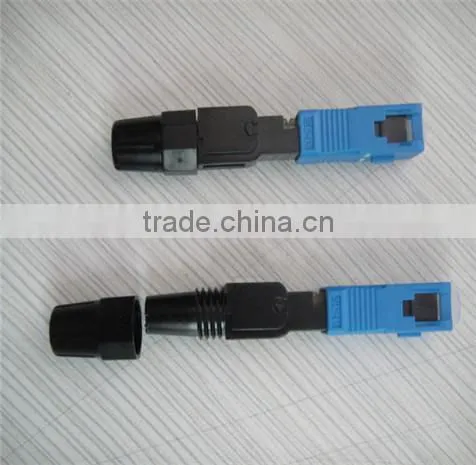

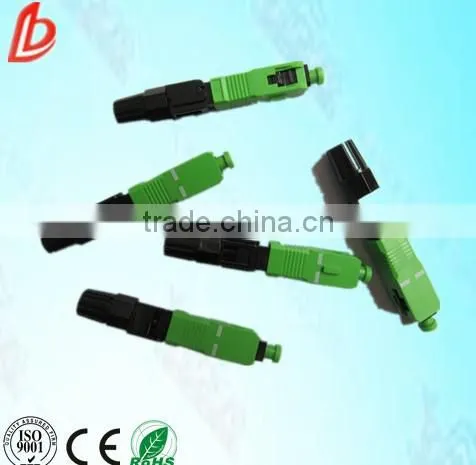

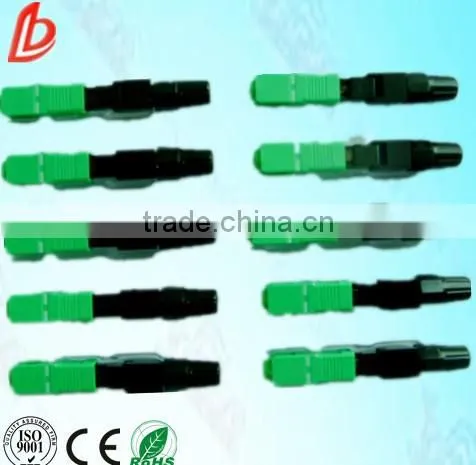

Pictures
Payment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
